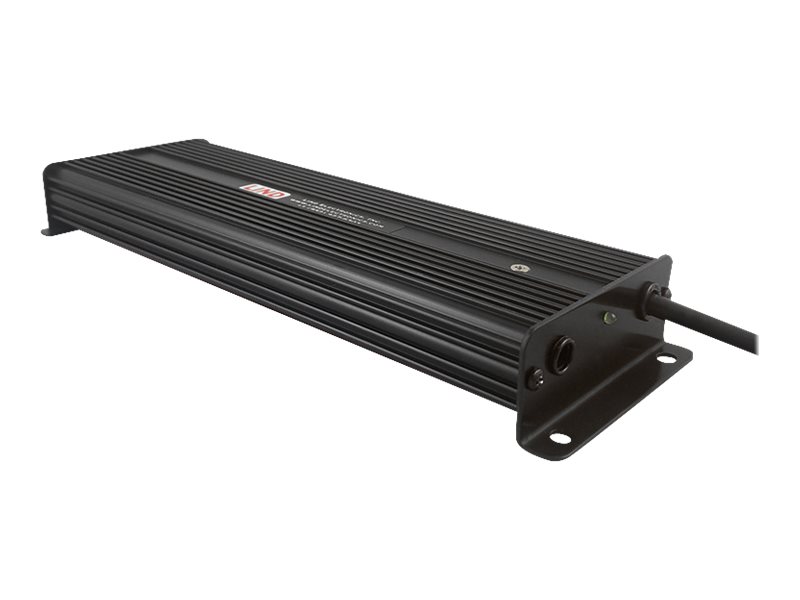

Power converter - DC 20 - 60 V - output connectors: 2 - for Panasonic Toughbook 18, 19, 30, C1, C2, F8, H1, H2, M33, T7, T8, U1, W5, W7, W8, Y5, Y7
| Main Specifications | |
|---|---|
| Product Description | Lind PA1555I-4092 - power converter |
| Device Type | Power converter - external |
| Weight | 2.29 lbs |
| Input Voltage | DC 20 - 60 V |
| Output Voltage | DC 15 V |
| Output connectors | 1 x power DC jack 5.5 mm (ID: 2.5 mm) ¦ 1 x power DC jack 2.1 mm |
| Dimensions (WxDxH) | 9.2 in x 3 in x 1.2 in |
| Designed For | Panasonic Toughbook 18, 19, 29, 30, 35, 37, 50, 51, 61, 62, 63, C1, C2, F8, H1, H2, M32, M33, R1, T1, T2, T4, T5, T7, T8, U1, W2, W4, W5, W7, W8, Y2, Y4, Y5, Y7 |
| General | |
| Device Type | Power converter - external |
| Miscellaneous | |
| Cables Included | DC output cable - external - 6 ft ¦ DC input cable - external - 6 ft |
| Features | Isolated |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 104 °F |
| Power Device | |
| Input Voltage | DC 20 - 60 V |
| Power Output Connectors Details | 1 x power DC jack 5.5 mm (ID: 2.5 mm) ¦ 1 x power DC jack 2.1 mm |
| Output Voltage | DC 15 V |
| Max Electric Current | 5.5 A |
| Dimensions & Weight | |
| Width | 9.2 in |
| Depth | 3 in |
| Height | 1.2 in |
| Weight | 2.29 lbs |
| Compatibility Information | |
| Designed For | Panasonic Toughbook 18 Tablet PC version, 18 Touchscreen PC version, 18 Touchscreen PC version SEMPRA ENERGY ONLY, 18 Touchscreen PC version Tennant Only, 19, 29, 29 Air Force Only, 29 Arvada Police Only, 29 Bio Veris Only, 29 Fairfax Only, 29 Hanscom AFB Only, 29 Hartford Only, 29 San Antonio PD Only, 29 STS Only, 29 Verizon Only, 30, 35, 37, 50, 51, 61, 62, 63, C1, C2, F8, H1 Field, H1 Health, H2, M32, M33, R1, T1, T2, T4, T5, T7, T8, U1, U1 Essential, U1 Ultra, W2, W4, W5, W7, W8, Y2, Y4, Y5, Y7 |
