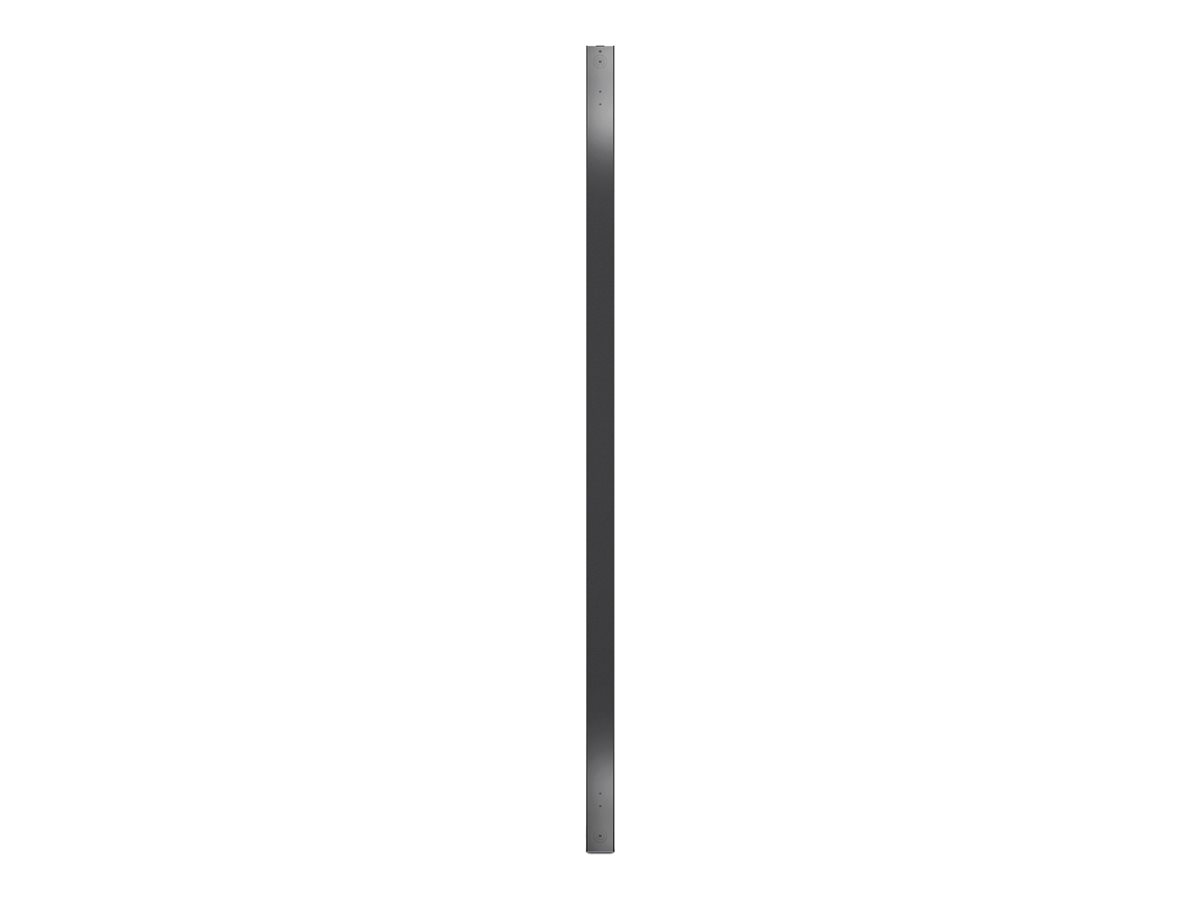

Power distribution unit (rack-mountable) - AC 200/208/230 V - 4992 VA - input: NEMA L6-30P - output connectors: 24 (4 x IEC 60320 C19, 20 x IEC 60320 C13) - 10 ft cord - black
| Main Specifications | |
|---|---|
| Product Description | APC AP7541 Zero U Basic Rack - power distribution unit - 4992 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Weight | 12.28 lbs |
| Input Voltage | AC 200/208/230 V |
| Power Capacity | 4992 VA |
| Input Connectors | Power NEMA L6-30P |
| Output connectors | 4 x power IEC 60320 C19 ¦ 20 x power IEC 60320 C13 |
| Color | Black |
| Dimensions (WxDxH) | 2.2 in x 1.7 in x 63.7 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Rack Mounting Kit | Included |
| Features | Overload protection |
| Compliant Standards | UL, cUL, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-03, REACH |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 95% |
| Power Device | |
| Input Voltage | AC 200/208/230 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA L6-30P |
| Power Output Connectors Details | 4 x power IEC 60320 C19 ¦ 20 x power IEC 60320 C13 |
| Max Electric Current | 24 A |
| Power Capacity | 4992 VA |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 1.7 in |
| Height | 63.7 in |
| Weight | 12.28 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6 in |
| Shipping Depth | 5 in |
| Shipping Height | 84 in |
| Shipping Weight | 14.29 lbs |
