Docking station - Thunderbolt 3 - HDMI - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Cable Matters - docking station - Thunderbolt 3 - HDMI - 1GbE |
| Product Type | Docking station |
| Docking Interface | Thunderbolt 3 |
| Video Interfaces | HDMI |
| Dimensions (WxDxH) | 3.4 in x 9.1 in x 1.1 in |
| Weight | 15.91 oz |
| Color | Silver |
| Networking | Gigabit Ethernet |
| Power | Power adapter DC 20 V |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | Docking station |
| Width | 3.4 in |
| Depth | 9.1 in |
| Height | 1.1 in |
| Weight | 15.91 oz |
| Enclosure Color | Silver |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SDXC UHS-I Memory Card |
| Interfaces | 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x SuperSpeed USB 3.0 with Battery Charging 1.2 - 9 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x Thunderbolt 3 - 24 pin USB-C ¦ 1 x headset / headphones / microphone - mini-phone 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

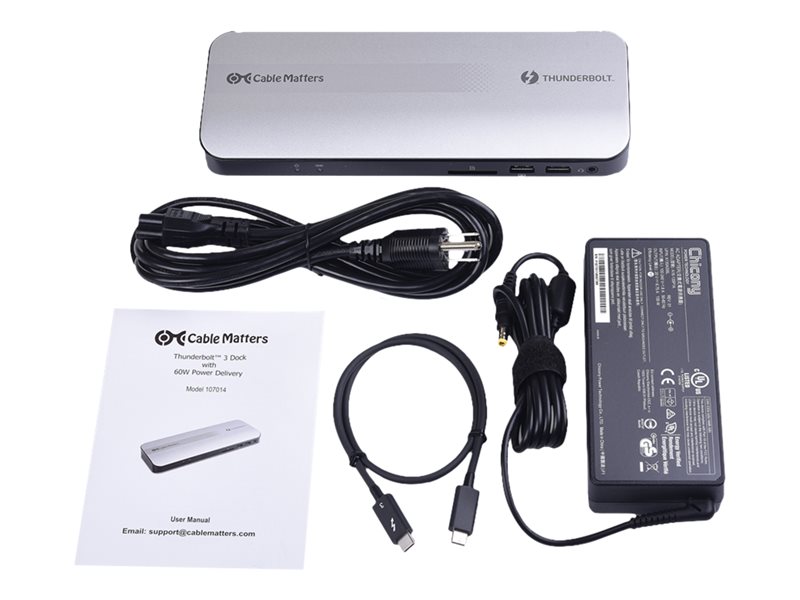

| Cables Included | 1 x Thunderbolt 3 / USB-C cable - external - 1.6 ft |
| Features | 2 LED indicators, 4K Ultra HD, MAC address pass-through, 60W power delivery |
| Compliant Standards | FCC |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Voltage Required | DC 20 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 3840 x 2160 - 60 Hz (HDMI only) |
| System Requirements | |
| OS Required | Windows 10, Apple macOS 10.12 or later |
