Hard drive array - 12 bays (SATA-600 / SAS-3) - SAS 12Gb/s (external) - rack-mountable - 2U
| Main Specifications | |
|---|---|
| Product Description | QNAP TL-R1220Sep-RP - hard drive array |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Interface | SAS 12Gb/s |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Supported Drives | SATA-600 / SAS-3 |
| Localization | United States |
| Built-in Devices | LED panel |
| Storage Controller | SAS-3 (SATA 6Gb/s / SAS 12Gb/s) - RAID JBOD |
| Hard Drive | No HDD |
| Power | AC 120/230 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 19 in x 16.7 in x 3.5 in |
| Weight | 20.26 lbs |
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" shared |
| Interfaces | 4 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) |
| Miscellaneous | |
| Features | Built-in 2 cooling fans, audible alarm, S.M.A.R.T. support |

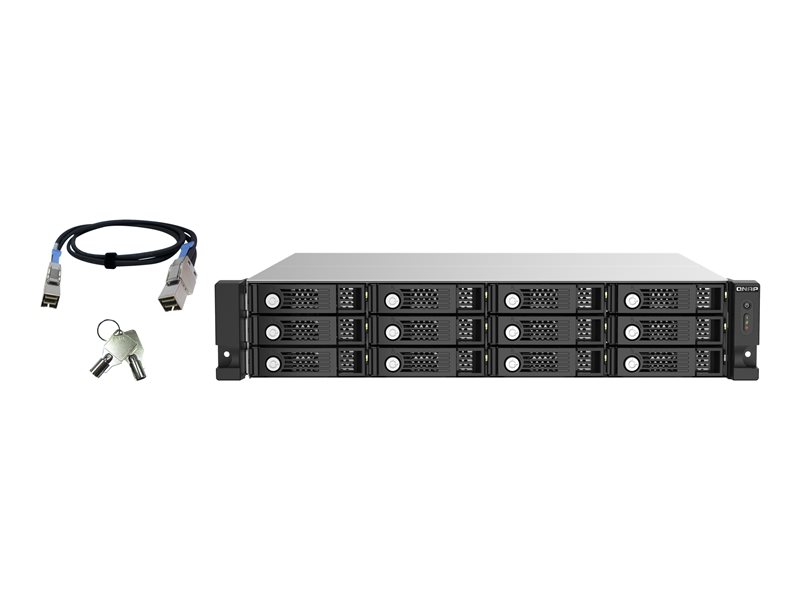

| Cables Included | 1 x SFF-8644 to SFF-8644 SAS cable |
| Compliant Standards | ISO 7779 |
| Included Accessories | Key, 36 flat head screws (for 2.5" HDD), 48 x flat head screws (for 3.5" HDD) |
| Storage | |
| HDD Array External Interface | SAS 12Gb/s |
| Power | |
| Power Device | 2 x internal power supply |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V |
| Power Provided | 300 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Sound Emission | 33.9 dBA |
| Storage Controller | |
| Type | SAS-3 |
| Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | JBOD |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 16.7 in |
| Height | 3.5 in |
| Weight | 20.26 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 30.93 lbs |
| Chassis | |
| Built-in Devices | LED panel |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SATA-600 / SAS-3 |
