Room manager - wireless, wired - 802.11a/b/g/n/ac, Bluetooth - 2.4 Ghz, 5 GHz - 10/100 Ethernet - smooth black
| Main Specifications | |
|---|---|

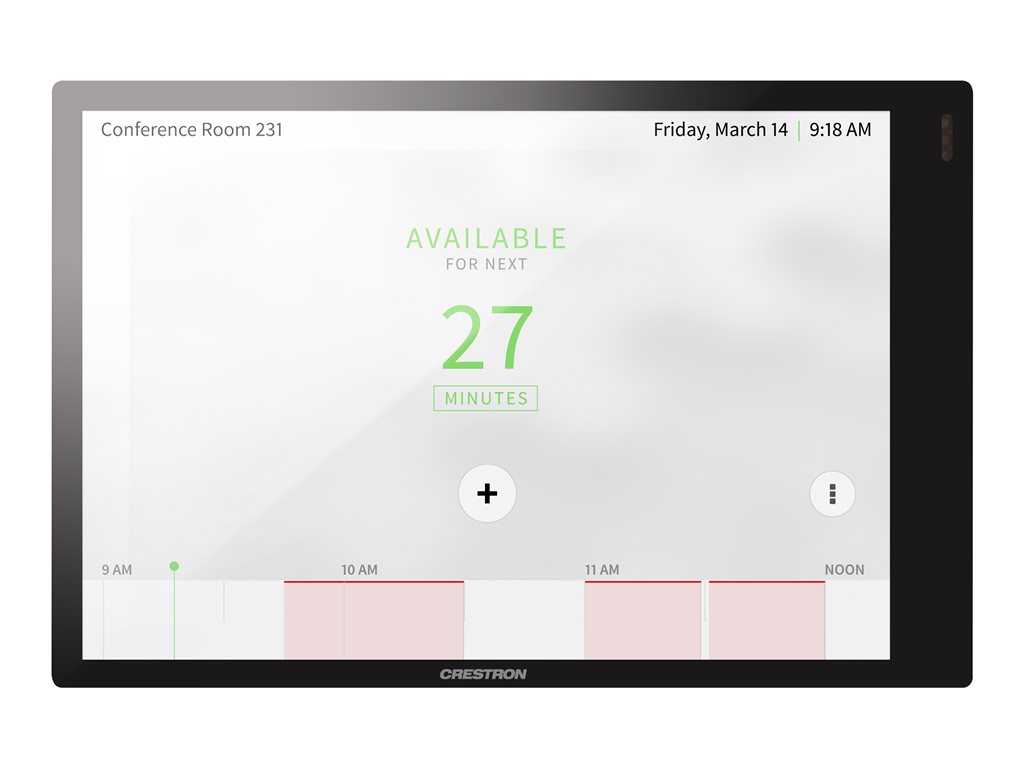

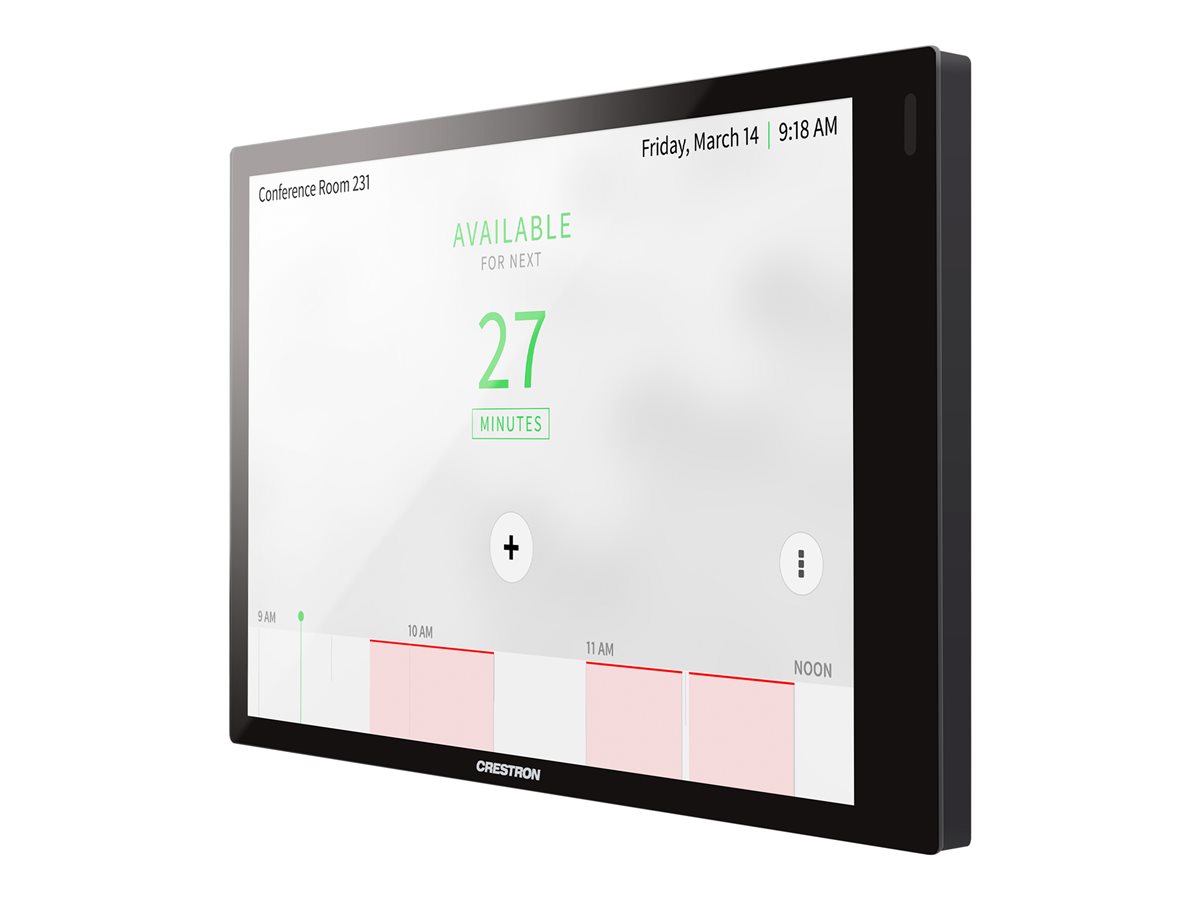

| Product Description | Crestron Room Scheduling Touch Screen TSS-770-B-S-LB KIT - room manager - 802.11a/b/g/n/ac, Bluetooth - smooth black |
| Product Type | Room manager |
| Integrated Sensors | Proximity sensor |
| Integrated Components | Speaker, Bluetooth proximity detection beacon |
| Power Source | PoE |
| Package Content | TSW-770-LB-B-S light bar |
| Connectivity | Wireless, wired - 802.11a/b/g/n/ac, Bluetooth - 10/100 Ethernet |
| Frequency Band | 2.4 Ghz, 5 GHz |
| Input Type | Touch screen |
| Display | 7" - LED - color |
| Color | Smooth black |
| Dimensions (WxDxH) | 7.3 in x 2.2 in x 4.2 in |
| General | |
| Product Type | Room manager |
| Integrated Components | Speaker, Bluetooth proximity detection beacon |
| Integrated Sensors | Proximity sensor |
| Power Source | PoE |
| Package Content | TSW-770-LB-B-S light bar |
| Connectivity Technology | Wireless, wired - Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth |
| Max Range Open Space | 49 ft |
| Frequency Band | 2.4 Ghz, 5 GHz |
| Display | 7" - LED - color |
| Display Resolution | 1280 x 800 pixels |
| Interfaces Details | LAN/power ¦ 2 x USB 2.0 |
| Features | Wall mountable, auto brightness control, capacitive touch screen, reset button, surface mountable, PoE+, cloud managed, auto-negotiation, DHCP support, power over Ethernet (PoE), SSH support, SNMP support, IPv6 support, IPv4 support, half duplex mode, full duplex mode, PoE+ |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| Product Material | Plastic |
| Color | Smooth black |
| Encryption Algorithm | SSL, TLS, 128-bit WEP, 64-bit WEP, WPA, WPA2-PSK, TKIP, AES |
| Compliant Standards | IEEE 802.1x, IEEE 802.3at, IEEE 802.3af, IC, FCC Part 15 B |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.3 in |
| Depth | 2.2 in |
| Height | 4.2 in |
| Weight | 14.11 oz |
| Control Unit | |
| Input Type | Touch screen |
