Network adapter - OCP 3.0 - QSFP28 x 1
| Main Specifications | |
|---|---|

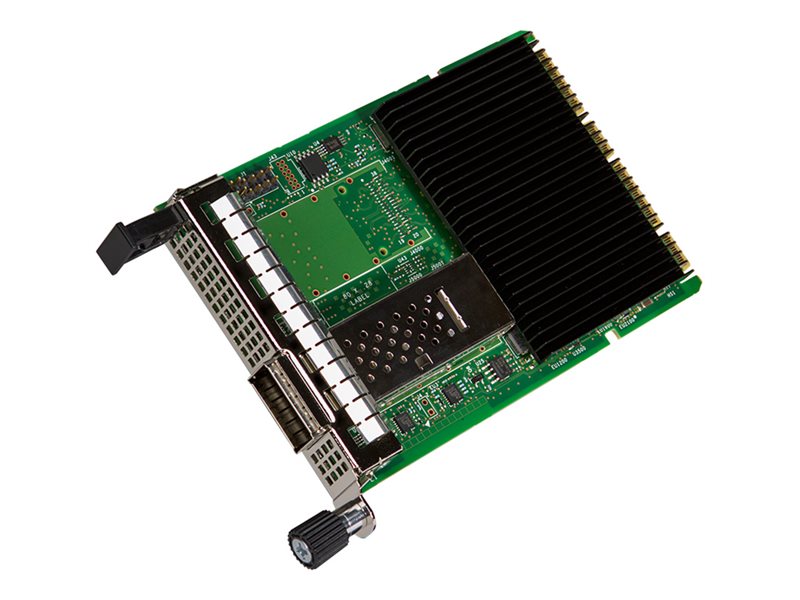

| Product Description | Intel Ethernet Network Adapter E810-CQDA1 - network adapter - OCP 3.0 - QSFP28 x 1 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| PCI Specification Revision | PCIe 3.0, PCIe 4.0 |
| Ports | QSFP28 x 1 |
| Data Link Protocol | 10GbE, 25GbE, 50GbE, 100GbE |
| Network / Transport Protocol | iSCSI, NFS, iWARP |
| Compliant Standards | IEEE 802.1p, OCP 3.0 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| PCI Specification Revision | PCIe 3.0, PCIe 4.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Gb Ethernet - QSFP28 |
| Miscellaneous | |
| Compliant Standards | FCC, UL, VCCI, BSMI, RCM, KCC, Directive 2011/65/EU, RoHS |
| Networking | |
| Ports | QSFP28 x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet |
| Network / Transport Protocol | iSCSI, NFS, iWARP |
| Remote Management Protocol | SNMP, RMON |
| Features | RDMA support, RoCE v2, MSI-X, DSCP support, intelligent offloads, DDIO Technology, SR-IOV, VMDq, FPP, On-chip QoS and Traffic Management |
| Compliant Standards | IEEE 802.1p, OCP 3.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 90% (non-condensing) |
