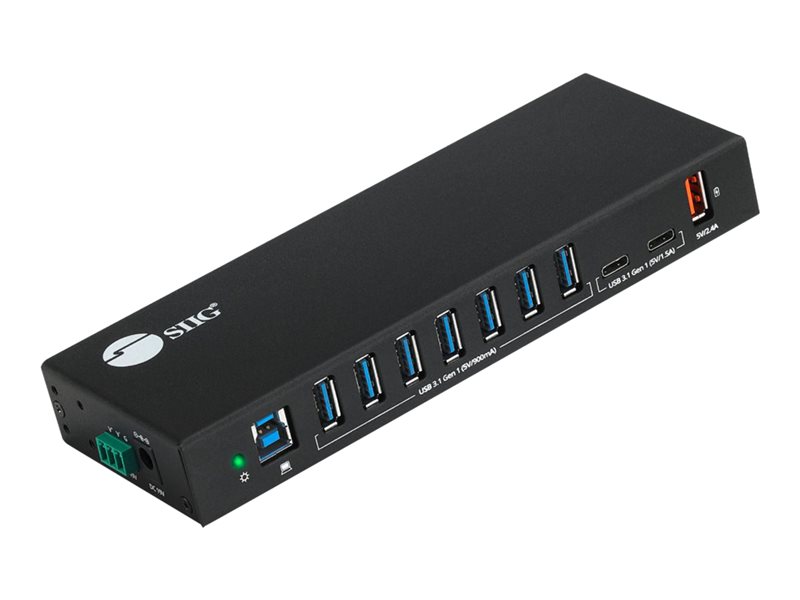

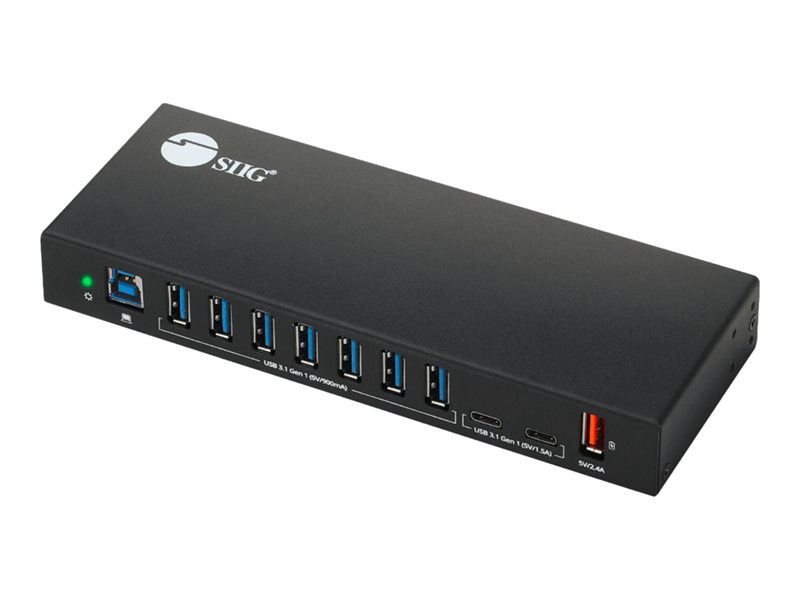

Hub - 7 x USB 3.1 Gen 1 + 2 x USB-C 3.1 Gen 1 - desktop, DIN rail mountable, wall-mountable
| Main Specifications | |
|---|---|
| Product Description | SIIG 10-Port Industrial USB 3.1 Gen 1 Hub with Dual USB-C & Charging - hub - 9 ports |
| Device Type | Hub - 9 ports |
| Subtype | USB |
| Ports | 7 x USB 3.1 Gen 1 + 2 x USB-C 3.1 Gen 1 |
| Features | Surge protection, over-current protection, USB charger, aluminum housing |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.1 Gen 1 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 7.2 in x 2.6 in x 1 in |
| Weight | 13.26 oz |
| Color | Black |
| System Requirements | Apple MacOS X 10.6 or later, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits) |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Hub - 9 ports |

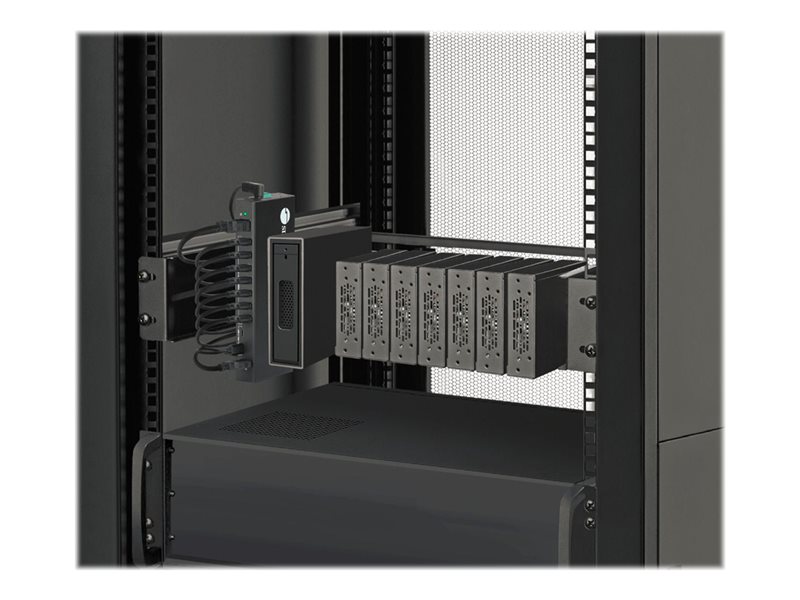

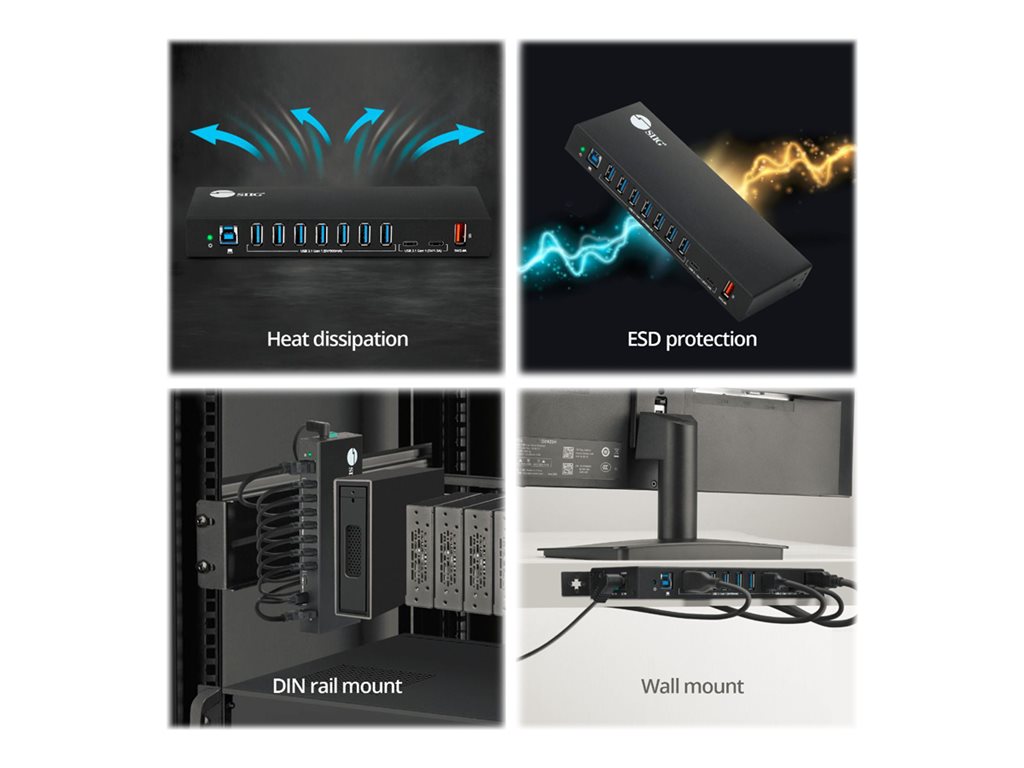

| Enclosure Type | Desktop, DIN rail mountable, wall-mountable |
| Subtype | USB |
| Ports | 7 x USB 3.1 Gen 1 + 2 x USB-C 3.1 Gen 1 |
| Features | Surge protection, over-current protection, USB charger, aluminum housing |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.1 Gen 1 |
| Processor | 1 x VIA VL813 |
| Status Indicators | Power |
| Expansion / Connectivity | |
| Interfaces | 7 x USB 3.2 Gen 1 output Type A ¦ 2 x USB 3.2 Gen 1 output Type C ¦ 1 x USB (power only) Type A ¦ 1 x USB 3.2 Gen 1 input Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black |
| Included Accessories | 3-pin power terminal block, DIN-rail mounting kit, wall mounting kit |
| Cables Included | 1 x USB 3.1 Type A to Type B cable - 6.6 ft |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Device | External power adapter |
| Power Provided | 19 V - 3.42 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Apple MacOS X 10.6 or later, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | 14 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 7.2 in |
| Depth | 2.6 in |
| Height | 1 in |
| Weight | 13.26 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.6 in |
| Shipping Depth | 7 in |
| Shipping Height | 2.4 in |
| Shipping Weight | 32.94 oz |
