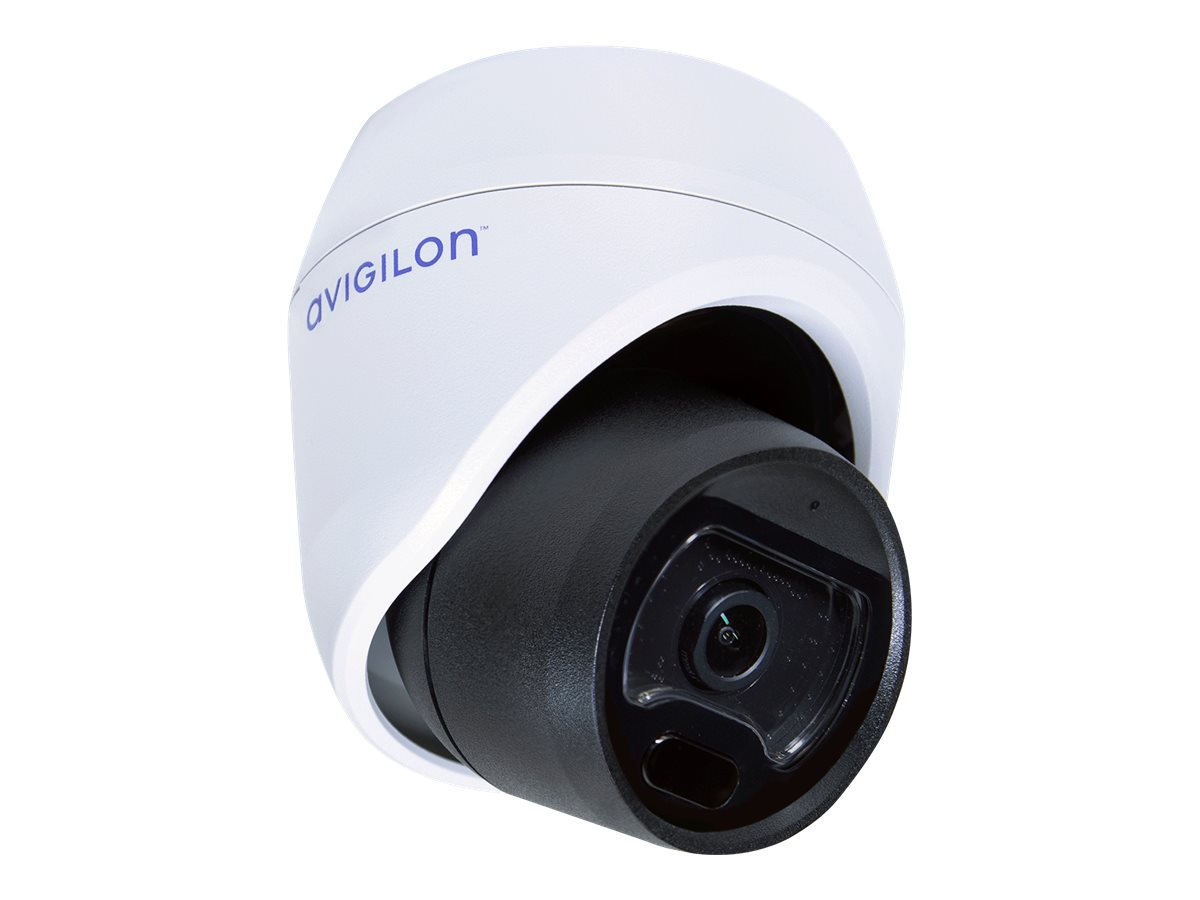

Network surveillance camera - dome - outdoor - weather resistant / impact resistant - color (Day&Night) - 2 MP - 1920 x 1080 - fixed focal - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 0
| Main Specifications | |
|---|---|
| Product Description | Avigilon H5M - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome - outdoor - weather resistant / impact resistant |
| Camera Mount Type | Surface mount |
| Dimensions (WxDxH) | 3.9 in x 3.9 in x 4.5 in |
| Weight | 12.52 oz |
| Color | RAL 9002 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | PS CMOS - 1/2.8" - 2 MP |
| Minimum Illumination | 0.01 lux - color ¦ 0.005 lux - B&W - F1.2 ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.2 |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | 0 to 90 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 0 |
| Features | Wide Dynamic Range (WDR), High Definition Stream Management (HDSM), 3D Noise Reduction Technology, 850nm illuminator, Unusual Activity Detection, tamper-detection, flicker control adjustable (50Hz/60Hz), auto white balance, manual white balance, Backlight Compensation (BLC), 64 privacy zones, ONVIF (Profile S) support, ONVIF (Profile T) support, password protection, HTTPs encryption, digest authentication, WS authentication, user access log, 802.1x authentication, aluminum alloy/polycarbonate housing, manual 360° rotation, LightCatcher technology, automatic electronic shutter, multi-streaming, SmartCodec technology |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -22 °F - 131 °F; 0 - 95% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Camera Mount Type | Surface mount |
| Connectivity Technology | Wired |
| Width | 3.9 in |
| Depth | 3.9 in |
| Height | 4.5 in |
| Weight | 12.52 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3af Class 0, UL, cUL, RoHS, RCM, EAC, KC, BIS, UKCA, NOM, UL 62368-1, CSA 62368-1, IEC/EN 62368-1, IEC 62471, IEC 60529 IP66, IEC/EN 62262 IK08, FCC Part 15 Subpart B Class B, ICES-003 Class B, IC, EN 55032 Class B, EN 61000-6-3, EN 61000-3-3, EN 61000-3-2, EN55024, EN 61000-6-1 |
| Color | RAL 9002 |
| Power | |
| Power Requirements | PoE Class 0 |
| Power Device | 8 watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - weather resistant / impact resistant |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Exposure Range | 1/7.5 sec - 1/8000 sec |
| Minimum Illumination | 0.01 lux - color ¦ 0.005 lux - B&W - F1.2 ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 49 ft |
| Digital Video Capture Resolution | 1920 x 1080, 1280 x 960, 1280 x 1024, 1280 x 720 |
| Frame Rate (max) | 30 frames per second |
| Features | Wide Dynamic Range (WDR), High Definition Stream Management (HDSM), 3D Noise Reduction Technology, 850nm illuminator, Unusual Activity Detection, tamper-detection, flicker control adjustable (50Hz/60Hz), auto white balance, manual white balance, Backlight Compensation (BLC), 64 privacy zones, ONVIF (Profile S) support, ONVIF (Profile T) support, password protection, HTTPs encryption, digest authentication, WS authentication, user access log, 802.1x authentication, aluminum alloy/polycarbonate housing, manual 360° rotation, LightCatcher technology, automatic electronic shutter, multi-streaming, SmartCodec technology |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.2 |
| Horizontal Field of View (degree) | 72 - 117 |
| Vertical Field of View (degree) | 58 - 61 |
| Image Sensor | |
| Type | 2 MP PS CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP/IP, IGMPv2, ICMP, DHCP, Zeroconf, ARP, HSTS, SNMP 2c, SNMP 3 |
| Panning | |
| Range (degree) | 360 |
| Tilting | |
| Range (degree) | 0 to 90 |
