Wi-Fi system - (2 routers) - mesh 1GbE - Wi-Fi 5 - Dual Band - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEW-832MDR2K - Wi-Fi system - Wi-Fi 5 - desktop - TAA Compliant |
| Device Type | Wi-Fi system - mesh |
| Enclosure Type | Desktop |
| Wi-Fi System Components | 2 routers |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 867 Mbps |
| Performance | Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP, DHCPv6, HTTP, HTTPs |
| Routing Protocol | Static IP routing |
| Features | NAT support, IPv6 support, WMM support, Samba support, port forwarding, reset button, MU-MIMO technology, beamforming technology, band steering, EasyMesh |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 3.7 in x 3.7 in x 2 in |
| Weight | 4.09 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Wi-Fi system - mesh |
| Wi-Fi System Components | 2 routers |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 867 Mbps |
| Performance | Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP, DHCPv6, HTTP, HTTPs |
| Routing Protocol | Static IP routing |
| Encryption Algorithm | AES, WPA-PSK, WPA2-PSK |
| Authentication Method | Radio Service Set ID (SSID) |
| Wi-Fi Rating | AC1200 |
| Mesh Networking | Yes |
| Features | NAT support, IPv6 support, WMM support, Samba support, port forwarding, reset button, MU-MIMO technology, beamforming technology, band steering, EasyMesh |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac |
| Expansion / Connectivity | |

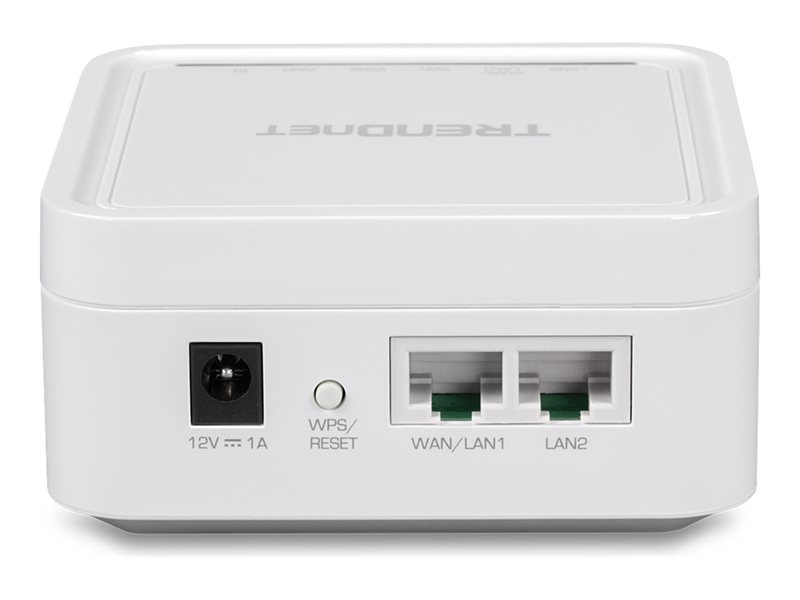

| Interfaces | WAN / LAN: 1 x 1000Base-T - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Wall mounting kit |
| Cables Included | 1 x network cable - 5 ft |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 4.63 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.7 in |
| Depth | 3.7 in |
| Height | 2 in |
| Weight | 4.09 oz |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Gain Level | 4.2 dBi |
| Line Properties | |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM |
