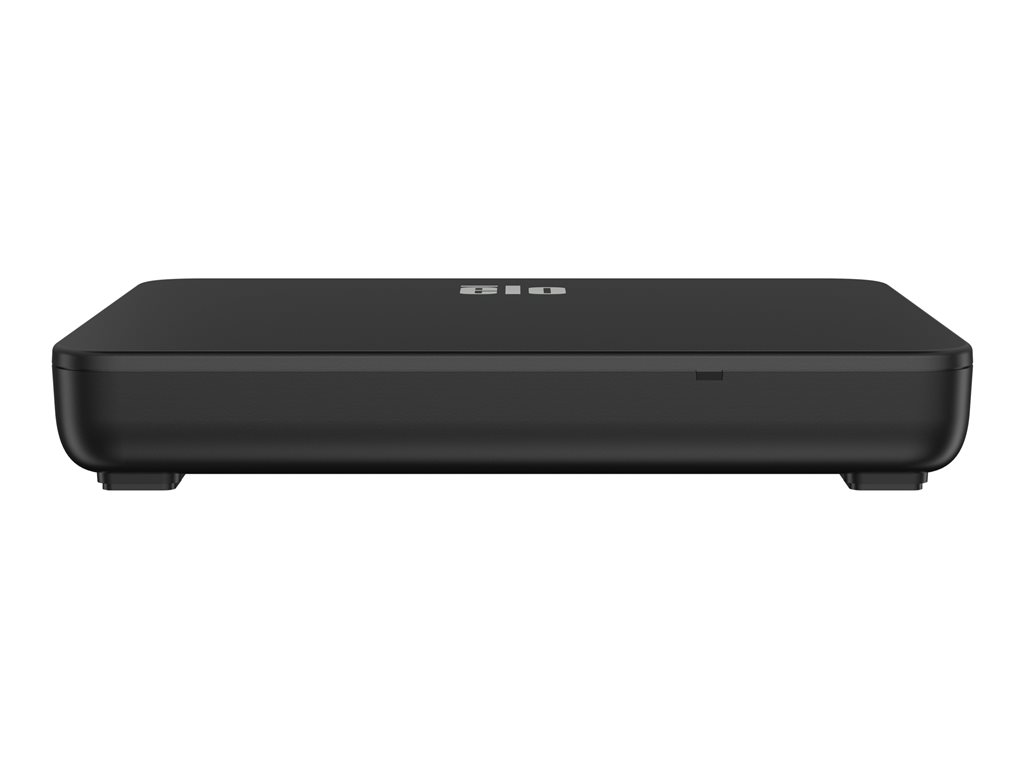

Docking station - USB-C - 150 Watt - for Elo M50, M60, M60C
| Main Specifications | |
|---|---|
| Product Description | Elo EM10 Expansion Module - docking station - USB-C |
| Product Type | Docking station |
| Docking Interface | USB-C |
| Dimensions (WxDxH) | 7.3 in x 1.1 in x 5.8 in |
| Weight | 15.87 oz |
| Color | Black |
| Power | Power adapter 150 Watt Power Provided |
| Manufacturer Warranty | 1-year warranty |
| Designed For | Elo M50, M60, M60C |
| General | |
| Product Type | Docking station |
| Width | 7.3 in |
| Depth | 1.1 in |
| Height | 5.8 in |
| Weight | 15.87 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Interfaces | 4 x SuperSpeed USB 3.0 ¦ 1 x PoweredUSB (24 V) - 8 pin USB PlusPower (24 V) ¦ 1 x USB-C ¦ 1 x USB-C / DisplayPort ¦ 1 x network |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - external - 6 ft |
| Included Accessories | 6 x tie wraps, 2 x M4 screws |
| Compliant Standards | FCC Class B certified, UL, VCCI, cUL, CB, IC, China RoHS, RCM |
| Power | |
| Power Device | Power adapter |
| Power Provided | 150 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.3 in |
| Shipping Depth | 5.5 in |
| Shipping Height | 6.9 in |
| Shipping Weight | 3.31 lbs |
| Compatibility Information | |
| Designed For | Elo M50, M60, M60C |
