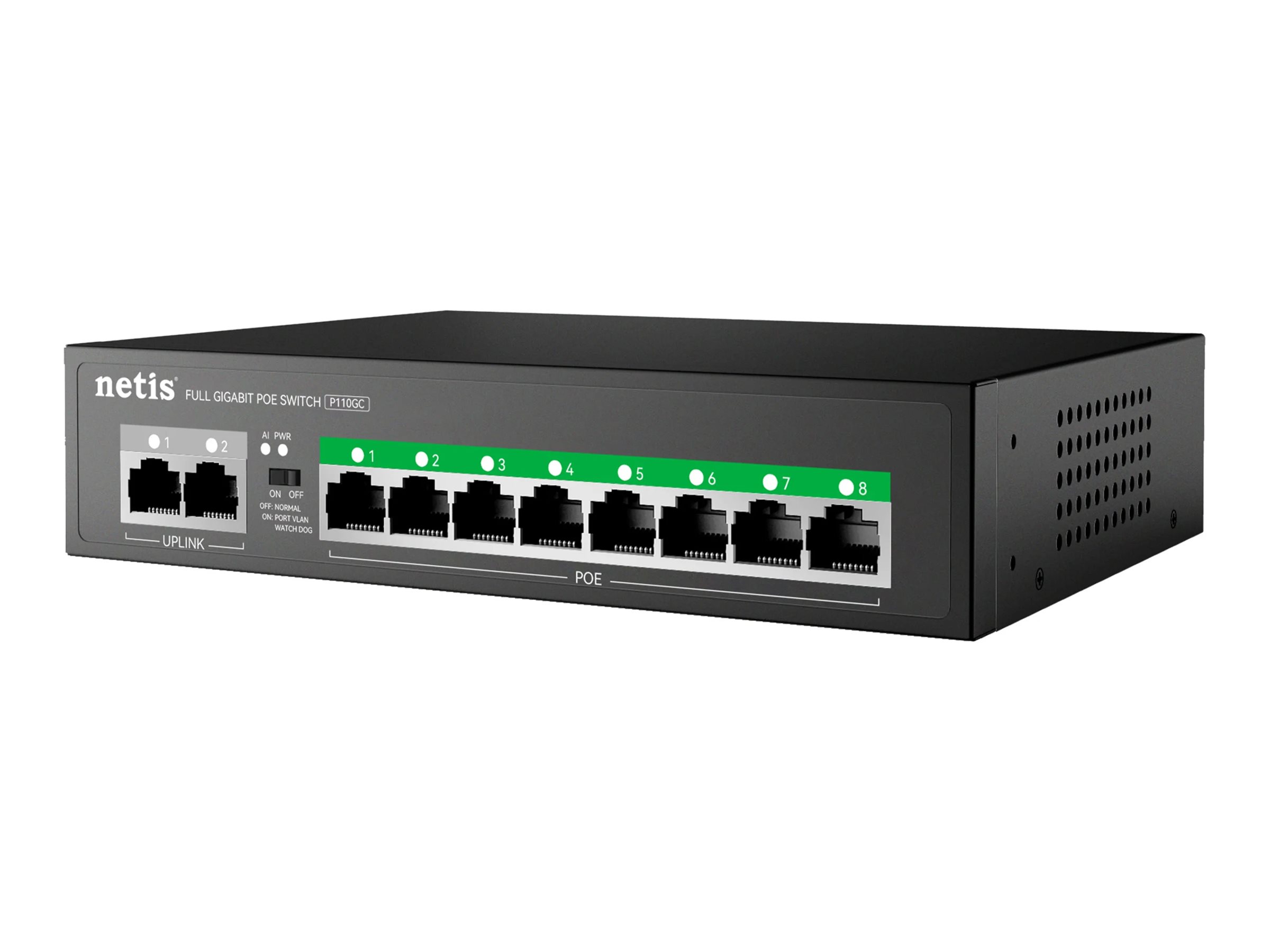

Switch - unmanaged - 8 x 10/100 (PoE) + 2 x 10/100 (uplink) - desktop, wall-mountable - PoE (120 W)
| Main Specifications | |
|---|---|
| Product Description | Netis P110GC - switch - 10 ports - unmanaged |
| Device Type | Switch - 10 ports - unmanaged |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100 (PoE) + 2 x 10/100 (uplink) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 120 W |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 4KB |
| Features | Full duplex mode, half duplex mode, MAC address auto-aging, MAC address learning, store and forward, PoE watchdog mode, over-current protection, over-voltage protection, short circuit protection, 4KV Surge protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3x, IEEE 802.3i |
| Power | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 5.5 in x 7.5 in x 1.7 in |
| General | |
| Device Type | Switch - 10 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100 (PoE) + 2 x 10/100 (uplink) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 120 W |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 4KB |
| Features | Full duplex mode, half duplex mode, MAC address auto-aging, MAC address learning, store and forward, PoE watchdog mode, over-current protection, over-voltage protection, short circuit protection, 4KV Surge protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3x, IEEE 802.3i |
| Status Indicators | Power, LAN, link/activity, AI |
| Expansion / Connectivity | |
| Interfaces | 8 x 100Base-TX RJ-45 PoE - 30 W ¦ 2 x 100Base-TX RJ-45 uplink |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Power | |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.5 in |
| Depth | 7.5 in |
| Height | 1.7 in |
