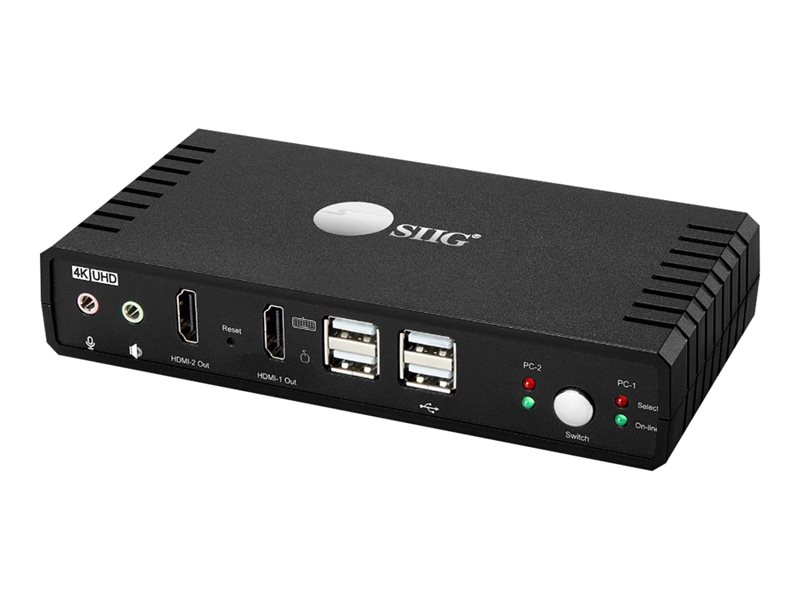

KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | SIIG 2-Port HDMI Dual-Head Console KVM Switch with USB 2.0 - KVM / audio / USB switch - 2 ports - TAA Compliant |
| Device Type | KVM / audio / USB switch - 2 ports |
| Subtype | KVM |
| Ports | 2 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Performance | Bandwidth: 18 Gbps |
| Features | Plastic housing, reset button, 4K resolution support |
| Compliant Standards | USB 2.0, HDCP 2.2 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 6.6 in x 3.3 in x 1.3 in |
| Weight | 8.15 oz |
| Color | Black |
| System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Apple macOS 10.13 or later |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM / audio / USB switch - 2 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 2 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Performance | Bandwidth: 18 Gbps |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | Plastic housing, reset button, 4K resolution support |
| Compliant Standards | USB 2.0, HDCP 2.2 |
| Status Indicators | Port status |
| Expansion / Connectivity | |
| Interfaces | 2 x HDMI input ¦ 2 x DisplayPort input ¦ 2 x keyboard (USB) / mouse (USB) Type B ¦ 2 x HDMI output console ¦ 1 x keyboard (USB) Type A console ¦ 1 x mouse (USB) Type A console ¦ 2 x USB 2.0 Type A ¦ 2 x microphone input mini-jack ¦ 2 x audio output mini-jack ¦ 1 x microphone mini-jack console ¦ 1 x audio mini-jack console |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black |

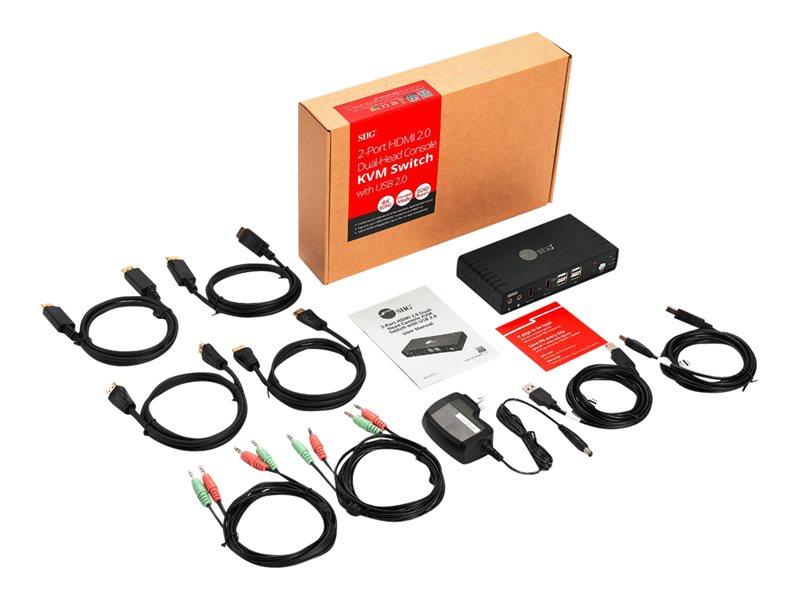

| Cables Included | 2 x audio cable ¦ 2 x USB cable ¦ 2 x DisplayPort cable ¦ 2 x HDMI cable |
| Compliant Standards | Plug and Play, FCC, RoHS, DisplayPort 1.2, HDCP 2.2 |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Power Provided | DC 5 V - 2 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Apple macOS 10.13 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 6.6 in |
| Depth | 3.3 in |
| Height | 1.3 in |
| Weight | 8.15 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.6 in |
| Shipping Depth | 8.7 in |
| Shipping Height | 2.5 in |
| Shipping Weight | 2.56 lbs |
