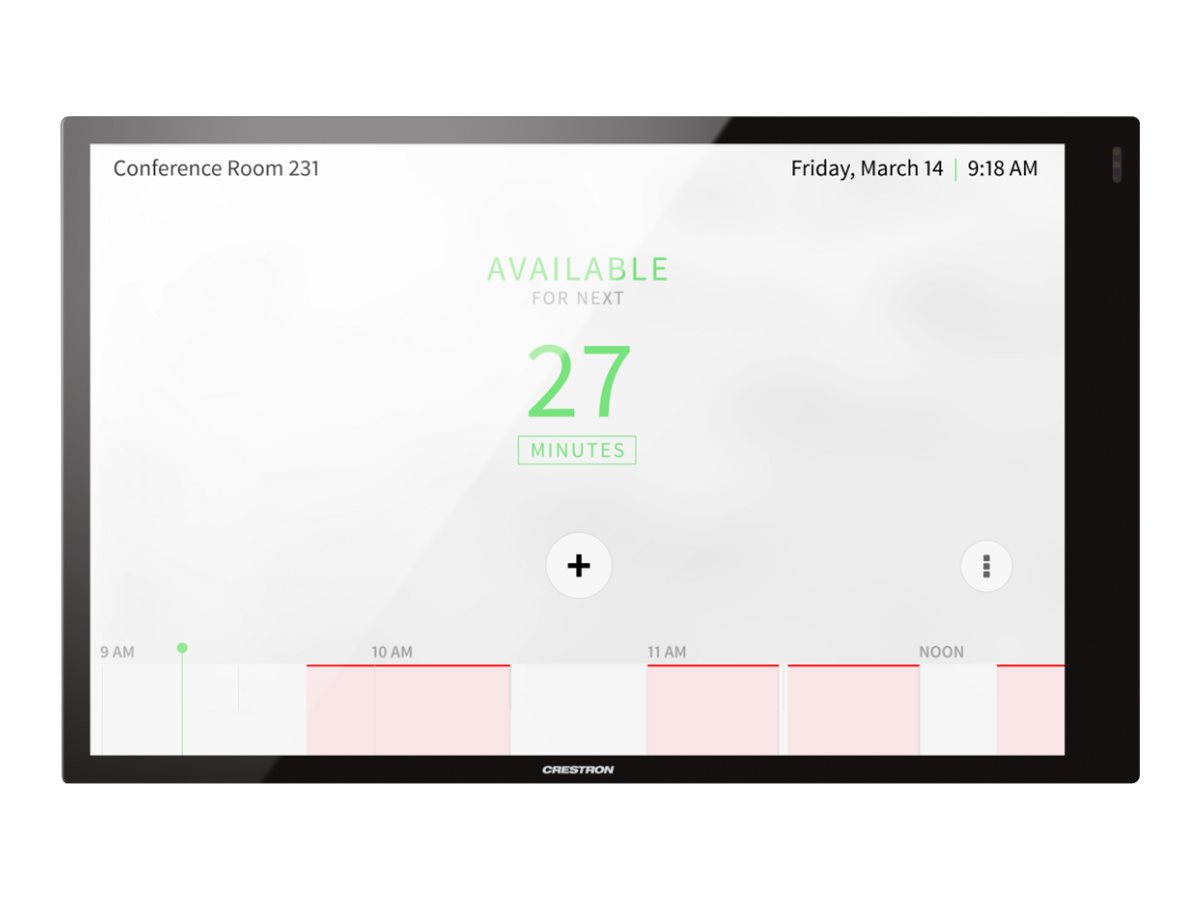

Room manager - wired, wireless - 802.11a/b/g/n/ac, Bluetooth - 2.4 Ghz, 5 GHz - 10/100 Ethernet - smooth black
| Main Specifications | |
|---|---|
| Product Description | Crestron Room Scheduling Touch Screen TSS-1070-B-S - room manager - 802.11a/b/g/n/ac, Bluetooth - smooth black |
| Product Type | Room manager |
| Power Source | PoE |
| Connectivity | Wired, wireless - 802.11a/b/g/n/ac, Bluetooth - 10/100 Ethernet |
| Frequency Band | 2.4 Ghz, 5 GHz |
| Input Type | Touch screen |
| Display | 10.1" - TFT - 24-bit color |
| Color | Smooth black |
| Dimensions (WxDxH) | 9.4 in x 2 in x 5.9 in |
| General | |
| Product Type | Room manager |
| Power Source | PoE |
| Connectivity Technology | Wired, wireless - Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth |
| Max Range Open Space | 49 ft |
| Frequency Band | 2.4 Ghz, 5 GHz |
| Display | 10.1" - TFT - 24-bit color |
| Display Resolution | 1920 x 1200 pixels |
| Interfaces Details | LAN/power ¦ 2 x USB 2.0 |
| Features | 400 cd/m2 brightness, brightness control, capacitive touch screen, edge-to-edge, reset button, 1000:1 contrast, PoE+, auto-negotiation, auto-switching, CIP support, DHCP support, full duplex mode, half duplex mode, IPv4 support, IPv6 support, SNMP support, TCP support, UDP support, SSH support |
| Miscellaneous | |
| Product Material | Plastic |
| Color | Smooth black |
| Encryption Algorithm | SSL, TLS, 64-bit WEP, 128-bit WEP, WPA, WPA2-PSK, TKIP, AES |
| Compliant Standards | IEEE 802.1x, IC, FCC Part 15 Class B, BS 4662, DIN 49073, IEEE 802.3at |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.4 in |
| Depth | 2 in |
| Height | 5.9 in |
| Weight | 25.75 oz |
| Control Unit | |
| Input Type | Touch screen |
