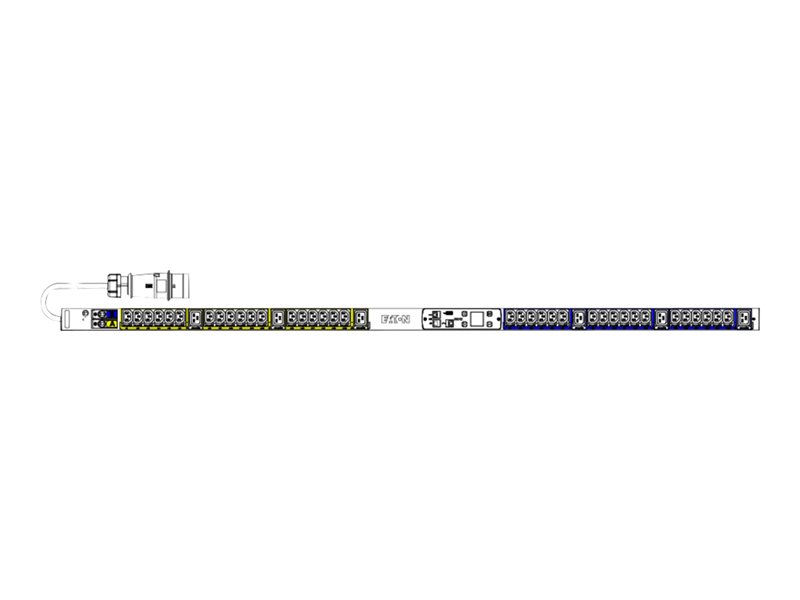

Power distribution unit (rack-mountable) - AC 200-240 V - 7 kW - 1-phase - Ethernet, serial - input: IEC 60309 332P6 - output connectors: 42 (6 x IEC 60320 C19, 36 x IEC 60320 C13) - 0U - 10 ft cord - International - remanufactured - for P/N: RACK2-UCS=, RACK2-UCS2=, RACK2-UCS2-INT=, RACK2-UCS2-INT-RF, RACK2-UCS2-INT-WS
| Main Specifications | |
|---|---|
| Product Description | Cisco RP Series - power distribution unit - 7 kW |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Localization | International |
| Input Wiring | 1-phase |
| Input Voltage | AC 200-240 V |
| Output Voltage | AC 200-240 V |
| Power Capacity | 7 kW |
| Input Connectors | 1 x power IEC 60309 332P6 |
| Output connectors | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Networking | Ethernet, serial |
| Pricing Type | Remanufactured |
| Dimensions (WxDxH) | 2 in x 2.1 in x 41.9 in |
| Designed For | P/N: RACK2-UCS, RACK2-UCS=, RACK2-UCS2, RACK2-UCS2=, RACK2-UCS2-INT, RACK2-UCS2-INT=, RACK2-UCS2-INT-RF, RACK2-UCS2-INT-WS |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Localization | International |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Ethernet) ¦ 1 x serial |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 10 ft |
| Features | Vertical orientation |
| Pricing Type | Remanufactured |
| Networking | |
| Remote Management Interface | Ethernet, serial |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Power Device | |
| Input Voltage | AC 200-240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50 - 60 Hz |
| Input Connectors | 1 x power IEC 60309 332P6 |
| Power Output Connectors Details | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Output Voltage | AC 200-240 V |
| Max Electric Current | 32 A |
| Power Capacity | 7 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 2.1 in |
| Height | 41.9 in |
| Compatibility Information | |
| Designed For | P/N: RACK2-UCS, RACK2-UCS=, RACK2-UCS2, RACK2-UCS2=, RACK2-UCS2-INT, RACK2-UCS2-INT=, RACK2-UCS2-INT-RF, RACK2-UCS2-INT-WS |
