Motherboard - micro ATX - Socket AM4 - AMD X570 Chipset - USB 3.2 Gen 2 - 2 x 10 Gigabit LAN, 2 x Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

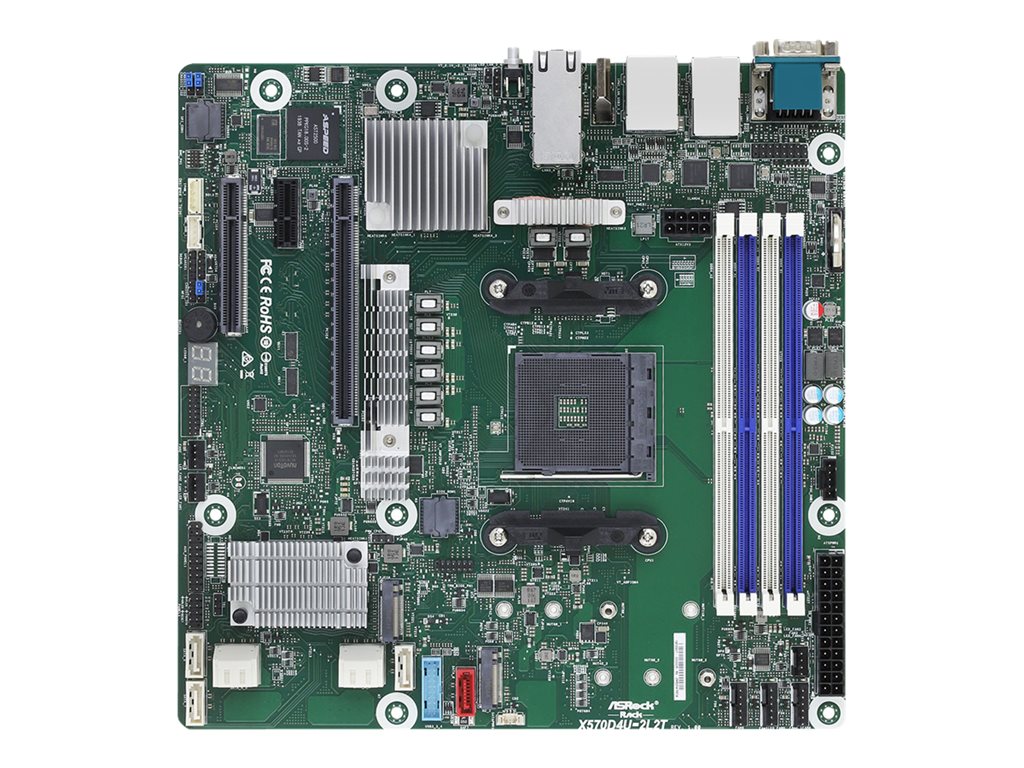

| Product Description | ASRock Rack X570D4U-2L2T - motherboard - micro ATX - Socket AM4 - AMD X570 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD X570 |
| Processor Socket | 1 x Socket AM4 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen / 2nd Generation Ryzen with Radeon Graphics) |
| Max RAM Size | 128 GB |
| RAM Supported | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
| Storage Ports | 8 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 2 |
| Graphics | ASPEED AST2500 |
| LAN | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD X570 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen / 2nd Generation Ryzen with Radeon Graphics) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 4.0 x16 (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied); PCIe 3.0 x8 mode (with 2nd Generation Ryzen CPU with Radeon Graphics)) ¦ 1 x PCIe 4.0 x1 (PCIe 3.0 x1 mode (with 2nd Generation Ryzen CPU with Radeon Graphics)) ¦ 1 x PCIe 4.0 x8 (disabled with 2nd Generation Ryzen CPU with Radeon Graphics) |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces | 2 x USB 3.2 Gen 2 ¦ 1 x HDMI ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x serial ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x management |
| Internal Interfaces | 1 x VGA - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Width | 9.6 in |
| Depth | 9.6 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ACPI 2.0 support, SMBIOS 2.8 support, IPMI 2.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Hardware Features | ASRock Rack Instant Flash, Debug LED |
| LAN | |
| Network Controller | Intel X550-AT2 / I210 |
| Network Interfaces | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2666 MHz, 3200 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
