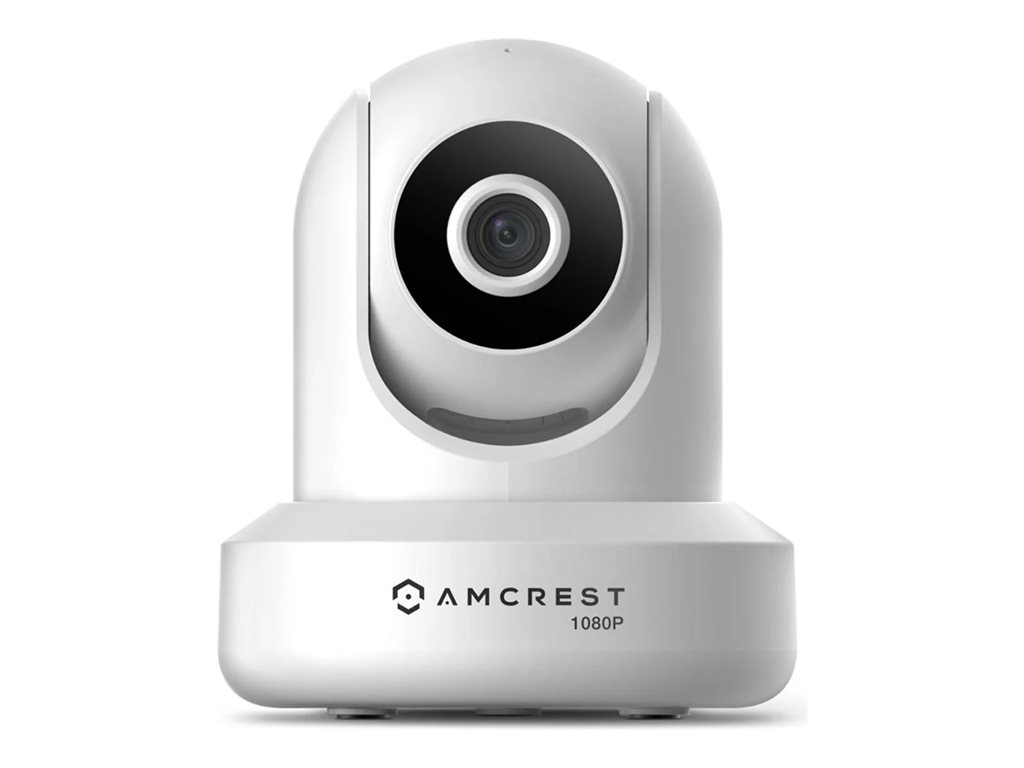

Version 3 - network surveillance camera - pan / tilt - indoor - color (Day&Night) - 2 MP - 1920 x 1080 - 1080p, 720p - M12 mount - fixed focal - audio - wireless - Wi-Fi - Ethernet 10Base-T/100Base-T - H.264B, H.265, H.264, MJPEG - DC 5 V
| Main Specifications | |
|---|---|
| Product Description | Amcrest IP2M-841W-V3 - Version 3 - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt - indoor |
| Audio | Yes: built-in microphone, built-in speaker, two-way audio capability |
| Dimensions (WxDxH) | 4 in x 4.1 in x 4.7 in |
| Weight | 35.2 oz |
| Color | White |
| Connectivity Technology | Wireless, wired |
| Camera | Color - Day&Night |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 1080p, 720p |
| Optical Sensor Type | PS CMOS - 1/2.7" - 2 MP |
| Minimum Illumination | 0.255 lux - color - F2.0 ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 4 mm |
| Lens Mounting | M12 mount |
| Lens Iris | F/2.0 |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | 0 to 90 |
| Interfaces | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet 10Base-T/100Base-T |
| Voltage | DC 5 V |
| Features | Auto ICR, Backlight Compensation (BLC), Highlight Compensation (HLC), Digital Wide Dynamic Range (D-WDR), manual white balance, auto white balance, auto gain control, manual gain control, auto tracking, Privacy mode, 3D digital noise reduction (DNR), privacy masking (up to 4 areas), 90° field of view, ONVIF support, NAS-Ready, Smartphone Monitoring |
| Environmental Parameters (operating) | 14 °F - 113 °F; 0 - 95% relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone, built-in speaker, two-way audio capability |
| Audio Formats | G.711a, G.711u, AAC |
| Connectivity Technology | Wireless, wired |
| Width | 4 in |
| Depth | 4.1 in |
| Height | 4.7 in |
| Weight | 35.2 oz |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 ¦ USB (power only) - Micro-USB Type B |
| Supported Memory Cards | microSD Card |
| Miscellaneous | |
| Color | White |
| Power | |
| Power Requirements | DC 5 V - 1.5 A |
| Power Device | 7.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 113 °F |
| Relative Humidity (operating) | 0 - 95% |
| Camera | |
| Type | Color - Day&Night - pan / tilt - indoor |
| Digital Video Format | H.264B, H.265, H.264, MJPEG |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p, 720p |
| Exposure Range | 1/3 sec - 1/30000 sec |
| Minimum Illumination | 0.255 lux - color - F2.0 ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 33 ft |
| Digital Video Capture Resolution | 1920 x 1080, 1280 x 720, 640 x 480 |
| Frame Rate (max) | 30 frames per second |
| Features | Auto ICR, Backlight Compensation (BLC), Highlight Compensation (HLC), Digital Wide Dynamic Range (D-WDR), manual white balance, auto white balance, auto gain control, manual gain control, auto tracking, Privacy mode, 3D digital noise reduction (DNR), privacy masking (up to 4 areas), 90° field of view, ONVIF support, NAS-Ready, Smartphone Monitoring |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 4 mm |
| Lens Iris | F/2.0 |
| Image Sensor | |
| Type | 2 MP PS CMOS 1/2.7" |
| Interfaces | |
| Network Interface | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet 10Base-T/100Base-T |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, TCP/IP, UDP/IP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, QOS, CGI |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 90 |
