Video/audio/infrared/USB/serial extender - USB, RS-232, HDMI, infrared - up to 1.9 miles - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | NTI XTENDEX ST-IPFOUSB4K-LCVW (Local Unit) - video/audio/infrared/USB/serial extender - USB, RS-232, HDMI, infrared - TAA Compliant |
| Device Type | Video/audio/infrared/USB/serial extender |
| Form Factor | External |
| Data Link Protocol | USB, RS-232, HDMI, infrared |
| Max Transfer Distance | 1.9 miles |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 6.1 in x 4.3 in x 1.2 in |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video/audio/infrared/USB/serial extender |
| Form Factor | External |
| Expansion / Connectivity | |

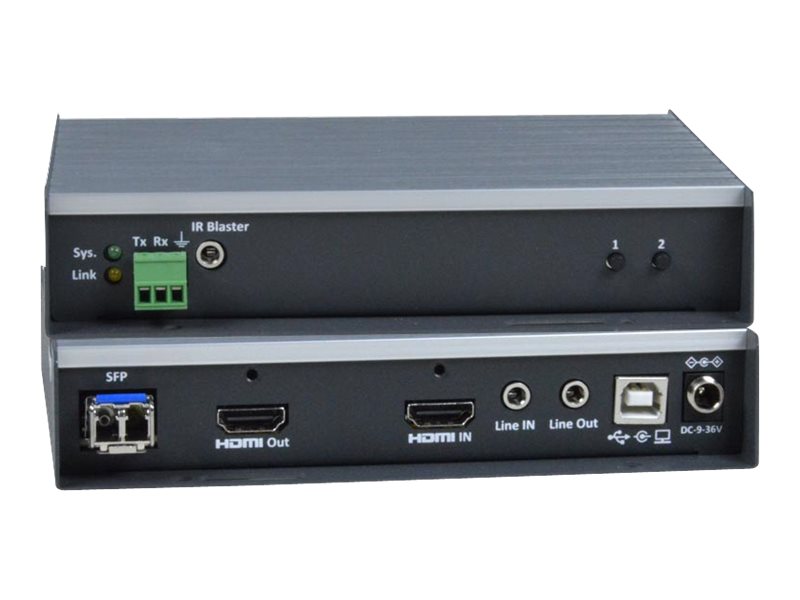

| Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x microphone - mini jack ¦ 1 x audio line-out - mini jack ¦ 1 x HDMI (input) - 19 pin HDMI Type A ¦ 1 x USB - Type B ¦ 1 x IR - mini jack ¦ 1 x RS-232 - terminal block ¦ 1 x network - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x serial cable - 4 ft ¦ 1 x HDMI cable - 6.6 ft ¦ 1 x USB type A to USB type B cable - 6 ft ¦ 1 x mini-phone 3.5 mm to mini-phone 3.5 mm cable - 5 ft |
| Compliant Standards | FCC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | USB, RS-232, HDMI, infrared |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Max Transfer Distance | 1.9 miles |
| Features | HDCP compliant |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 6.1 in |
| Depth | 4.3 in |
| Height | 1.2 in |
