Barcode scanner - desktop - decoded - USB
| Main Specifications | |
|---|---|

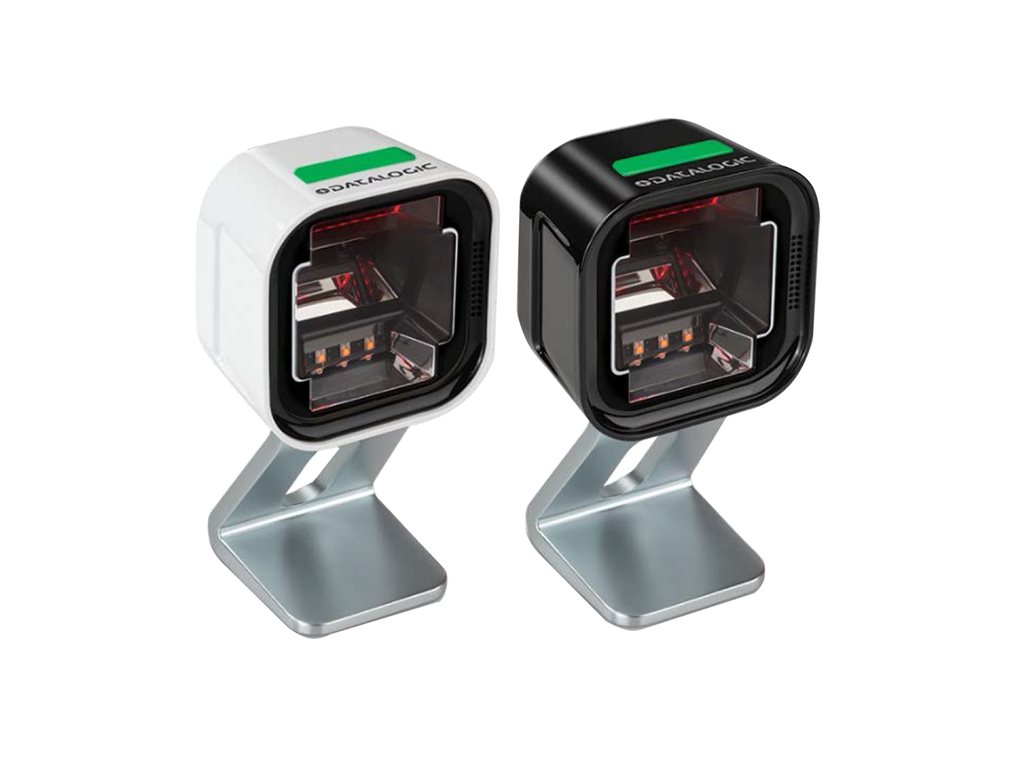

| Product Description | Datalogic Magellan 1500i Presentation - barcode scanner |
| Type | Barcode scanner - desktop - stationary - USB - decoded |
| Color | Black |
| Minimum Bar Width | 5 mil |
| Sensor Resolution | 1280 x 800 |
| Connectivity Technology | Wired |
| System Requirements | Windows 10 IoT Enterprise 64-bit Edition Retail, Microsoft Windows 7 Professional (32/64 bits), Windows 10 Pro 64-bit Edition, Windows 8.1 Pro 64-bit Edition, Windows Embedded 8.1 Industry Pro 64-bit Edition, Microsoft Windows Embedded POSReady 2009, Microsoft Windows Embedded POSReady 7 32-bit, Microsoft Windows Embedded POSReady 7 64-bit, CentOS 6.0, CentOS 6.0 (64-bit), CentOS 7.0, CentOS 7.0 (64-bit), Red Hat Linux, Ubuntu 14.04 LTS, Ubuntu 14.04 LTS (64-bit) |
| Dimensions (WxDxH) | 2.4 in x 3 in x 5.9 in |
| Weight | 8.46 oz |
| General | |
| Type | Barcode scanner - desktop - stationary |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - Type A |
| Miscellaneous | |
| Included Accessories | Tall tilting stand |
| Cables Included | 1 x USB cable - 6.6 ft |
| Compliant Standards | IEC 62471 |
| Power | |
| Electric Current Required | 300 mA (standby), 500 mA (operating) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| System Requirements | |
| OS Required | Windows 10 IoT Enterprise 64-bit Edition Retail, Microsoft Windows 7 Professional (32/64 bits), Windows 10 Pro 64-bit Edition, Windows 8.1 Pro 64-bit Edition, Windows Embedded 8.1 Industry Pro 64-bit Edition, Microsoft Windows Embedded POSReady 2009, Microsoft Windows Embedded POSReady 7 32-bit, Microsoft Windows Embedded POSReady 7 64-bit, CentOS 6.0, CentOS 6.0 (64-bit), CentOS 7.0, CentOS 7.0 (64-bit), Red Hat Linux, Ubuntu 14.04 LTS, Ubuntu 14.04 LTS (64-bit) |
| Dimensions & Weight | |
| Width | 2.4 in |
| Depth | 3 in |
| Height | 5.9 in |
| Weight | 8.46 oz |
| Barcode | |
| Interface Type | USB |
| Minimum Bar Width | 5 mil |
| Sensor Resolution | 1280 x 800 |
| Scan Mode | Fixed projection |
| Max Working Distance | 11.8 in |
| Skew (Degrees) | 75 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Composites, Australian Post, British Post, Canadian Post, China Post, Intelligent Mail Barcode, Japanese Post, Kix (Netherlands) Post, PLANET, Portuguese Post, Postnet, Royal Mail, Swedish Post, UPC, GS1 DataBar |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| Features | Green Spot technology |
