Network/power extender - 1GbE - 100Base-TX, 10Base-T, 1000Base-T - 2 ports - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | Intellinet 2-Port Outdoor Vandalproof Gigabit PoE++ Extender, Two 30 W Ports, Extends PoE up to 100 m (328 ft.), 60 W Power Budget, IEEE 802.3bt (4PPoE) Compliant, IP67 Waterproof, IK10-rated, Metal Housing - network/power extender - 10Mb LAN, 100Mb LAN, 1GbE |
| Device Type | Network/power extender |
| Ports Qty | 2 |
| Form Factor | External |
| Cabling Type | 100Base-TX, 10Base-T, 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | UPOE / 4PPoE / PoE+ |
| Dimensions (WxDxH) | 5.9 in x 2.9 in x 1.7 in |
| Weight | 12.45 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Network/power extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE output) - RJ-45 female - 30 W ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (input) - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

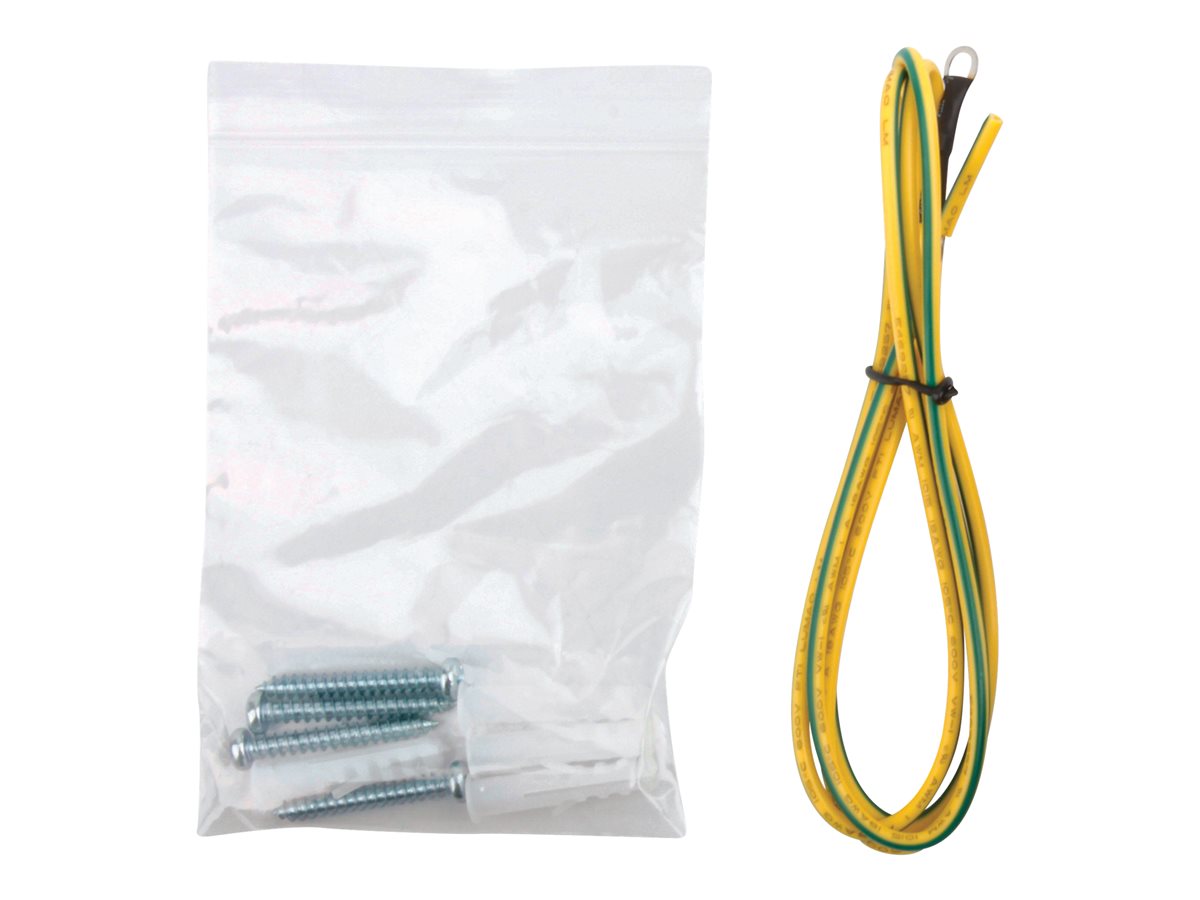

| Included Accessories | Grounding kit, cable gland |
| Compliant Standards | FCC Class A certified, RoHS, IP67, IK10 |
| Networking | |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Cabling Type | 100Base-TX, 10Base-T, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| MAC Address Table Size | 2048 entries |
| Max Transfer Distance | 328 ft |
| Status Indicators | Link/activity, PoE |
| Features | Metal housing, fanless, full duplex mode, flow control, 256KB packet buffer, store and forward, 60 W total power budget, outdoor enclosure |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Power | |
| Power Over Ethernet (PoE) | UPOE / 4PPoE / PoE+ |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 2.9 in |
| Height | 1.7 in |
| Weight | 12.45 oz |
