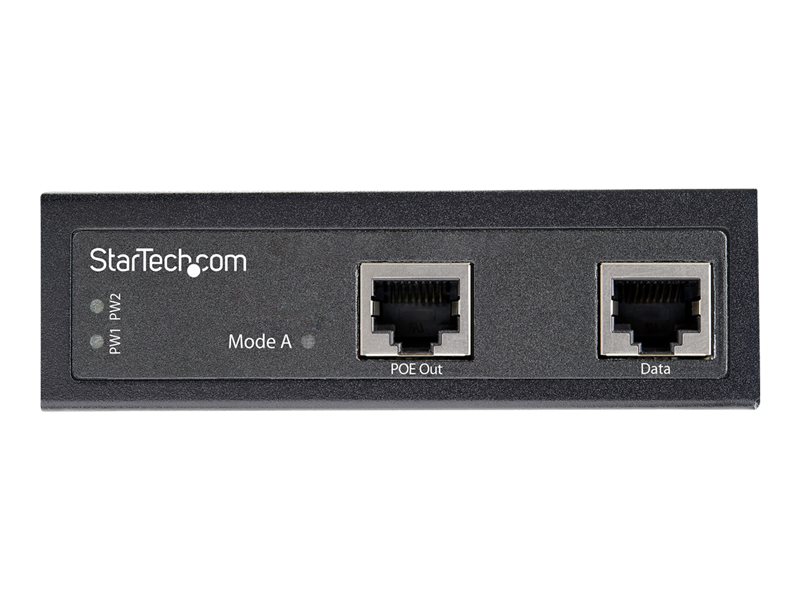

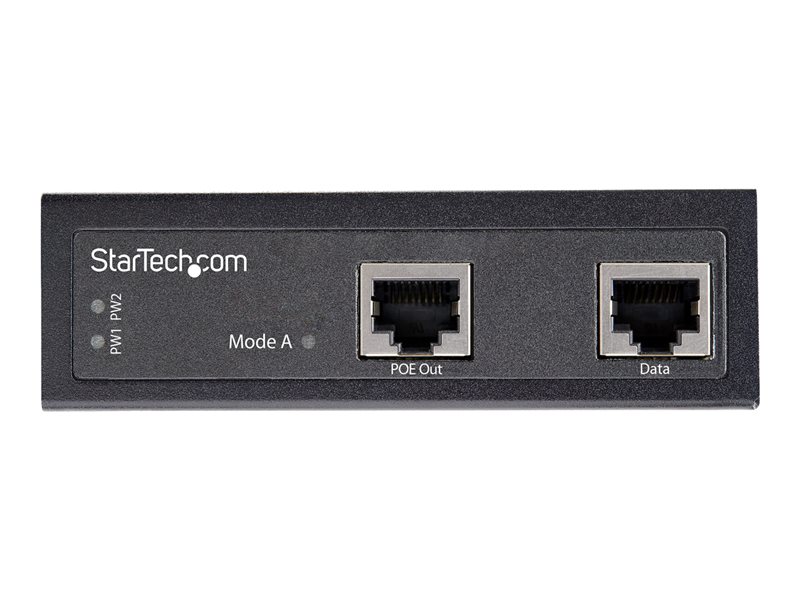

Midspan PoE Injector (POEINJ30W) - PoE injector - 30 Watt - output connectors: 2 - black
| Main Specifications | |
|---|---|
| Product Description | StarTech Industrial Gigabit Ethernet PoE Injector, 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter, -40C to +75C Cameras/Sensors/WiFi Access, 30W PoE - Midspan PoE Injector (POEINJ30W) - PoE injector - 30 Watt |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ |
| Output Voltage | 48 - 56 V |
| Power Capacity | 30 Watt |
| Output connectors | 1 x RJ-45 |
| Included Accessories | Mounting kit, terminal block, terminal block to barrel power connector adapter |
| Color | Black |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 2 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Mounting kit, terminal block, terminal block to barrel power connector adapter |
| MTBF | 630,899 hours |
| Features | DIN rail mountable, auto MDIX support, LED indicators, overcurrent protection, overload protection, 8 kV ESD protection (Air), 6 kV ESD protection (Contact) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, UL, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, UL 60950-1, EN 60950-1, WEEE, cULus, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | 48 - 56 V |
| Power Capacity | 30 Watt |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.3 in |
| Shipping Depth | 6.4 in |
| Shipping Height | 2.5 in |
| Shipping Weight | 14.11 oz |
