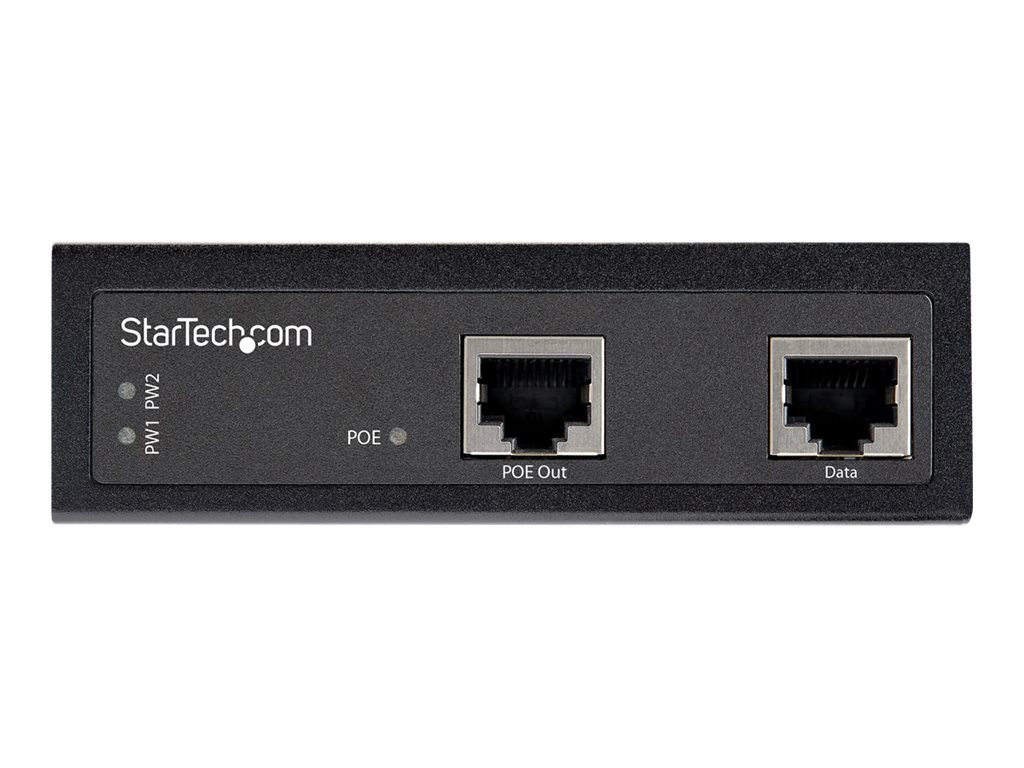

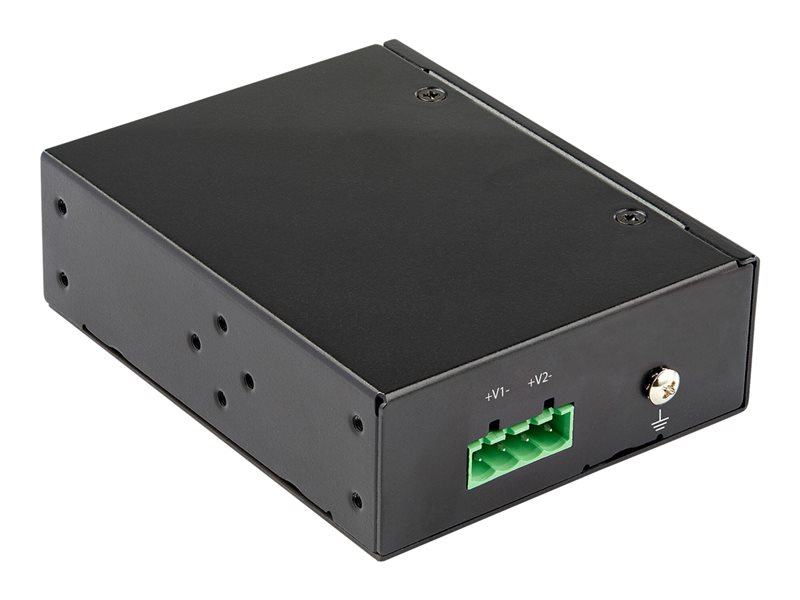

90W PoE++ Injector (POEINJ1G90W) - PoE injector - 90 Watt - output connectors: 2 - black
| Main Specifications | |
|---|---|
| Product Description | StarTech Industrial Gigabit PoE Injector, High Speed/High Power 90W, 802.3bt PoE++ 48V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter, -40C to +75C, Rugged, Gigabit PoE - 90W PoE++ Injector (POEINJ1G90W) - PoE injector - 90 Watt |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE++ |
| Weight | 6.14 oz |
| Output Voltage | 48 - 56 V |
| Power Capacity | 90 Watt |
| Output connectors | 1 x RJ-45 |
| Included Accessories | Mounting kit, terminal block |
| Color | Black |
| Dimensions (WxDxH) | 1.3 in x 3.2 in x 4.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 2 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Mounting kit, terminal block |
| MTBF | 540,891 hours |
| Features | Rugged, DIN rail mountable, auto MDIX support, LED indicators, overcurrent protection, overload protection, 8 kV ESD protection (Air), 6 kV ESD protection (Contact) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, UL, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, UL 60950-1, EN 60950-1, WEEE, cULus, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | 48 - 56 V |
| Power Capacity | 90 Watt |
| Dimensions & Weight | |
| Width | 1.3 in |
| Depth | 3.2 in |
| Height | 4.1 in |
| Weight | 6.14 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.3 in |
| Shipping Depth | 6.4 in |
| Shipping Height | 2.5 in |
| Shipping Weight | 14.11 oz |
