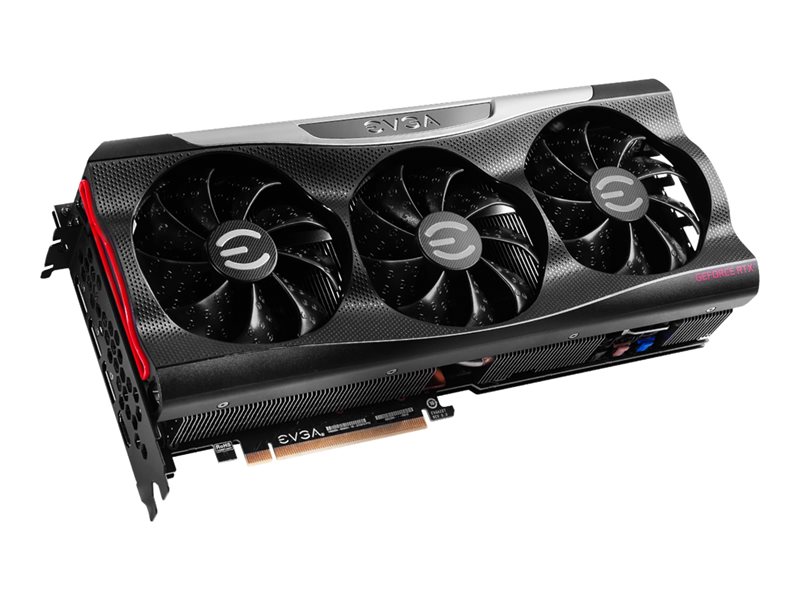

Graphics card - GF RTX 3090 - 24 GB GDDR6X - PCIe 4.0 x16 - HDMI, 3 x DisplayPort
| Main Specifications | |
|---|---|
| Product Description | EVGA GeForce RTX 3090 FTW3 ULTRA GAMING - graphics card - GF RTX 3090 - 24 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 3090 |
| Memory | 24 GB GDDR6X |
| Boost Clock | 1800 MHz |
| CUDA Cores | 10496 |
| Effective Memory Clock | 19500 MHz |
| Memory Interface | 384-bit |
| Max Resolution | 7680 x 4320 |

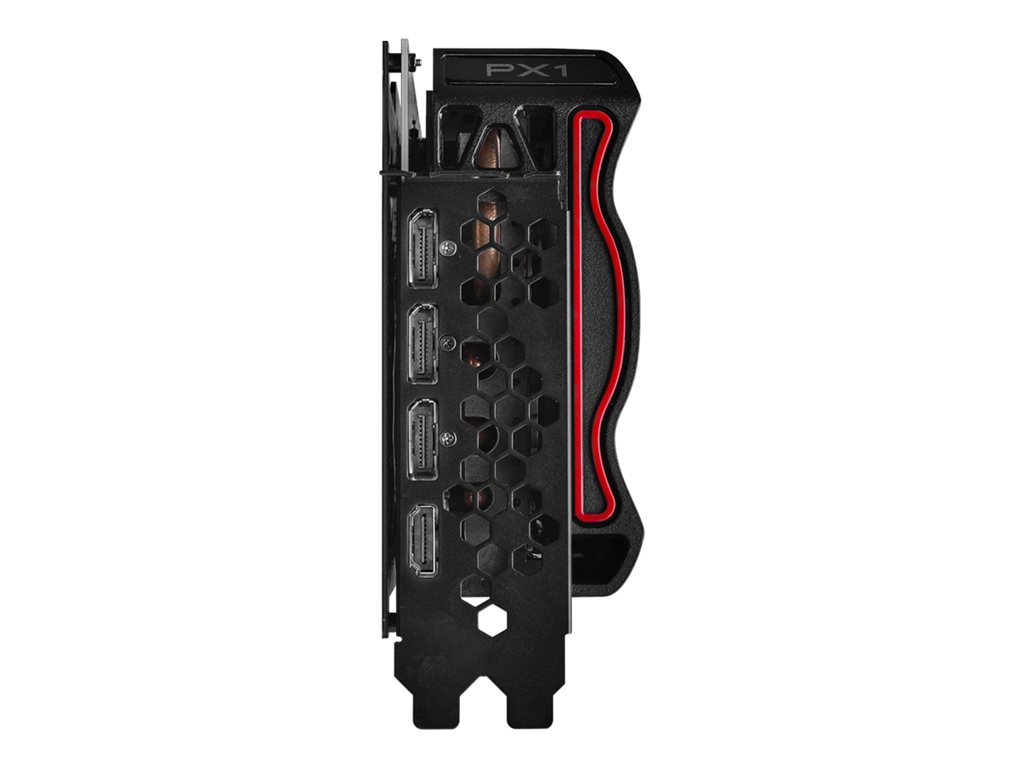

| Interfaces Details | HDMI ¦ 3 x DisplayPort |
| API Supported | DirectX 12, Vulkan, OpenGL 4.6 |
| Dimensions (WxDxH) | 11.8 in x 5.4 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 3090 |
| Boost Clock | 1800 MHz |
| CUDA Cores | 10496 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 |
| Interfaces Details | HDMI ¦ 3 x DisplayPort |
| API Supported | DirectX 12, Vulkan, OpenGL 4.6 |
| Features | NVIDIA GPU Boost, NVIDIA G-Sync ready, metal wraparound backplate, NVIDIA NVLink technology, Real-Time Ray Tracing, 2.75-slot Fan Cooler, Nvidia DLSS, ARGB Lighting, EVGA iCX3 Technology, HDCP |
| Memory | |
| Size | 24 GB |
| Technology | GDDR6X SDRAM |
| Effective Clock Speed | 19500 MHz |
| Bus Width | 384-bit |
| Bandwidth | 936 GBps |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 350 watt |
| Software Included | NVIDIA GeForce Experience, EVGA Precision X1 |
| Compliant Standards | HDCP 2.3, DisplayPort 1.4a |
| Depth | 11.8 in |
| Height | 5.4 in |
| System Requirements | |
| OS Required | Windows 10 64-bit Edition |
| Required Power Supply | 750 W |
| Additional Requirements | 3 x 8 pin PCI Express power connector |
