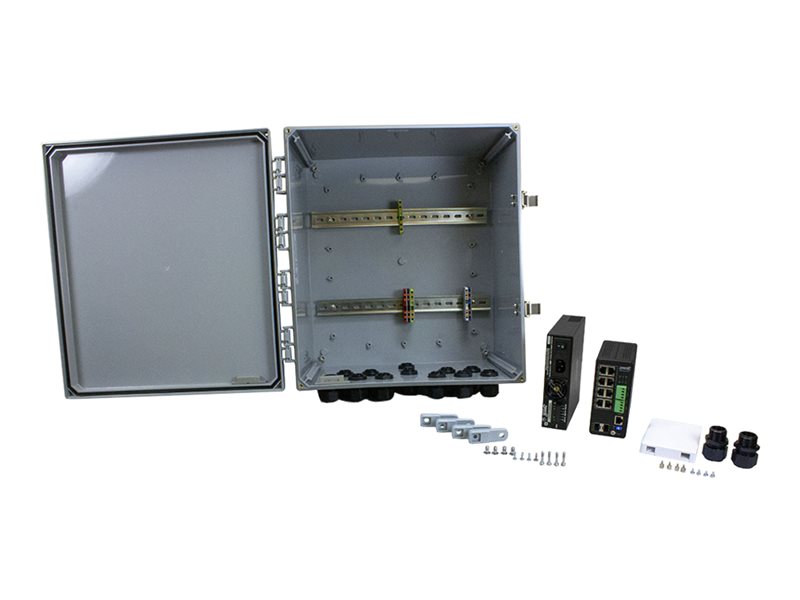

Switch - managed - 8 x 10/100/1000 (PoE++) + 2 x 1000Base-X SFP - DIN rail mountable, wall-mountable - PoE++ (480 W) - DC power - with 1 x Outdoor Cabinet Assembly OCA-P181610,1 x Stand-Alone Hardened Power Supply PS-DC-DUAL-5624T, 1 x Fiber Management Kit SESPM-4P-FMKIT
| Main Specifications | |
|---|---|
| Product Description | Transition Networks Hardened SISPM1040-582-LRT - switch - 10 ports - managed - with 1 x Outdoor Cabinet Assembly OCA-P181610,1 x Stand-Alone Hardened Power Supply PS-DC-DUAL-5624T, 1 x Fiber Management Kit SESPM-4P-FMKIT |
| Device Type | Switch - 10 ports - managed - with 1 x Outdoor Cabinet Assembly OCA-P181610,1 x Stand-Alone Hardened Power Supply PS-DC-DUAL-5624T, 1 x Fiber Management Kit SESPM-4P-FMKIT |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE++) + 2 x 1000Base-X SFP |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 480 W |
| Performance | Backplane switching capacity: 20 Gbps |
| Capacity | QoS hardware queues: 8 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, SSH, CLI, HTTP, HTTPS, TFTP |
| Features | DMS, IPv6 support, IPv4 support, DHCP relay, DHCP snooping, DHCP server, ACL support, MAC and IP-based ACLs support, VLAN support, LLDP-MED, ERPS, EEE, IP source guard, Port Security, Syslog support, schedule PoE, APR, store and forward, reset button, firmware upgradable, port-based VLAN, VLAN Tagging, VLAN Double Tagging (Q-in-Q), MAC based VLAN, Voice VLAN, Private VLAN, traffic monitoring, STP support, MSTP support, RSTP support, QoS, SP, WRR, MVR, LACP, port trunking, IGMP snooping, MLD snooping |
| Compliant Standards | ITU-T G.8031, ITU-T G.8032, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3d, IEEE 802.3s, IEEE 802.3q, IEEE 802.3p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731, IEEE 1588v2, IEEE 802.3bt, IEEE 802.3ag |
| Power | DC 52 - 57 V |
| Dimensions (WxDxH) | 2.4 in x 5.1 in x 5.3 in |
| Localization | North America |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Switch - 10 ports - managed - with 1 x Outdoor Cabinet Assembly OCA-P181610,1 x Stand-Alone Hardened Power Supply PS-DC-DUAL-5624T, 1 x Fiber Management Kit SESPM-4P-FMKIT |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE++) + 2 x 1000Base-X SFP |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 480 W |
| Performance | Backplane switching capacity: 20 Gbps |
| Capacity | QoS hardware queues: 8 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, SSH, CLI, HTTP, HTTPS, TFTP |
| Authentication Method | RADIUS, TACACS+ |
| Features | DMS, IPv6 support, IPv4 support, DHCP relay, DHCP snooping, DHCP server, ACL support, MAC and IP-based ACLs support, VLAN support, LLDP-MED, ERPS, EEE, IP source guard, Port Security, Syslog support, schedule PoE, APR, store and forward, reset button, firmware upgradable, port-based VLAN, VLAN Tagging, VLAN Double Tagging (Q-in-Q), MAC based VLAN, Voice VLAN, Private VLAN, traffic monitoring, STP support, MSTP support, RSTP support, QoS, SP, WRR, MVR, LACP, port trunking, IGMP snooping, MLD snooping |
| Compliant Standards | ITU-T G.8031, ITU-T G.8032, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3d, IEEE 802.3s, IEEE 802.3q, IEEE 802.3p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731, IEEE 1588v2, IEEE 802.3bt, IEEE 802.3ag |
| Status Indicators | System, alarm, power |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 PoE++ - 90 W ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | DIN-rail bracket, wall mounting kit |
| Compliant Standards | FCC Class A certified, NEMA TS-2, EN 62368-1, IEC 61850-3, IEEE 1613, UL Class 1 Division 2 |
| Localization | North America |
| Power | |
| Voltage Required | DC 52 - 57 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Dimensions & Weight | |
| Width | 2.4 in |
| Depth | 5.1 in |
| Height | 5.3 in |
