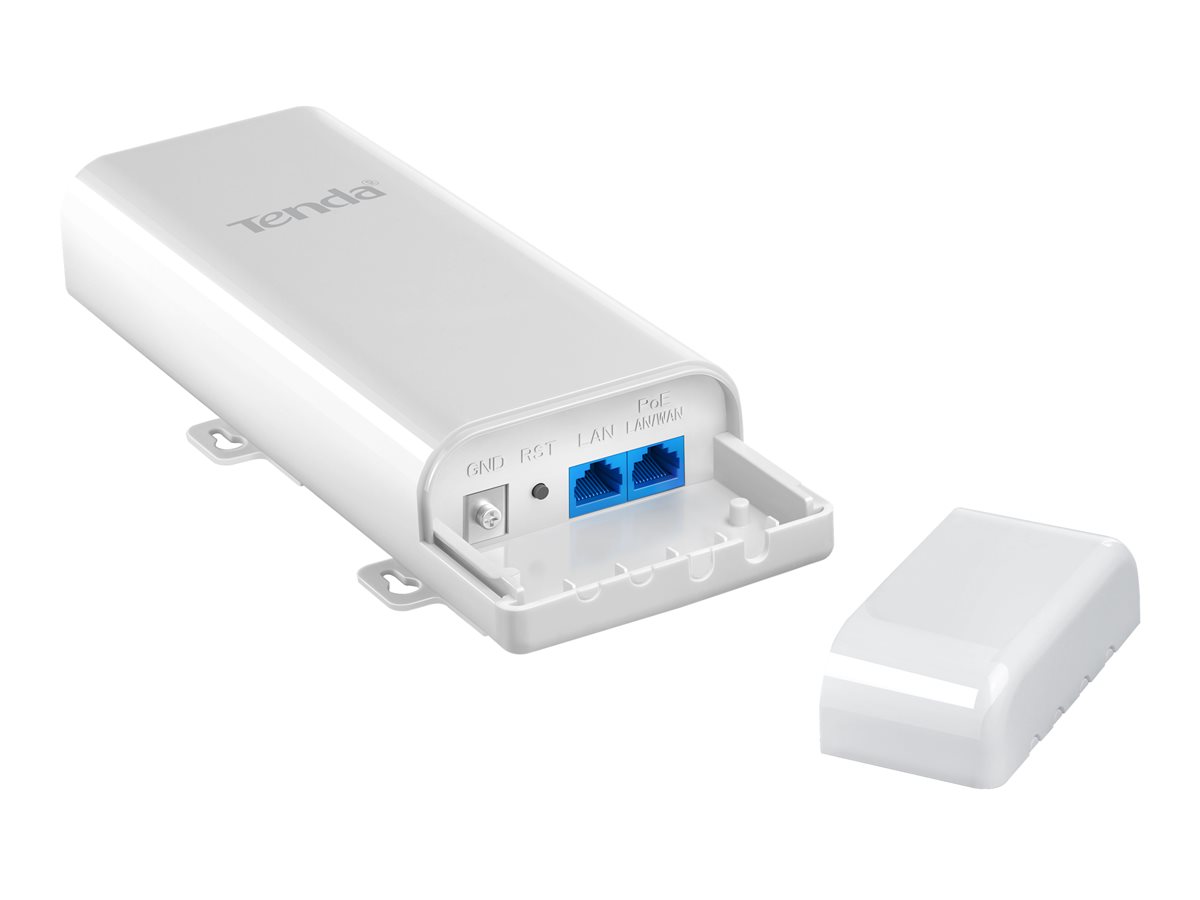

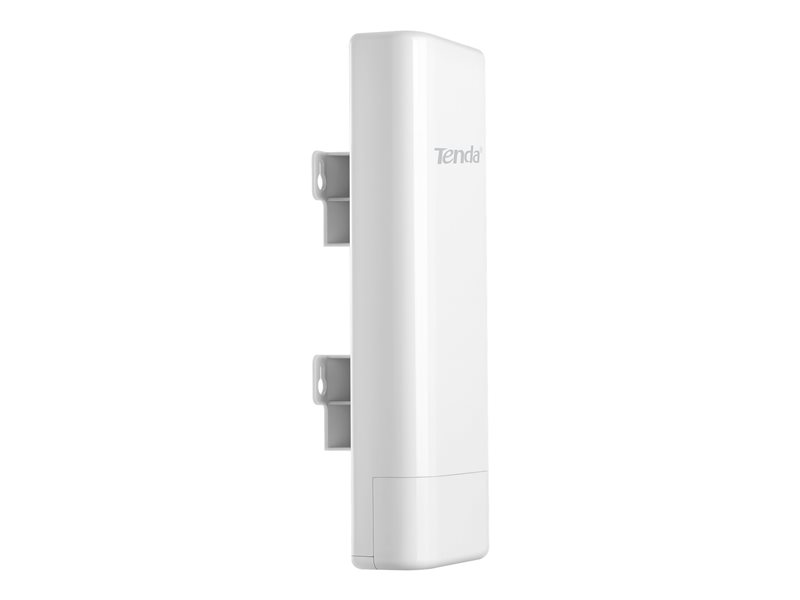

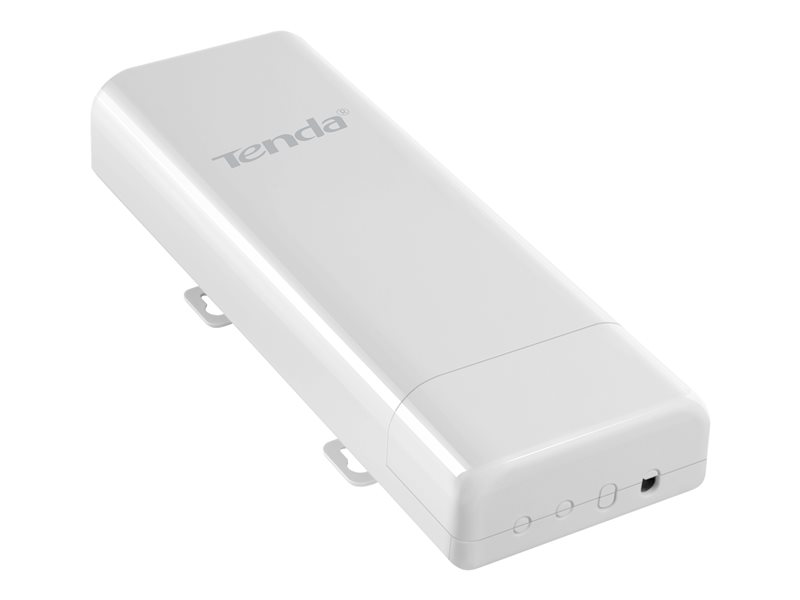

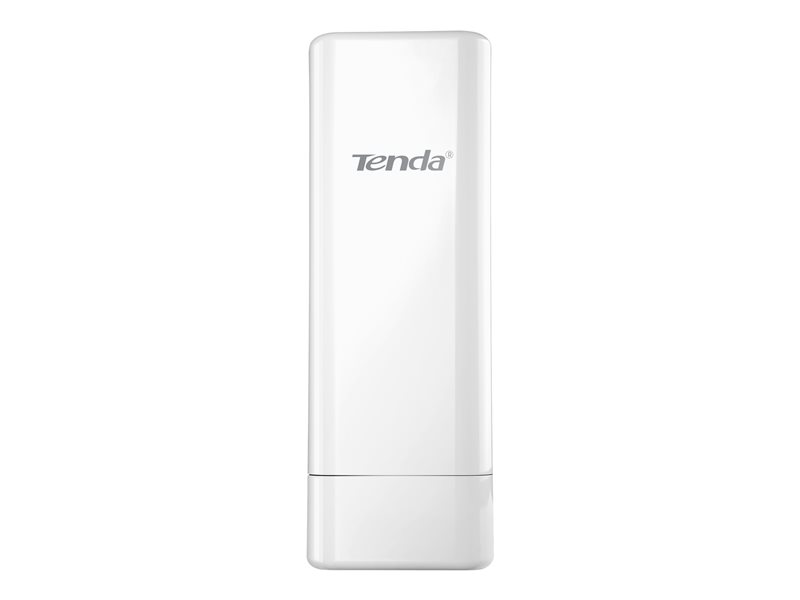

Wireless access point - Wi-Fi - 2.4 GHz
| Main Specifications | |
|---|---|
| Product Description | Tenda O3 - wireless access point - Wi-Fi |
| Device Type | Wireless access point |
| Form Factor | External |
| Processor | 1 x Broadcom 300 MHz |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Capacity | Number of concurrent clients: 15 |
| Included Accessories | PoE injector |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 10.6 in x 3.7 in x 2.7 in |
| General | |
| Device Type | Wireless access point |
| Width | 10.6 in |
| Depth | 3.7 in |
| Height | 2.7 in |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Base-TX (PoE) - RJ-45 ¦ 1 x 100Base-TX - RJ-45 |
| Miscellaneous | |
| Included Accessories | PoE injector |
| Cables Included | 1 x network cable |
| Compliant Standards | FCC, RoHS, IP64 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 150 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | PPTP, L2TP |
| Frequency Band | 2.4 GHz |
| Capacity | Number of concurrent clients: 15 |
| Status Indicators | Power, WLAN, LAN |
| Features | Power over Ethernet (PoE), repeating mode, firmware upgradable, Wi-Fi Multimedia (WMM) support, hidden SSID, reset button, Automatic Power Save Delivery (APSD), 4KV Surge protection |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | Power injector |
| Power Consumption Operational | 6 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Broadcom 300 MHz |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Gain Level | 12 dBi |
