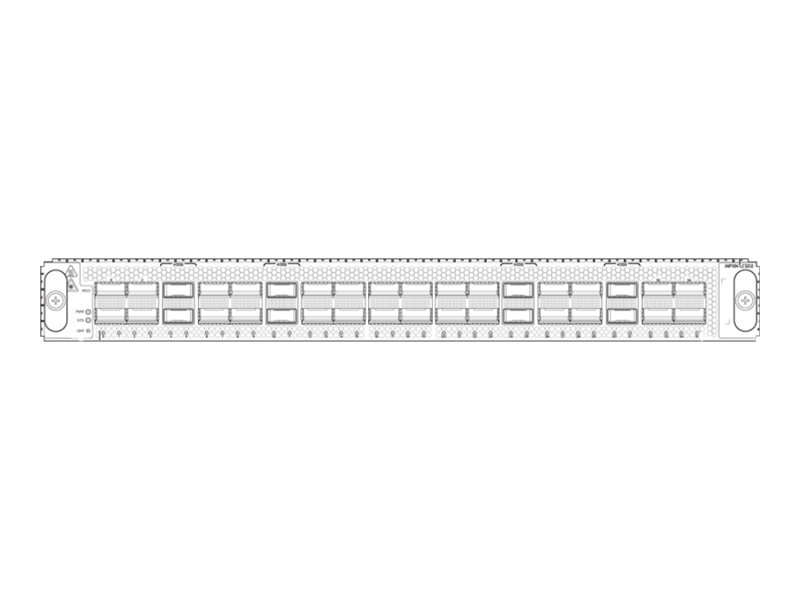

Expansion module - 100 Gigabit QSFP28 x 32 + 400 Gigabit QSFP56-DD x 4 - for PTX Series PTX10004, PTX10008, PTX10016
| Main Specifications | |
|---|---|
| Product Description | Juniper Networks PTX10K-LC1202-36MR Line Card - expansion module - 100 Gigabit QSFP28 x 32 + 400 Gigabit QSFP56-DD x 4 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | 100 Gigabit QSFP28 x 32 + 400 Gigabit QSFP56-DD x 4 |
| Dimensions (WxDxH) | 17.2 in x 21.3 in x 1.9 in |
| Weight | 20.94 lbs |
| Performance | Throughput: 4.8 Tbps |
| Designed For | PTX Series PTX10004-BASE3, PTX10004-PREM2, PTX10004-PREM3, PTX10008, PTX10008-BASE, PTX10016-BASE |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 32 x 100Gb Ethernet - QSFP28 ¦ 4 x 400Gb Ethernet - QSFP56-DD |
| Networking | |
| Ports | 100 Gigabit QSFP28 x 32 + 400 Gigabit QSFP56-DD x 4 |
| Connectivity Technology | Wired |
| Performance | Throughput: 4.8 Tbps |
| Remote Management Protocol | CLI |
| Status Indicators | Status |
| Features | MACsec support |
| Power | |
| Power Consumption Operational | 740 watt |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 21.3 in |
| Height | 1.9 in |
| Weight | 20.94 lbs |
| Compatibility Information | |
| Designed For | Juniper Networks PTX Series PTX10004-BASE3, PTX10004-PREM2, PTX10004-PREM3, PTX10008, PTX10008-BASE, PTX10016-BASE |
