Switch - L3 - managed - 12 x 10/100/1000/2.5G (PoE++) + 12 x 100/1000/2.5/5/10G (PoE++) + 2 x 40/100 Gigabit QSFP+ - rack-mountable - PoE++ (2000 W)
| Main Specifications | |
|---|---|

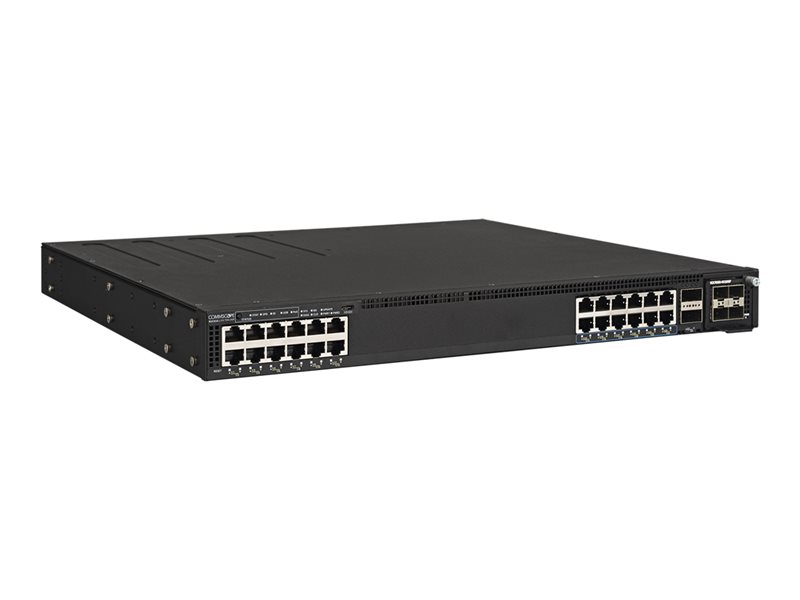

| Product Description | Ruckus ICX 7550-24ZP - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 10/100/1000/2.5G (PoE++) + 12 x 100/1000/2.5/5/10G (PoE++) + 2 x 40/100 Gigabit QSFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 2000 W |
| Performance | Switching capacity: 700 Gbps ¦ Forwarding capacity: 521 Mpps ¦ Aggregate stacking bandwidth: 2.4 Tbps |
| Capacity | Virtual interfaces (VLANs): 4095 ¦ PVLANs supported: 256 ¦ Maximum ports per trunk: 32 ¦ Trunk groups: 256 ¦ Spanning Tree Protocol instances: 512 ¦ Priority QoS queues: 48 ¦ Multicast groups: 8192 ¦ VRF instances: 128 |
| Jumbo Frame Support | 12288 bytes |
| Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing, ECMP |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI |
| Features | Flow control, full duplex capability, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, MAC address filtering, LFS, MRP support, sFlow, PVST, PIM-SM snooping, RFN, VSRP support, VCT technology, MSTP support, DHCP snooping, ACL support, QoS, DOM support, DHCP server, MLD snooping, PVST+, UDLD, RSPAN, PVRST, GVRP, MVRP, NDP, CoS, SP, DoS, 802.1x authentication, PTP, MACsec support, OpenFlow support, SCP, VXLAN, MAC address authentication, NTP, AAA, Root Guard, Voice VLAN, Private VLAN, protected ports, ERSPAN, WRR, MAC based VLAN, Telnet server, Telnet client, BPDU Guard, Q-in-Q tunneling, SmartZone, IPG adjustment, MAC Learning Disable, Port Loop Detection, Flexible authentication, Web authentication, CoA |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3bz, IEEE 802.3bt |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 16 in x 1.7 in |
| Weight | 15.39 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 10/100/1000/2.5G (PoE++) + 12 x 100/1000/2.5/5/10G (PoE++) + 2 x 40/100 Gigabit QSFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 2000 W |
| Performance | Switching capacity: 700 Gbps ¦ Forwarding capacity: 521 Mpps ¦ Aggregate stacking bandwidth: 2.4 Tbps |
| Capacity | Virtual interfaces (VLANs): 4095 ¦ PVLANs supported: 256 ¦ Maximum ports per trunk: 32 ¦ Trunk groups: 256 ¦ Spanning Tree Protocol instances: 512 ¦ Priority QoS queues: 48 ¦ Multicast groups: 8192 ¦ VRF instances: 128 |
| Jumbo Frame Support | 12288 bytes |
| Max Units In A Stack | 12 |
| Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing, ECMP |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, full duplex capability, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, MAC address filtering, LFS, MRP support, sFlow, PVST, PIM-SM snooping, RFN, VSRP support, VCT technology, MSTP support, DHCP snooping, ACL support, QoS, DOM support, DHCP server, MLD snooping, PVST+, UDLD, RSPAN, PVRST, GVRP, MVRP, NDP, CoS, SP, DoS, 802.1x authentication, PTP, MACsec support, OpenFlow support, SCP, VXLAN, MAC address authentication, NTP, AAA, Root Guard, Voice VLAN, Private VLAN, protected ports, ERSPAN, WRR, MAC based VLAN, Telnet server, Telnet client, BPDU Guard, Q-in-Q tunneling, SmartZone, IPG adjustment, MAC Learning Disable, Port Loop Detection, Flexible authentication, Web authentication, CoA |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3bz, IEEE 802.3bt |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Expansion / Connectivity | |

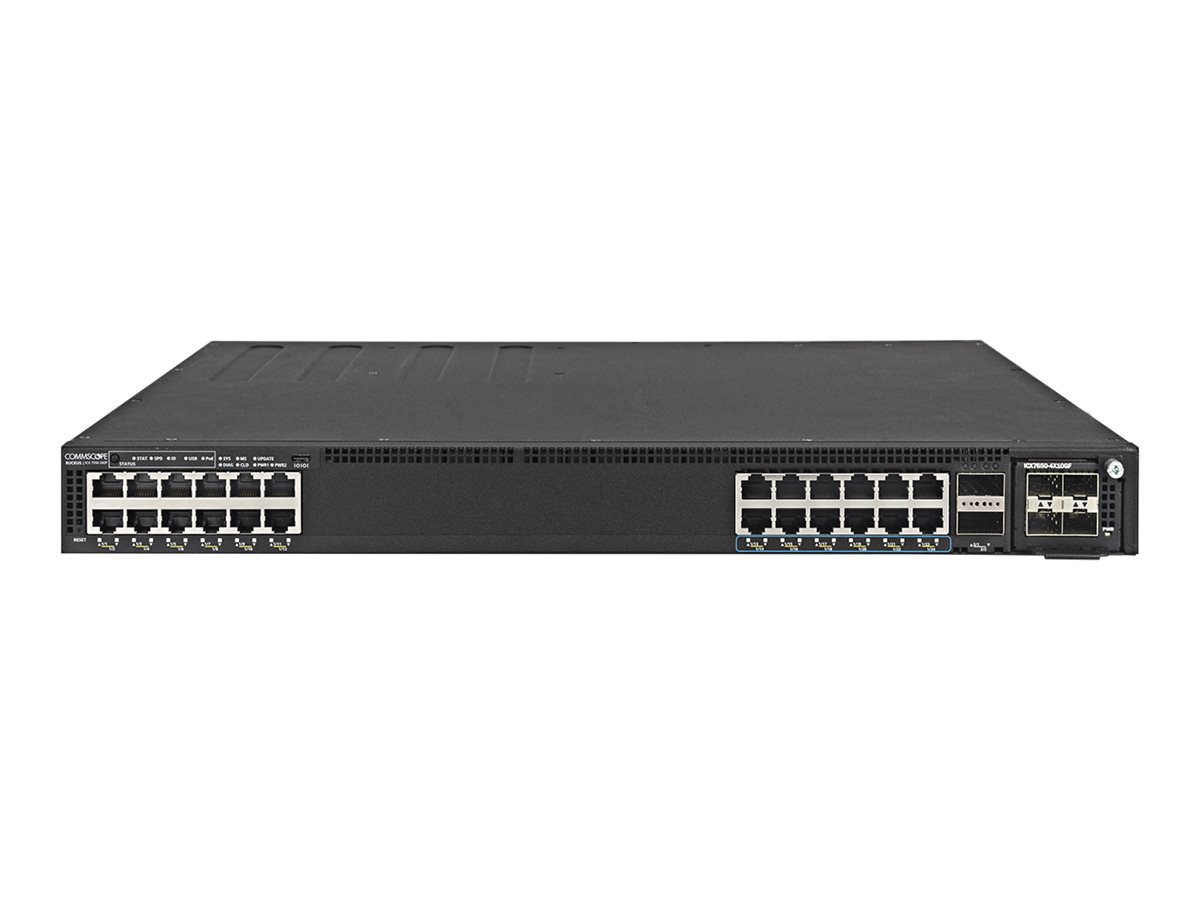

| Interfaces | 12 x 10/100/1000/2.5G RJ-45 PoE++ - 90 W ¦ 12 x 100/1000/2.5G/5G/10G RJ-45 PoE++ - 90 W ¦ 2 x 100Gbit/40Gbit LAN QSFP+ uplink/stacking ¦ 1 x console RJ-45 ¦ 1 x console (USB) Type C ¦ 1 x 1000Base-T RJ-45 management |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 287.828 hours |
| Compliant Standards | EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, WEEE, RoHS, EN 61000-6-3, FCC Part 15 A, EN 60825-1, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 60950-1:2006, IEC 68-2-6, AS/NZS 55022, IEC 68-2-36, EN 55022/CISPR 22 Class A, IEC 68-2-32, IEC 68-2-27 |
| Power | |

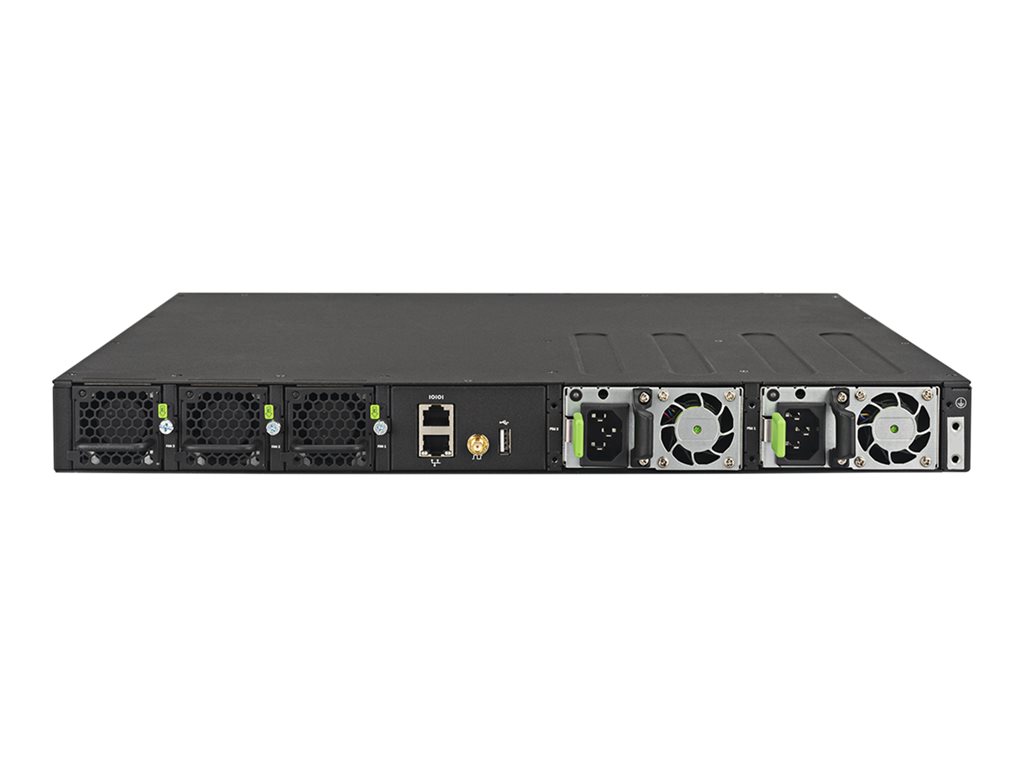

| Power Device | Internal power supply (not installed) - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 16 in |
| Height | 1.7 in |
| Weight | 15.39 lbs |
