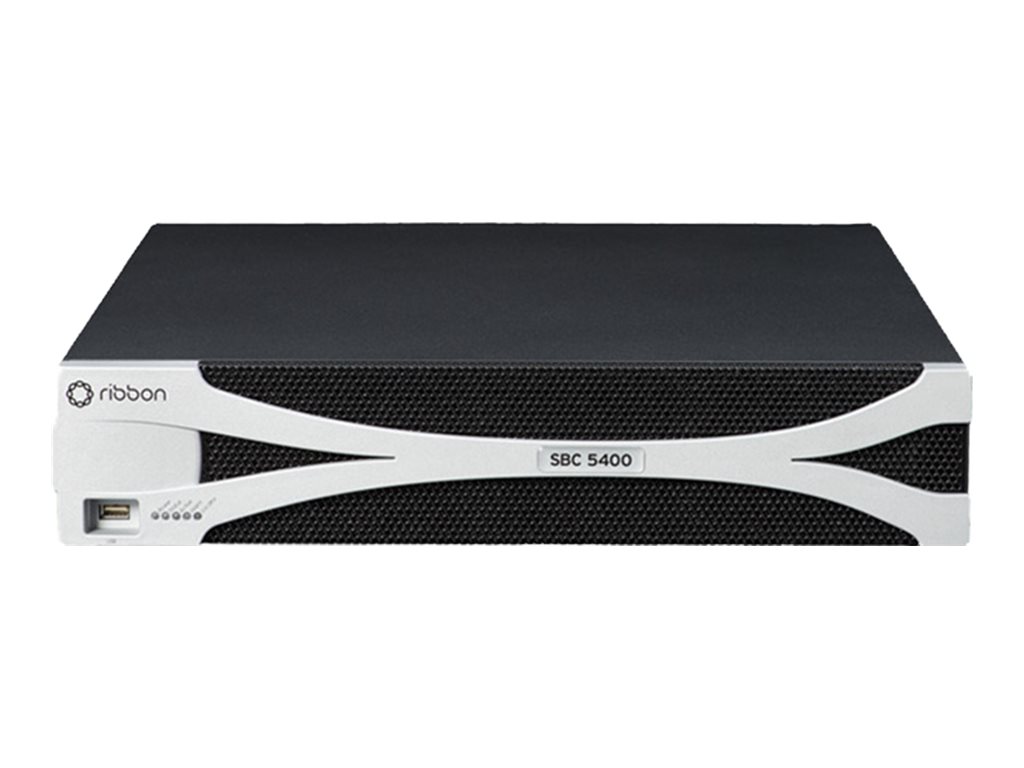

VoIP gateway - 1GbE - 2U - rack-mountable - with DSP module
| Main Specifications | |
|---|---|
| Product Description | Ribbon SBC 5400 - VoIP gateway - with DSP module |
| Device Type | VoIP gateway |
| Form Factor | Rack-mountable - 2U |
| RAM | 32 GB |
| Hard Drive | 512 GB x 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Maximum call setup rate: 700 calls per second ¦ IPsec (IKE) setup rate: 150 calls per second ¦ TLS setup rate: 500 calls per second ¦ Maximum registrations: 1250 registrations per second ¦ Maximum refreshes: 5000 refreshes per second |
| Capacity | Maximum number of transcoded sessions: 40000 ¦ Maximum number of TLS sessions: 375000 ¦ Maximum number of registered endpoints: 600000 ¦ Maximum number of transcoded sessions: 40000 ¦ Maximum number of SRTP call legs: 150000 ¦ H.323 sessions: 32000 |
| VoIP Protocols | H.323, SIP, RTCP, RTP, SRTP, MSRP |
| Dimensions (WxDxH) | 17.5 in x 21 in x 3.5 in |
| Weight | 50 lbs |
| Bundled with | DSP module |
| General | |
| Device Type | VoIP gateway |
| Height (Rack Units) | 2U |
| Width | 17.5 in |
| Depth | 21 in |
| Height | 3.5 in |
| Weight | 50 lbs |
| Bundled with | DSP module |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 2.0 - Type A ¦ 2 x 10Gb Ethernet ¦ 1 x console - RJ-45 ¦ 1 x alarm - DB-15 ¦ 1 x serial - DB-9 ¦ 2 x 10Gb Ethernet ¦ 2 x Ethernet - SFP |
| Miscellaneous | |
| Compliant Standards | GR-1089-CORE, GR-63-CORE, SR-3580 NEBS Level 3 |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Digital Video Format | H.264, H.263, H.261, H.263+ |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, IPSec, DNS, RTP, RTCP, SFTP |
| Routing Protocol | Policy-based routing (PBR) |
| Remote Management Protocol | SNMP 2, SNMP, SNMP 3, HTTP, HTTPS, SSH, CLI, NETCONF, RestAPI |
| Performance | Maximum call setup rate: 700 calls per second ¦ IPsec (IKE) setup rate: 150 calls per second ¦ TLS setup rate: 500 calls per second ¦ Maximum registrations: 1250 registrations per second ¦ Maximum refreshes: 5000 refreshes per second |
| Capacity | Maximum number of transcoded sessions: 40000 ¦ Maximum number of TLS sessions: 375000 ¦ Maximum number of registered endpoints: 600000 ¦ Maximum number of transcoded sessions: 40000 ¦ Maximum number of SRTP call legs: 150000 ¦ H.323 sessions: 32000 |
| Status Indicators | Power, status, active, major, minor, locator, standby |
| Features | Firewall protection, NAT support, NAPT support, DoS attack prevention, IPv6 support, DDos attack prevention, Quality of Service (QoS), bandwidth control, IPv4 support, Class of Service (CoS), Type of Service (ToS), WebRTC |
| Encryption Algorithm | IKE, TLS |
| Authentication Method | RADIUS |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| RAM | 32 GB |
| Hard Drive | SSD 512 GB x 1 |
| IP Telephony | |
| VoIP Protocols | H.323, SIP, RTCP, RTP, SRTP, MSRP |
| Voice Codecs | G.711, G.722, G.723, G.728, G.729ab, G.726, iLBC, T.38, G.722.1, Opus, AMR-NB, AMR-WB, EVRC, EVRC-B, EVS, SILK |
| IP Telephony Features | Voice activity detection (VAD), automatic fax/modem detection and pass-through, silence suppression, DTMF generation/detection, dynamic jitter buffer, call forking |
