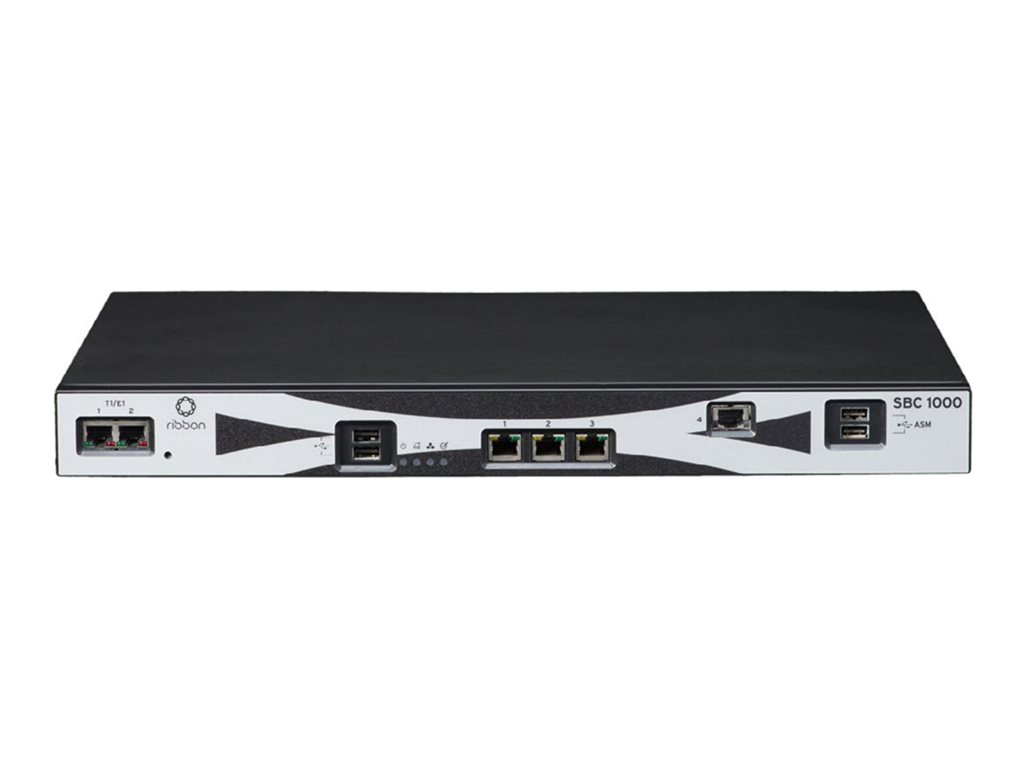

VoIP gateway - with 1 PRI and 4 BRI, licensable growth to 2 PRI - 1GbE - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Ribbon SBC 1000 - VoIP gateway - with 1 PRI and 4 BRI, licensable growth to 2 PRI |
| Device Type | VoIP gateway |
| Form Factor | Rack-mountable - 1U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Maximum call setup rate: 4 calls per second |
| Capacity | Maximum number of SRTP sessions: 128 ¦ Maximum number of TLS sessions: 192 |
| VoIP Protocols | RTCP, RTP, SRTP |
| Dimensions (WxDxH) | 17.5 in x 12 in x 1.7 in |
| Weight | 12.5 lbs |
| General | |
| Device Type | VoIP gateway |
| Height (Rack Units) | 1U |
| Width | 17.5 in |
| Depth | 12 in |
| Height | 1.7 in |
| Weight | 12.5 lbs |
| Expansion / Connectivity | |
| Interfaces | 3 x 10/100/1000Base-T - RJ-45 |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, IPSec, DNS, RTP, RTCP, SFTP |
| Routing Protocol | RIP |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS |
| Performance | Maximum call setup rate: 4 calls per second |
| Capacity | Maximum number of SRTP sessions: 128 ¦ Maximum number of TLS sessions: 192 |
| Encryption Algorithm | TLS |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| IP Telephony | |
| VoIP Protocols | RTCP, RTP, SRTP |
| Voice Codecs | G.711, G.722, G.723.1, G.728, G.729ab, G.726, G.722.2, T.38 |
| IP Telephony Features | Voice activity detection (VAD), automatic fax/modem detection and pass-through, DTMF generation/detection, call forking |
