Motherboard - micro ATX - Socket AM4 - AMD X470 Chipset - USB 3.1 Gen 2 - 2 x 10 Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

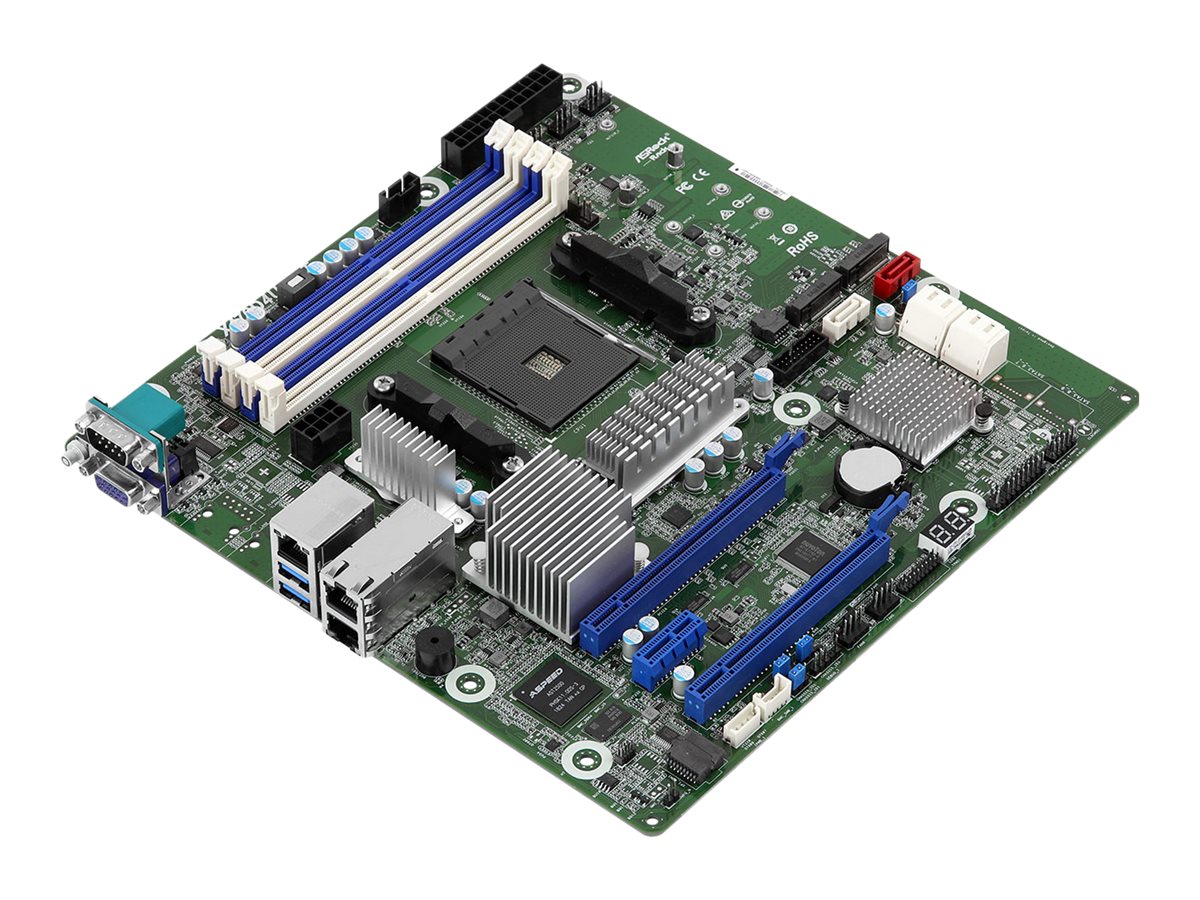

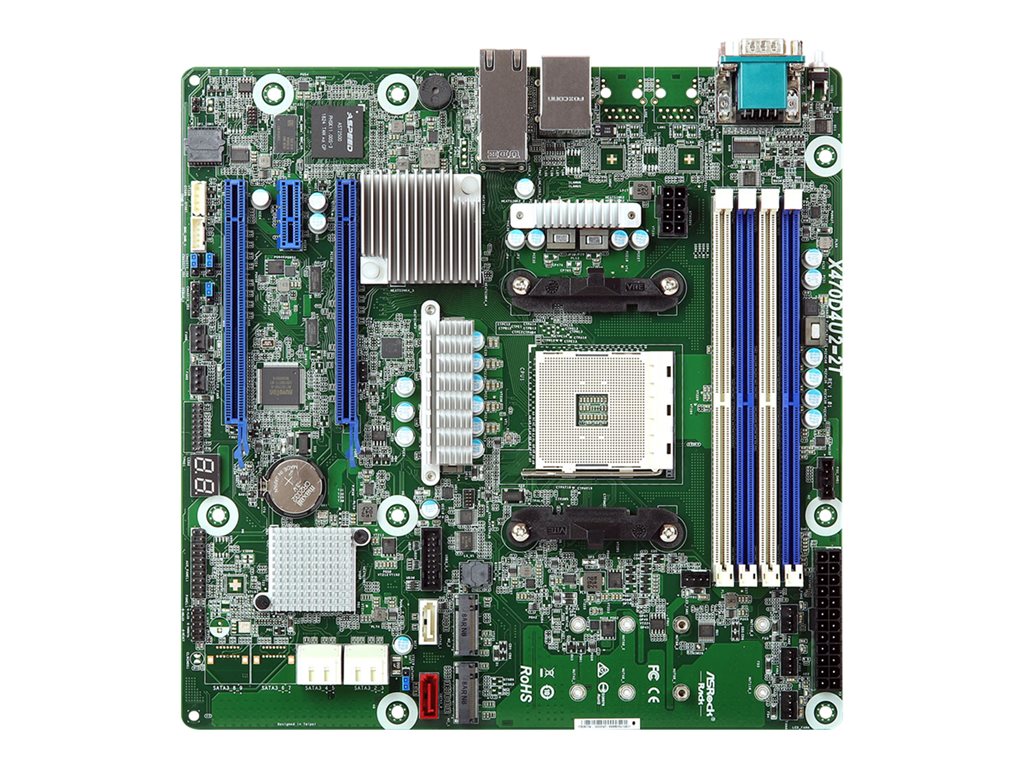

| Product Description | ASRock Rack X470D4U2-2T - motherboard - micro ATX - Socket AM4 - AMD X470 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD X470 |
| Processor Socket | 1 x Socket AM4 |
| Compatible Processors | Ryzen |
| Max RAM Size | 64 GB |
| RAM Supported | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
| Storage Ports | 6 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire Ports | 2 x USB 3.1 Gen 2 + (2 x USB 3.1 Gen 1 via headers) |
| Graphics | ASPEED AST2500 |
| Dedicated Video Memory | 256 MB DDR4 SDRAM |
| LAN | 2 x 10 Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD X470 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen |
| Expansion / Connectivity | |
| Expansion Slots | 4 x DIMM 288-pin (1.2 V) ¦ 1 x CPU ¦ 1 x PCIe 3.0 x16 (x16 mode (x8 mode if PCI Express 3.0 x8 slot is occupied; splittable in x4/4/4/4)) ¦ 1 x PCIe 2.0 x1 ¦ 1 x PCIe 3.0 x16 (x8 mode) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |

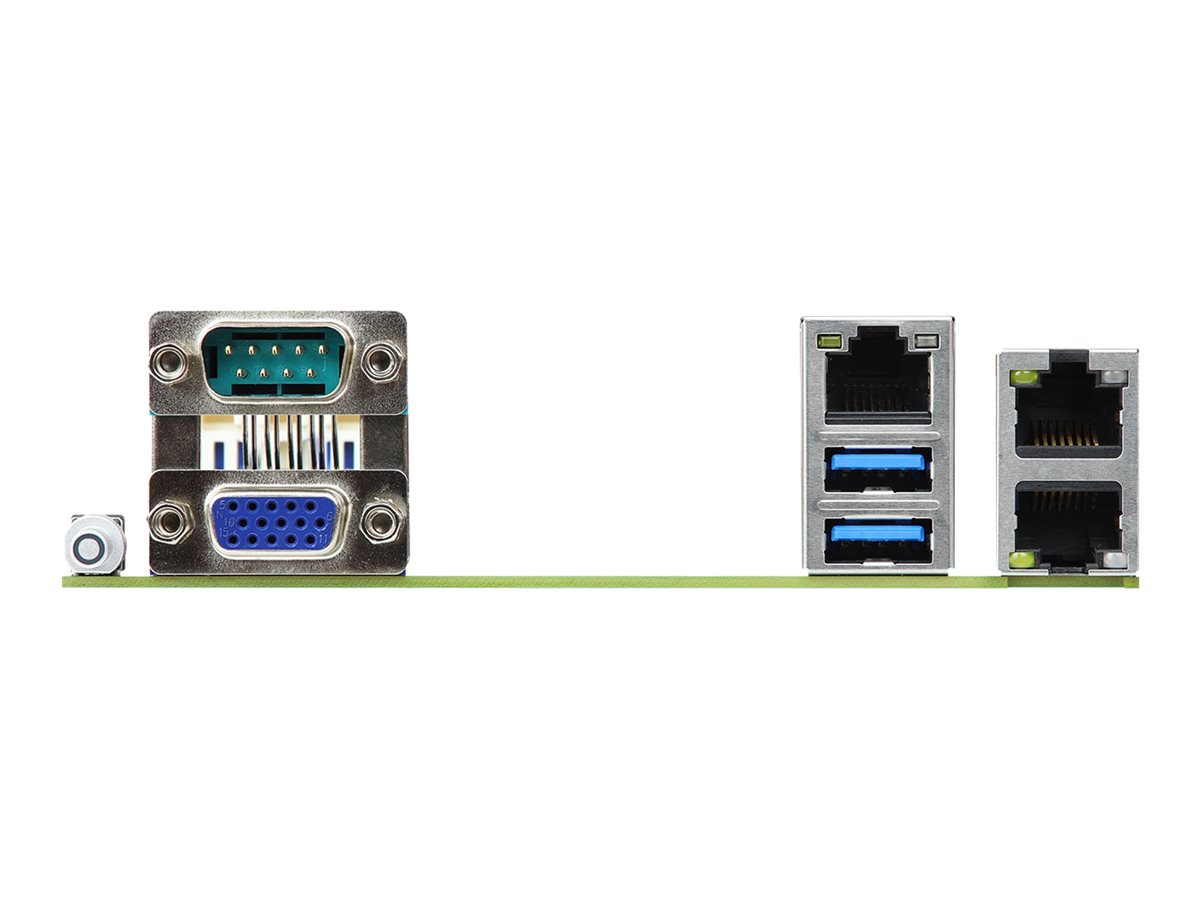

| Interfaces | 1 x VGA ¦ 1 x serial ¦ 2 x USB 3.1 Gen 2 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x management |
| Internal Interfaces | 2 x USB 3.1 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Width | 9.6 in |
| Depth | 9.6 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | ACPI 2.0 support, UEFI BIOS, SMBIOS 2.8 support, IPMI 2.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | WatchDog Timer, ASRock Instant Flash, Teaming Technology, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE) |
| LAN | |
| Network Controller | Intel X550-AT2 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| Dedicated Video Memory | 256 MB DDR4 SDRAM |
| Supported RAM | |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
