Switch - L2+ - managed - 8 x 10/100/1000/2.5G/5G/10GBase-T (PoE++) + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE++ (420 W)
| Main Specifications | |
|---|---|

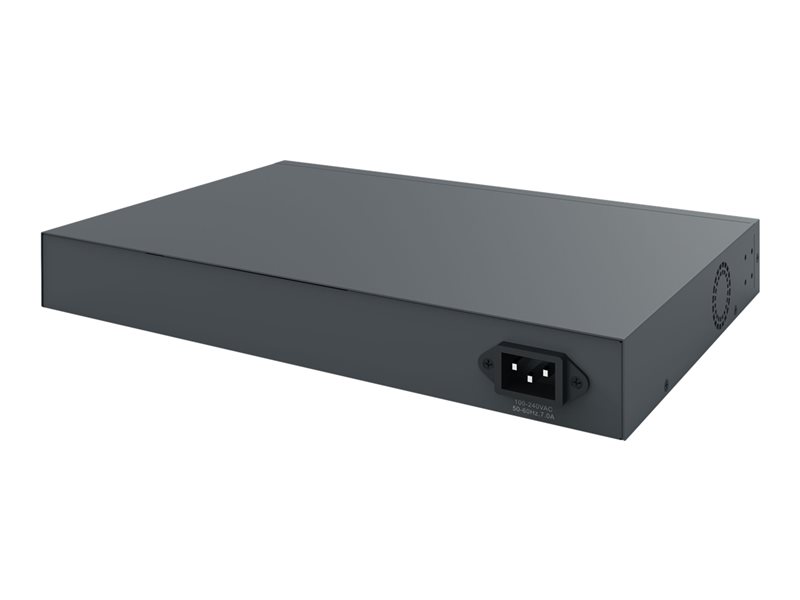

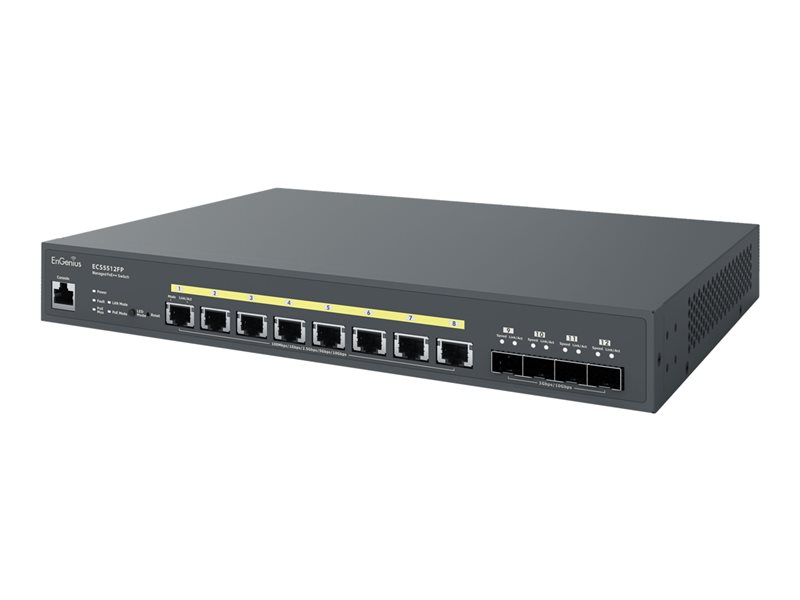

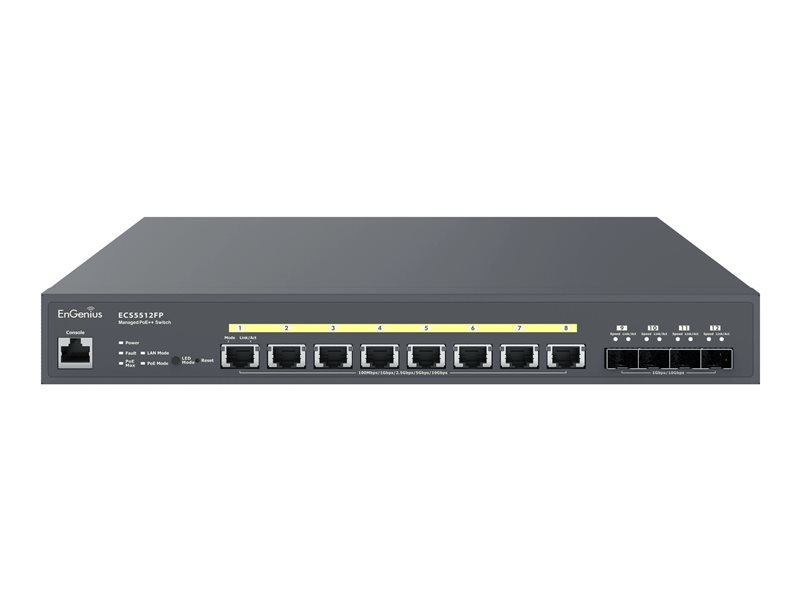

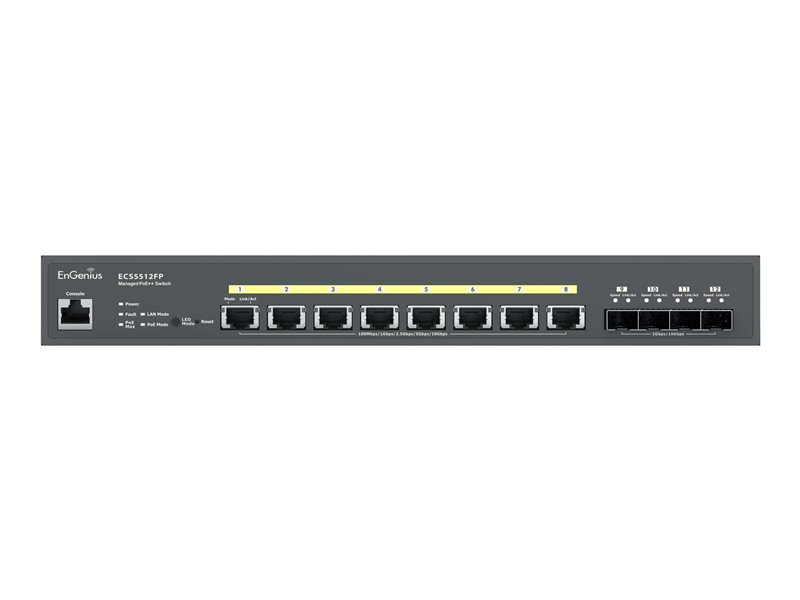

| Product Description | EnGenius Cloud ECS5512FP - switch - 8 ports - managed - rack-mountable |
| Device Type | Switch - 8 ports - L2+ - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 8 x 10/100/1000/2.5G/5G/10GBase-T (PoE++) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 420 W |
| Performance | Switching capacity: 240 Gbps |
| Capacity | Multicast groups: 256 ¦ ARP entries: 192 ¦ Static ARP entries: 192 ¦ IPv4 routes (static): 63 ¦ IPv6 routes: 21 ¦ Priority QoS queues: 8 ¦ Port security entries: 256 ¦ Packet buffer size: 2 MB ¦ VLAN IDs: 4094 ¦ VLAN groups: 256 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9KB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, IPv4, IPv6 |
| Features | Flow control, full duplex capability, IGMP snooping, Syslog support, store and forward, IPv6 support, SNTP support, STP support, RSTP support, DHCP snooping, ACL support, QoS, SSH support, MLD snooping, reset button, bandwidth control, IPv4 support, DHCP relay, Port Security, 2MB packet buffer, Multicast filtering function, CoS, cloud managed, DSCP support, MAC and IP-based ACLs support, Time-controlled ACLs support, Protocol-based VLANs support, ARP inspection, Link Aggregation, scheduler, Voice VLAN, secure backup, Selectable Operation Modes, DSCP Trust, WRR, loopback detection, VLAN Tagging, port-based VLAN, ARP filtering, import SSL certificate |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 9.1 in x 13 in x 1.7 in |
| Weight | 5.75 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Switch - 8 ports - L2+ - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 8 x 10/100/1000/2.5G/5G/10GBase-T (PoE++) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 420 W |
| Performance | Switching capacity: 240 Gbps |
| Capacity | Multicast groups: 256 ¦ ARP entries: 192 ¦ Static ARP entries: 192 ¦ IPv4 routes (static): 63 ¦ IPv6 routes: 21 ¦ Priority QoS queues: 8 ¦ Port security entries: 256 ¦ Packet buffer size: 2 MB ¦ VLAN IDs: 4094 ¦ VLAN groups: 256 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9KB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, IPv4, IPv6 |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS |
| Features | Flow control, full duplex capability, IGMP snooping, Syslog support, store and forward, IPv6 support, SNTP support, STP support, RSTP support, DHCP snooping, ACL support, QoS, SSH support, MLD snooping, reset button, bandwidth control, IPv4 support, DHCP relay, Port Security, 2MB packet buffer, Multicast filtering function, CoS, cloud managed, DSCP support, MAC and IP-based ACLs support, Time-controlled ACLs support, Protocol-based VLANs support, ARP inspection, Link Aggregation, scheduler, Voice VLAN, secure backup, Selectable Operation Modes, DSCP Trust, WRR, loopback detection, VLAN Tagging, port-based VLAN, ARP filtering, import SSL certificate |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt |
| RAM | 512 MB SDRAM |
| Flash Memory | 128 MB |
| Status Indicators | Power, fail, PoE, LAN, link/activity/speed, PoE max |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45 PoE++ ¦ 4 x 10Gbit LAN SFP+ uplink ¦ 1 x console RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Compliant Standards | IC, FCC, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x, IEEE 802.3bt |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 745.61 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.1 in |
| Depth | 13 in |
| Height | 1.7 in |
| Weight | 5.75 lbs |
