5K 60 Hz DP, 4K 60 Hz HDMI, USB 3.2 Gen 1, USB-A/C Hub, GbE, 85W PD Charging, Black - Docking station - USB-C / Thunderbolt 3 - 2 x HDMI, 2 x DP - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series USB C Dock, Dual Display - 5K 60 Hz DP, 4K 60 Hz HDMI, USB 3.2 Gen 1, USB-A/C Hub, GbE, 85W PD Charging, Black - docking station - USB-C / Thunderbolt 3 - 2 x HDMI, 2 x DP - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C / Thunderbolt 3 |
| Video Interfaces | 2 x HDMI, 2 x DP |
| Dimensions (WxDxH) | 3.2 in x 1.4 in x 9.8 in |
| Weight | 13.76 oz |
| Color | Black |
| Networking | Gigabit Ethernet |
| Power | Power adapter AC 120/230 V (50/60 Hz) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 3.2 in |
| Depth | 1.4 in |
| Height | 9.8 in |
| Weight | 13.76 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |

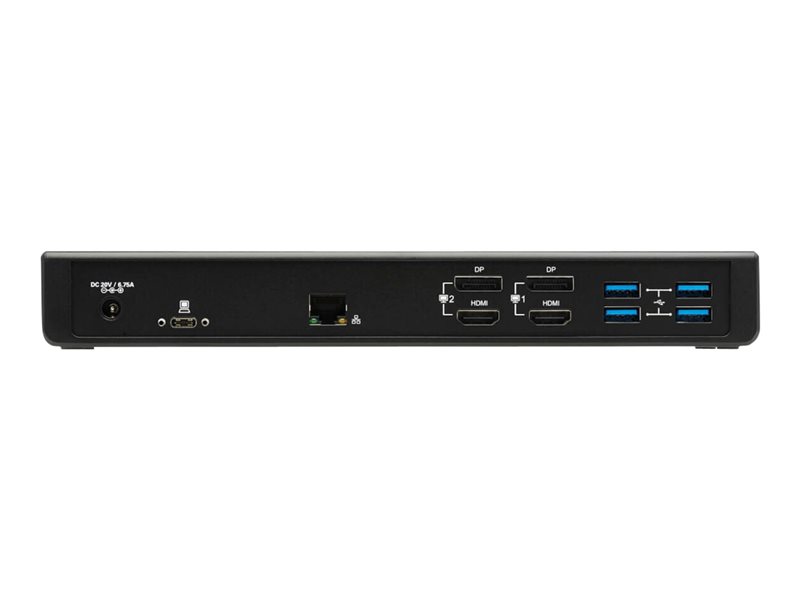

| Interfaces | 1 x USB-C with Power Delivery (85 W) - 24 pin USB-C ¦ 1 x USB 3.2 Gen 1 with Battery Charging 1.2 - 9 pin USB Type A ¦ 4 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 1 - 24 pin USB-C ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x headset - input - mini-phone stereo 3.5 mm ¦ 1 x headset - output - mini-phone stereo 3.5 mm ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x power - power DC jack 5.5 mm x 10 mm (ID: 2.5 mm) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

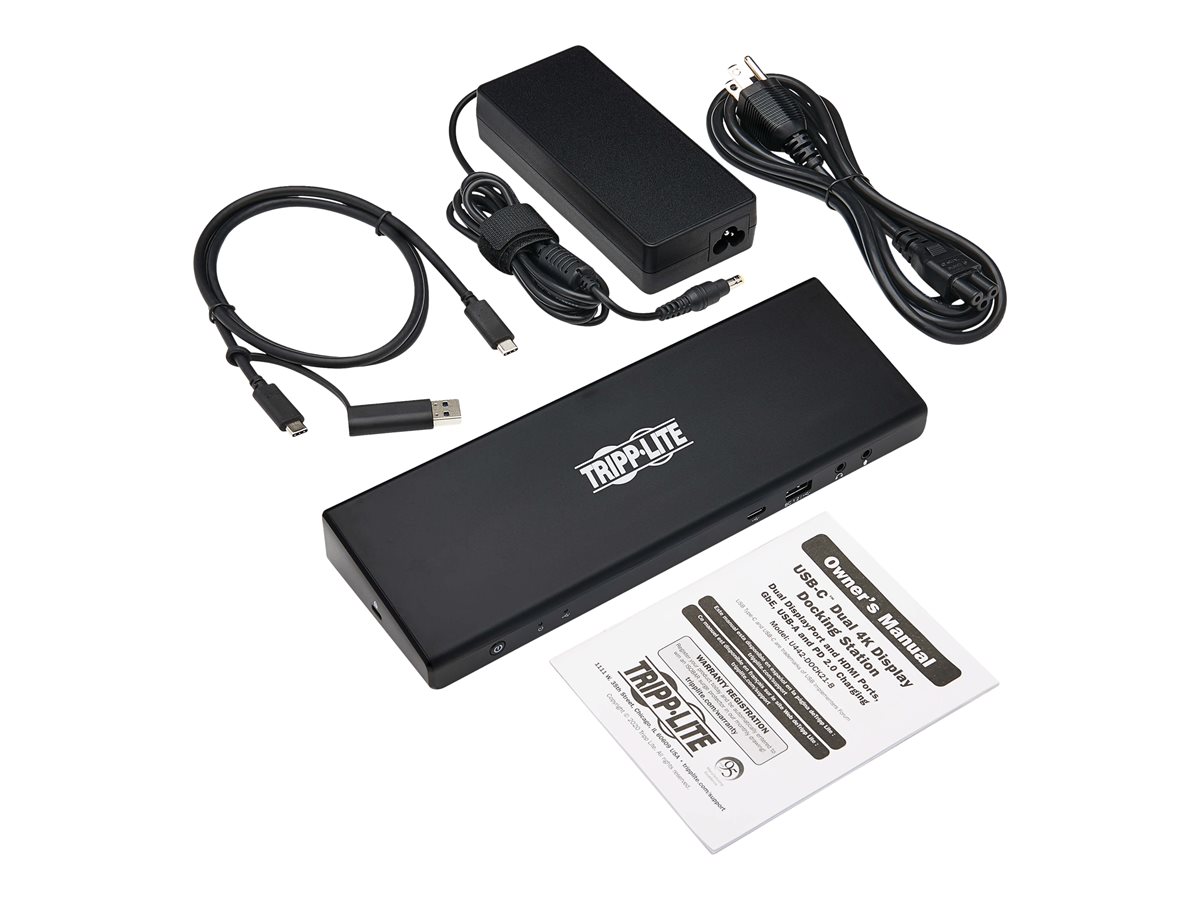

| Cables Included | USB-C cable - external - 3.3 ft ¦ USB-A to USB-C adapter |
| Features | LED indicator, dual display support, box package, Mirror Mode, Extended Mode |
| Security Slot Type | Kensington security slot |
| Compliant Standards | UL, TUV, cUL, GS, FCC, RoHS, REACH, VW-1, USB Power Delivery 2.0 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | USB 3.0, USB 3.2 Gen 1 |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 5120 x 2880 - 60 Hz (DisplayPort only) |
