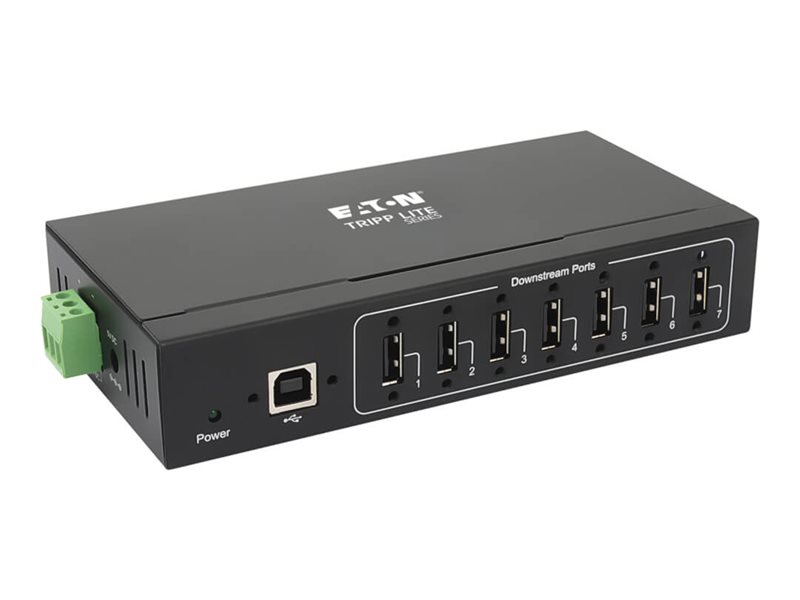

Hub - 7 x USB 2.0 - DIN rail mountable, wall-mountable
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series USB 2.0 Hub Industrial 7-Port 15kV ESD Immunity Metal Wall/DIN Mountable - hub - 7 ports |
| Device Type | Hub - 7 ports |
| Subtype | USB |
| Ports | 7 x USB 2.0 |
| Features | 15KV ESD Protector, rugged |
| Compliant Standards | USB 1.1, USB 2.0 |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 5.6 in x 2.5 in x 1 in |
| Weight | 15.87 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Hub - 7 ports |

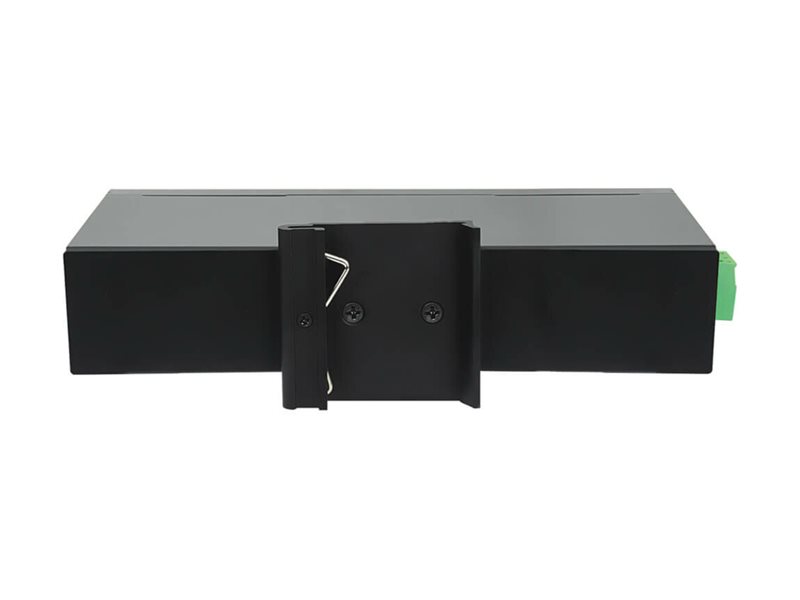

| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | USB |
| Ports | 7 x USB 2.0 |
| Features | 15KV ESD Protector, rugged |
| Compliant Standards | USB 1.1, USB 2.0 |
| Expansion / Connectivity | |

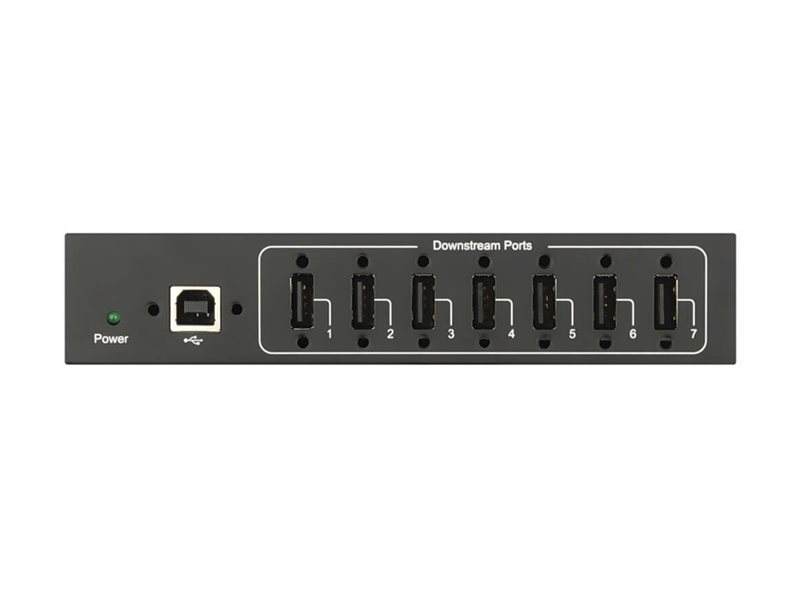

| Interfaces | 7 x USB 2.0 Type A ¦ 1 x USB 2.0 Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 3-pin terminal block, wall mounting kit |
| Cables Included | 1 x USB cable - 6 ft |
| Rack Mounting Kit | Included |
| Compliant Standards | Plug and Play, RoHS, FCC, REACH |
| Power | |
| Voltage Required | AC 120/230 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | 14 °F |
| Max Storage Temperature | 176 °F |
| Dimensions & Weight | |
| Width | 5.6 in |
| Depth | 2.5 in |
| Height | 1 in |
| Weight | 15.87 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.1 in |
| Shipping Depth | 6.3 in |
| Shipping Height | 2.8 in |
| Shipping Weight | 19.05 oz |
