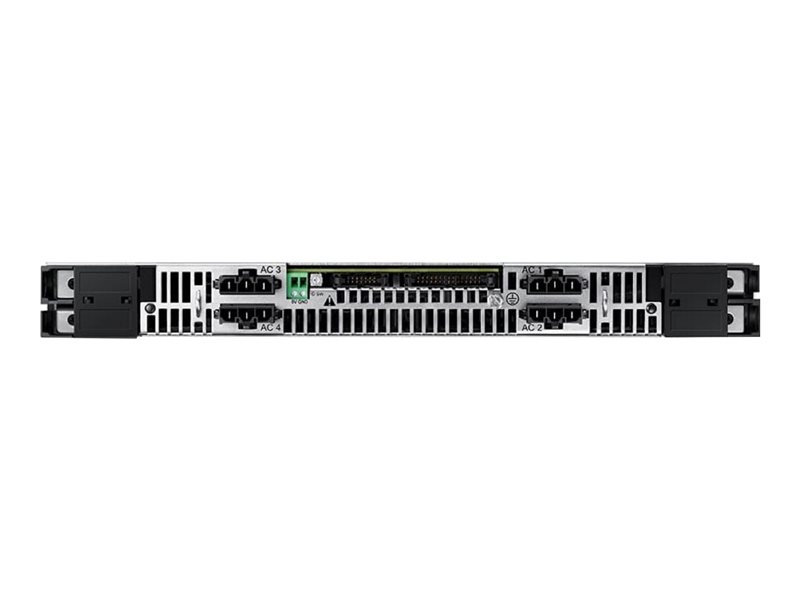

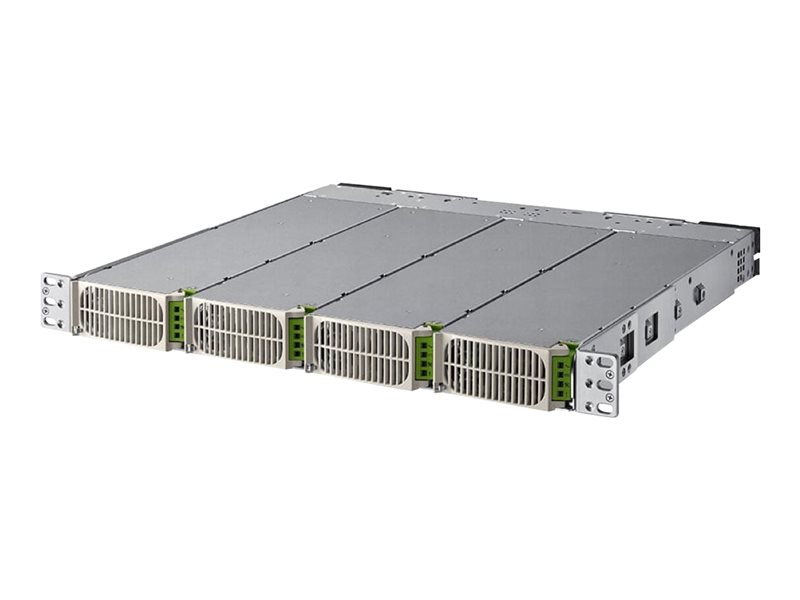

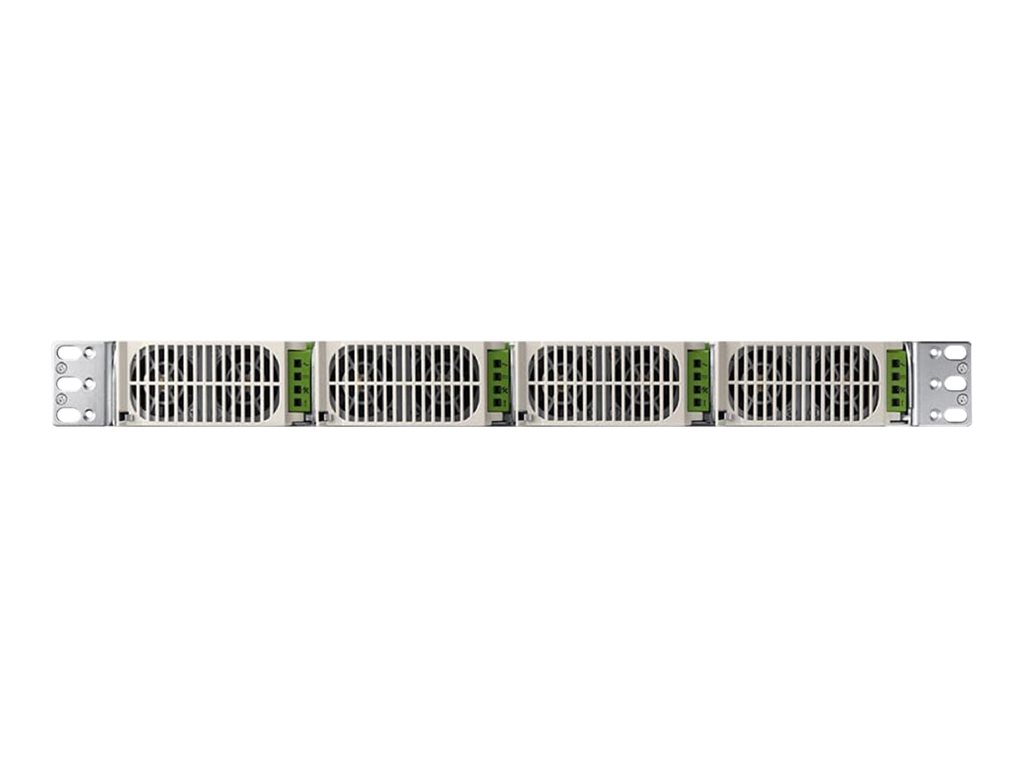

Power supply - hot-plug (plug-in module) - AC 100-120/200-277 V - 14000 Watt - 1U - for The Wall IW008J-R, IW012J-R, IW016J-R
| Main Specifications | |
|---|---|
| Product Description | Samsung VG-RPWSKIT - power supply - hot-plug - 14000 Watt |
| Device Type | Power supply - hot-plug - plug-in module |
| Rack Size | 1U |
| Weight | 31.42 lbs |
| Input Voltage | AC 100-120/200-277 V |
| Output Voltage | 48 V |
| Power Capacity | 14000 Watt |
| Power Redundancy | Yes |
| Included Accessories | 6 DC output lugs |
| Dimensions (WxDxH) | 19 in x 16.9 in x 1.7 in |
| Designed For | The Wall IW008J-R, IW012J-R, IW016J-R |
| General | |
| Device Type | Power supply - hot-plug - plug-in module |
| Height (Rack Units) | 1U |
| Miscellaneous | |
| Included Accessories | 6 DC output lugs |
| Cables Included | 6 x AC input cable |
| Features | Front to rear airflow, 10 years LED lifetime |
| Compliant Standards | UL 60950-1, EMC Class A, CB 60950-1 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% RH |
| Sound Emission | 55 dBA |
| Power Device | |
| Supported Power Modules | 4 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 3+1 |
| Input Voltage | AC 100-120/200-277 V |
| Output Voltage | 48 V |
| Power Capacity | 14000 Watt |
| Efficiency | 90% (240 VAC) |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 16.9 in |
| Height | 1.7 in |
| Weight | 31.42 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.6 in |
| Shipping Depth | 21.3 in |
| Shipping Height | 16.5 in |
| Shipping Weight | 72.09 lbs |
| Compatibility Information | |
| Designed For | Samsung The Wall IW008J-R, IW012J-R, IW016J-R |
