KVM / audio / USB extender
| Main Specifications | |
|---|---|

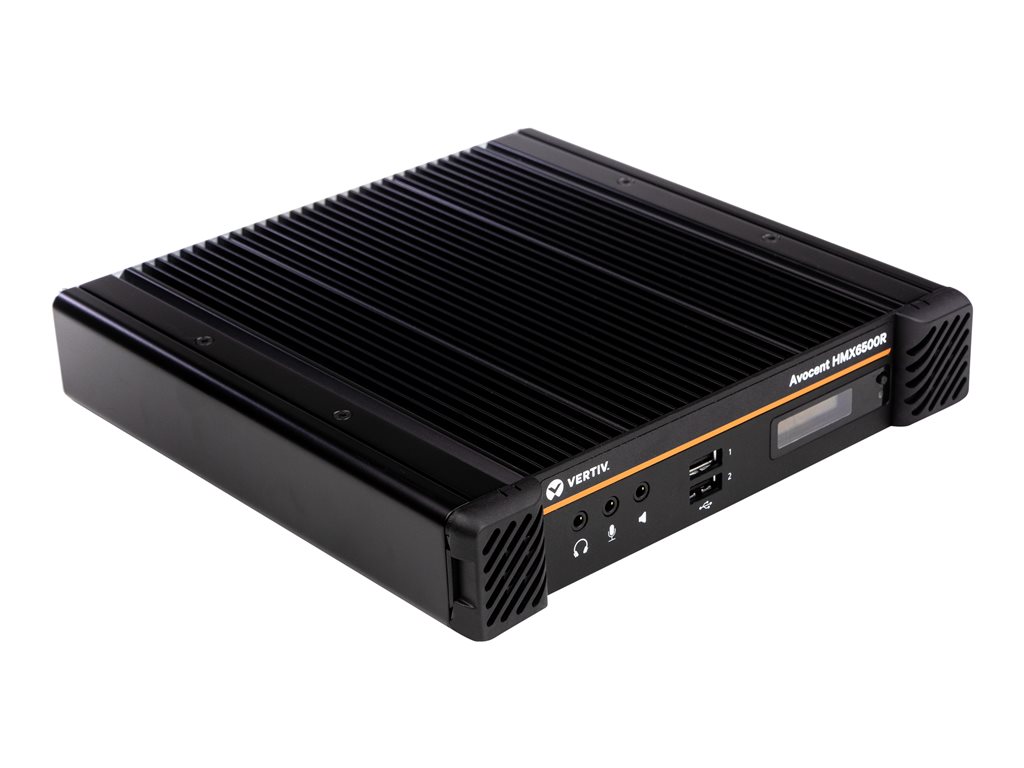

| Product Description | Avocent HMX HMX6500R - KVM / audio / USB extender |
| Device Type | KVM / audio / USB extender |
| Form Factor | External |
| Dimensions (WxDxH) | 8.5 in x 1.6 in x 8.3 in |
| Weight | 3.97 lbs |
| General | |
| Device Type | KVM / audio / USB extender |
| Form Factor | External |
| Expansion / Connectivity | |

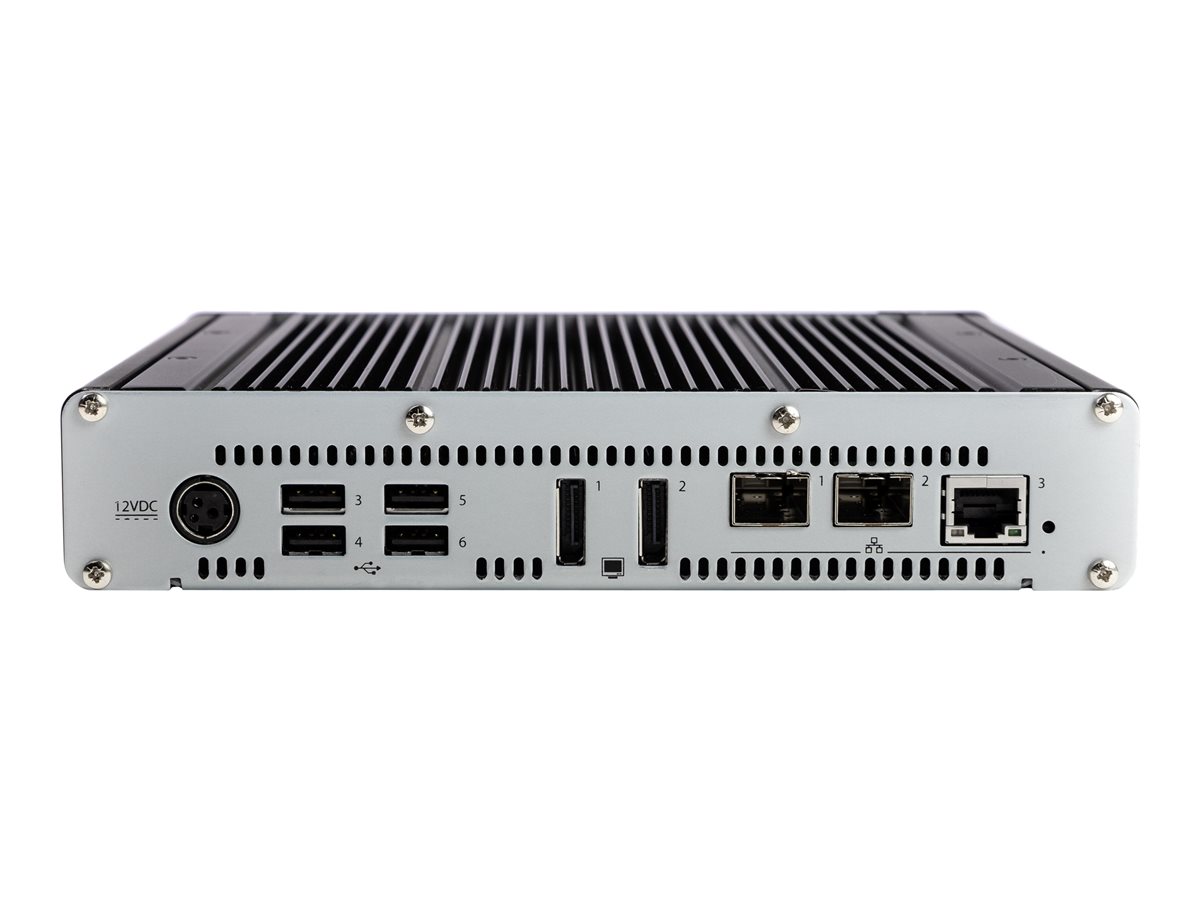

| Interfaces | 5 x USB - Type A ¦ 2 x DisplayPort ¦ 1 x audio (output) - mini jack ¦ 1 x SPDIF ¦ 1 x 10Gb Ethernet - RJ-45 ¦ 1 x audio (input) - mini jack ¦ 2 x - SFP+ |
| Miscellaneous | |
| Compliant Standards | FCC |
| Networking | |
| Connectivity Technology | Wired |
| Max Resolution | 2560 x 1600 @ 60 Hz |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 20 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.5 in |
| Depth | 1.6 in |
| Height | 8.3 in |
| Weight | 3.97 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.6 in |
| Shipping Depth | 5.7 in |
| Shipping Height | 11.2 in |
| Shipping Weight | 5.51 lbs |
