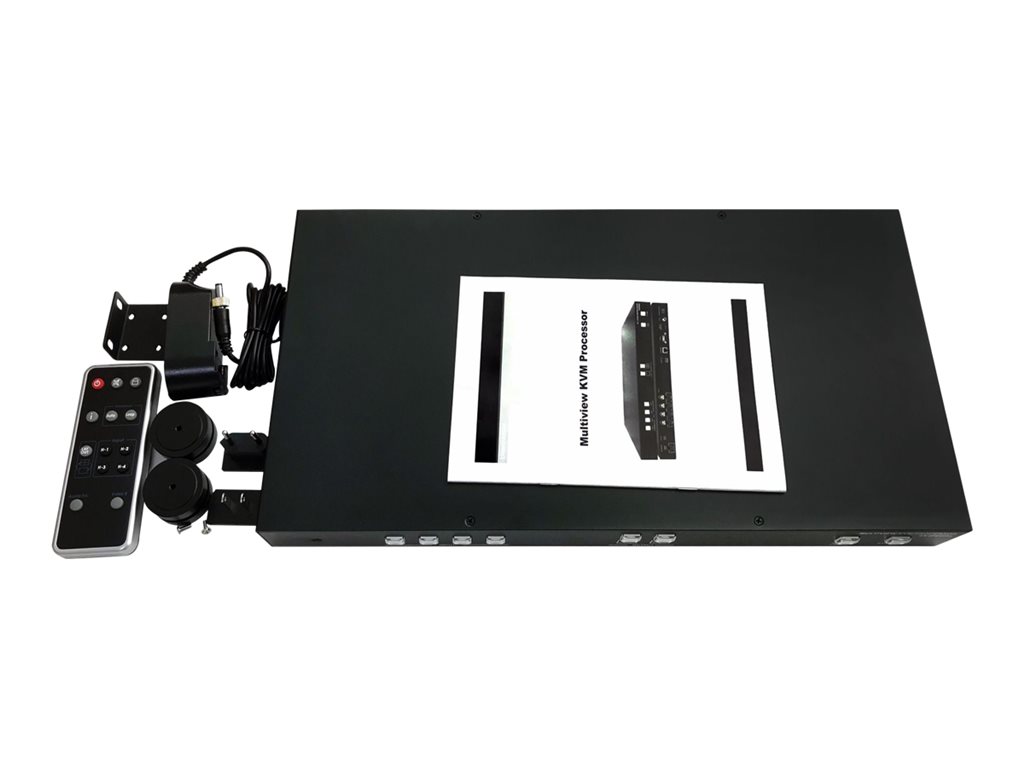

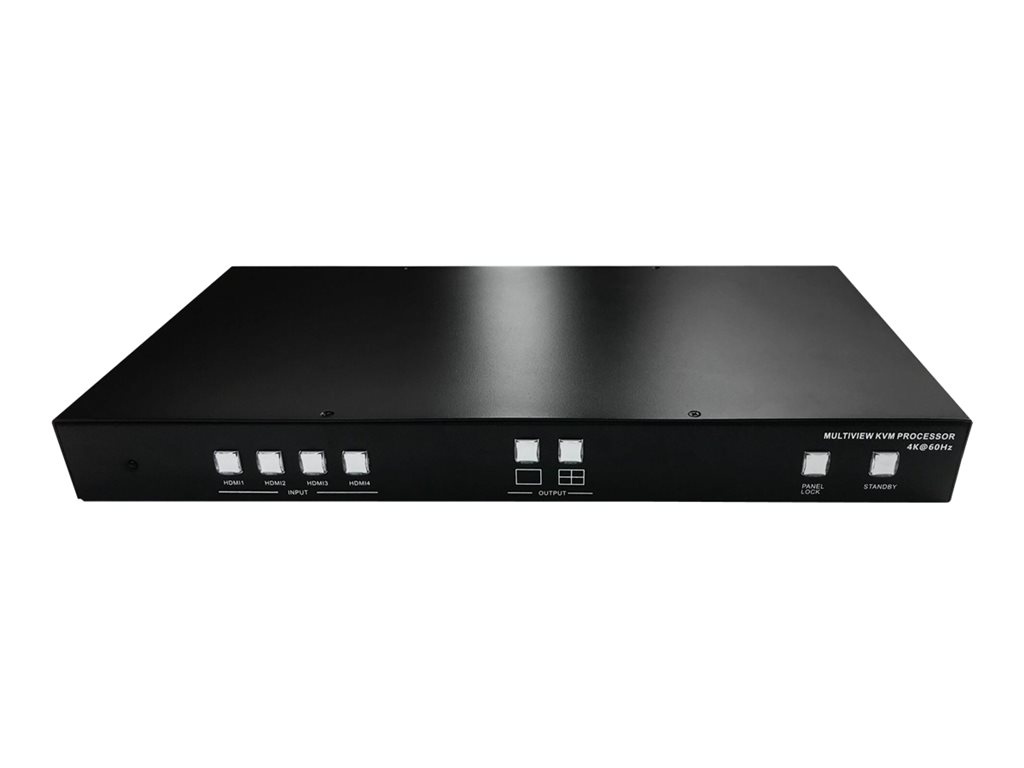

KVM / USB switch - 4 x KVM / USB - 1 local user - desktop
| Main Specifications | |
|---|---|
| Product Description | SIIG Quad-View HDMI 2.0 4K 60Hz KVM MultiView Processor - KVM / USB switch |
| Device Type | KVM / USB switch |
| Enclosure Type | 1U |
| Subtype | HDMI / USB |
| Ports | 4 x KVM / USB |
| KVM Users Qty | 1 local user |
| Features | 4K resolution support, 7.1 channel audio support, metal housing, DTS support, Dolby Digital support |
| Compliant Standards | HDCP 2.2 |
| Dimensions (WxDxH) | 17.3 in x 9.1 in x 1.8 in |
| Weight | 6.83 lbs |
| Color | Black |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM / USB switch |
| Enclosure Type | Desktop 1U |
| Subtype | HDMI / USB |
| Ports | 4 x KVM / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | 4K resolution support, 7.1 channel audio support, metal housing, DTS support, Dolby Digital support |
| Compliant Standards | HDCP 2.2 |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input Type A ¦ 2 x HDMI output Type A ¦ 4 x USB 2.0 Type B ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 1 x serial (RS-232) DB-9 ¦ 1 x LAN RJ-45 ¦ 1 x audio output terminal block ¦ 1 x USB 2.0 Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black |
| Rack Mounting Kit | Included |
| Power | |
| Power Device | External power adapter |
| Power Provided | DC 12 V - 2 A |
| Power Consumption Operational | 15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 9.1 in |
| Height | 1.8 in |
| Weight | 6.83 lbs |
