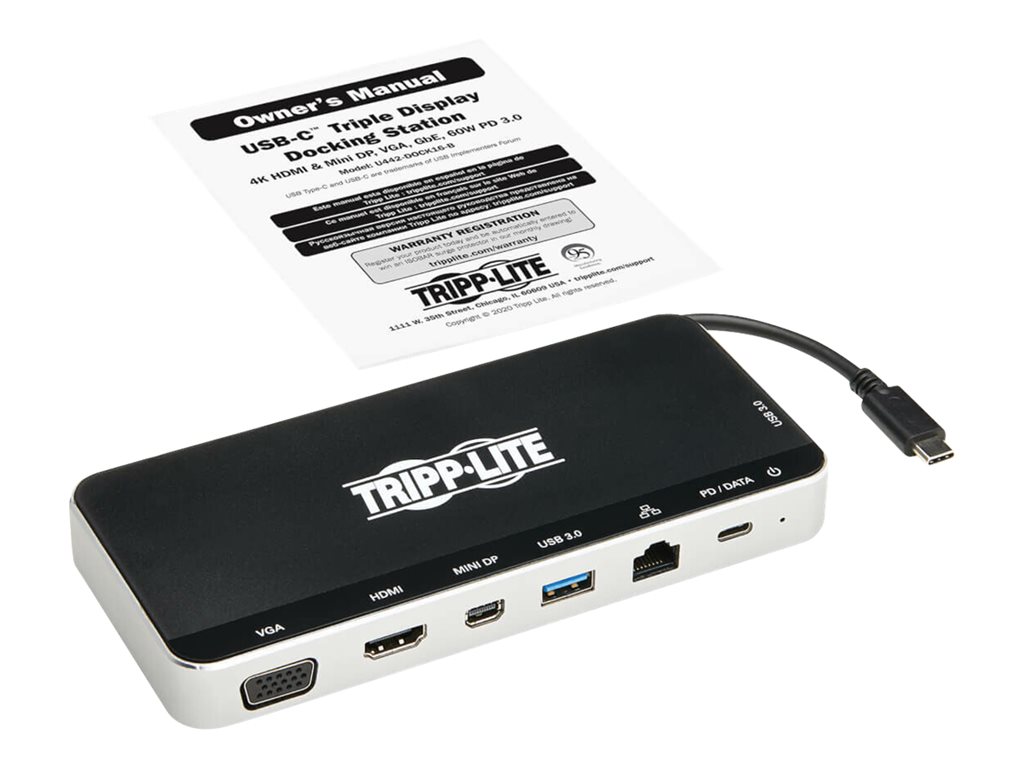

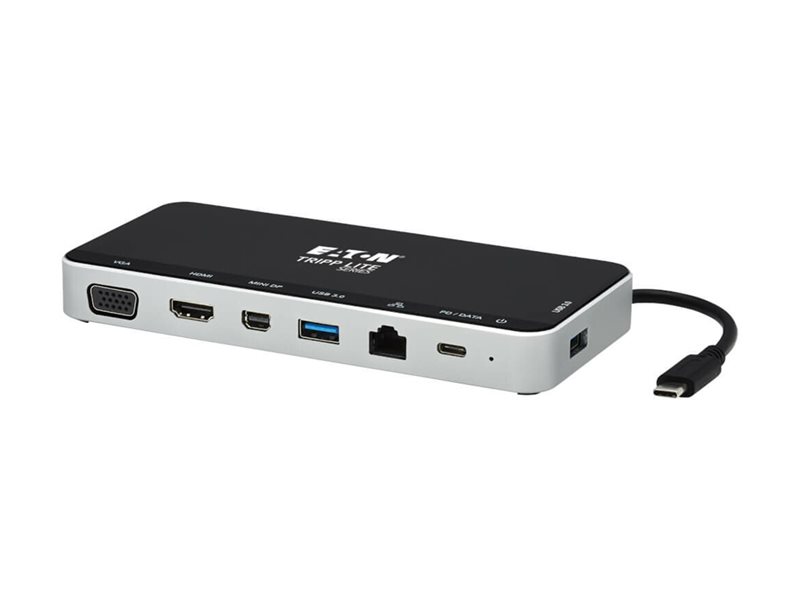

Docking station - USB-C - VGA, HDMI, Mini DP - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series USB C Docking Station Hub USB Dock Triple Display 4K HDMI VGA USB A/C Gbe - docking station - USB-C - VGA, HDMI, Mini DP - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C |
| Video Interfaces | VGA, HDMI, Mini DP |
| Dimensions (WxDxH) | 3.9 in x 0.4 in x 1.3 in |
| Weight | 2.4 oz |
| Color | Black |
| Networking | Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 3.9 in |
| Depth | 0.4 in |
| Height | 1.3 in |
| Weight | 2.4 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - Mini DisplayPort - Mini DisplayPort ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB-C with Power Delivery (60 W) - 24 pin USB-C (power only) ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

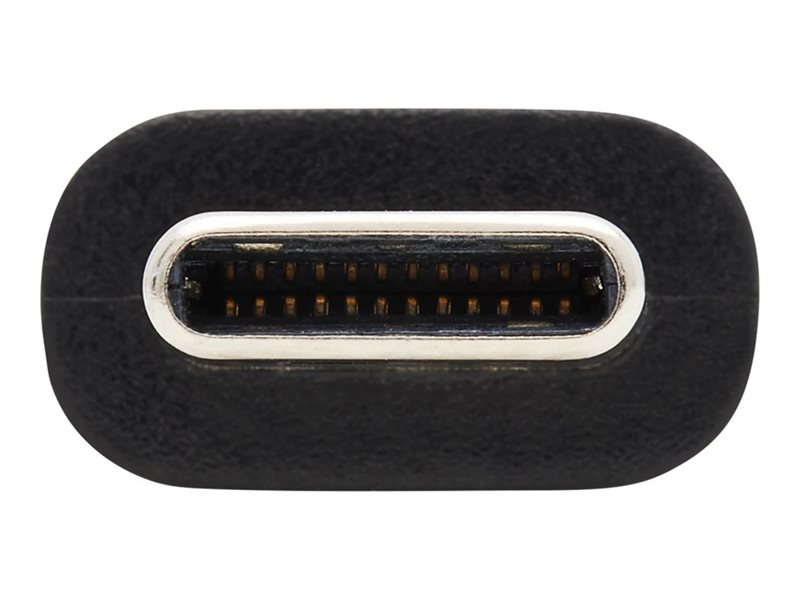

| Cables Included | 1 x USB-C cable - integrated |
| Features | LED indicator, MST (multi-stream transport), DisplayPort Alt Mode, 60W power delivery |
| Compliant Standards | FCC, RoHS, REACH, DisplayPort 1.2, HDCP 1.4, USB Power Delivery 3.0 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, USB 3.2 Gen 1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Video | |
| Max Resolution Details | 4096 x 2160 - 30 Hz (DisplayPort and HDMI simultaneously) ¦ 1920 x 1200 - 60 Hz (VGA only) |
