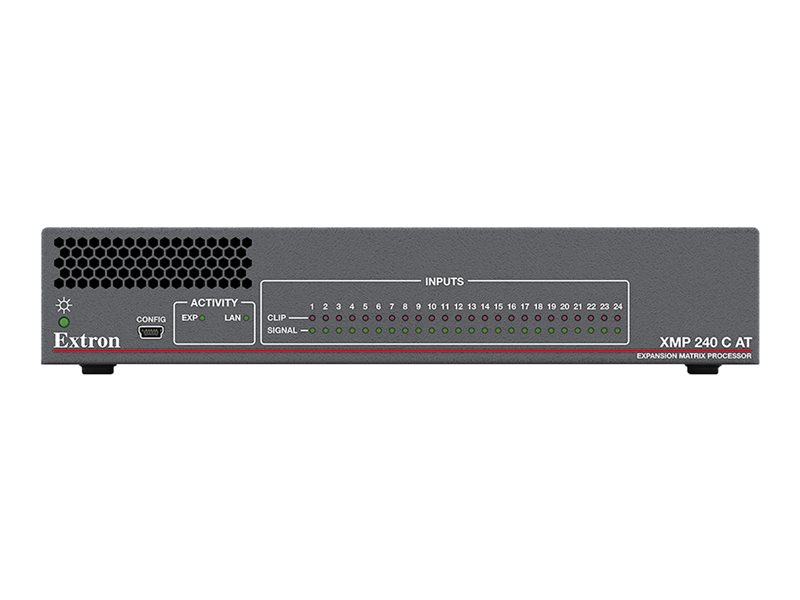

Dante Expansion DSP Matrix processor
| Main Specifications | |
|---|---|
| Product Description | Extron XMP 240 C AT Dante Expansion DSP Matrix processor |
| Type | Dante Expansion DSP Matrix processor |
| Dimensions (WxDxH) | 8.7 in - 9.5 in - 1.7 in |
| Weight | 31.74 oz |
| Manufacturer Warranty | 3 years |
| General | |
| Type | Dante Expansion DSP Matrix processor |
| Width | 8.7 in |
| Depth | 9.5 in |
| Height | 1.7 in |
| Weight | 31.74 oz |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 9.8 Watt |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Kit Content | |
| Kit Content | Power adapter |
| Terminals | |

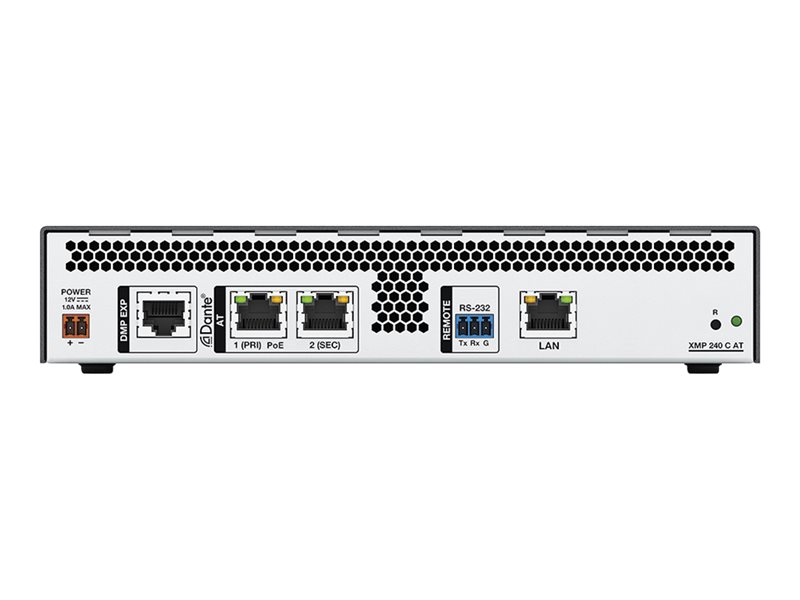

| Terminals | (1) x Dante - RJ-45 - PoE ¦ (1) x Dante - RJ-45 ¦ (1) x EXP port - RJ-45 ¦ (1) x network - RJ-45 ¦ (1) x serial - 3-pin terminal block - RS-232 ¦ (1) x USB 2.0 - mini-USB Type B |
| Studio & Production Equipment | |
| Features | Power Over Ethernet support, Acoustic Echo Cancellation (AEC) technology, Dante audio network interface, AES67 support, ProDSP 64?bit floating point signal processing |
