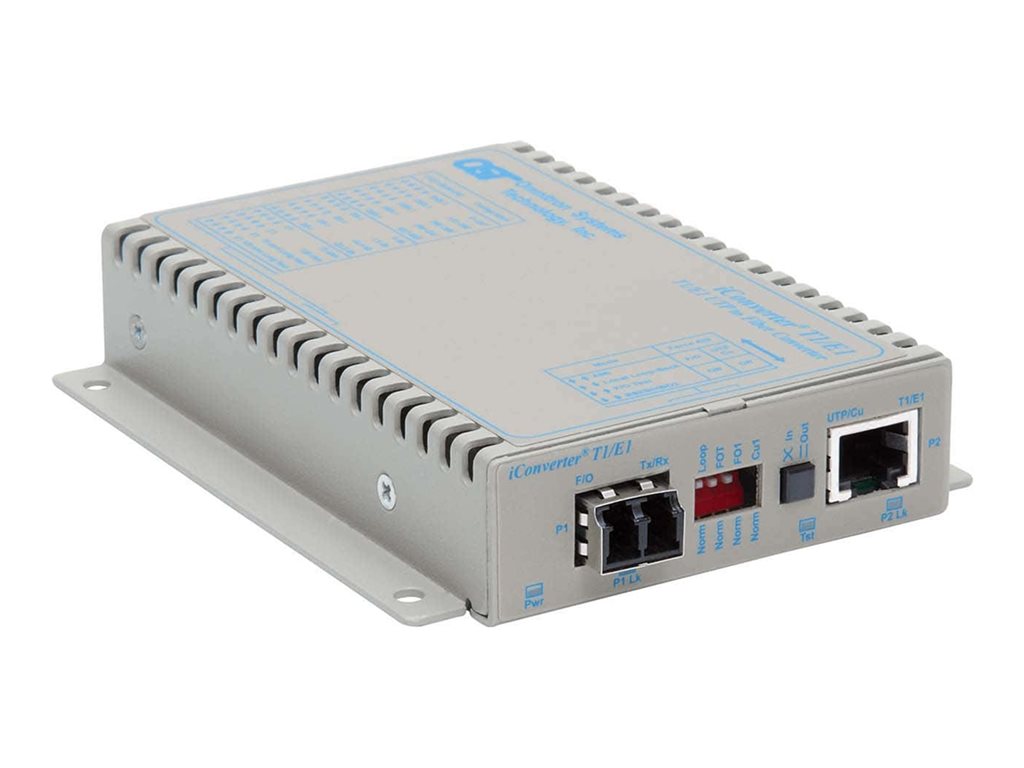

Fiber media converter - RJ-45/RJ-48 / LC single-mode - up to 18.6 miles - T-1/E-1 - 1310 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Omnitron iConverter T1/E1 - fiber media converter - TAA Compliant |
| Device Type | Fiber media converter - RJ-45/RJ-48 / LC single-mode |
| Form Factor | External |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 18.6 miles |
| Dimensions (WxDxH) | 3.8 in x 4.8 in x 1 in |
| Weight | 16 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x T1/E1 - RJ-45/RJ-48 female ¦ 1 x T1/E1 - LC single-mode female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 590,000 hours |
| Compliant Standards | ITU-T G.755, ETSI 300-166, ITU-T G.823, UL, UKCA, FCC Class A certified, BAA, NDAA, RoHS, REACH, WEEE |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Optical Wave Length | 1310 nm |
| Line Rate | T-1/E-1 |
| Max Transfer Distance | 18.6 miles |
| Features | Wall mountable, rack mountable (1RU) |
| Compliant Standards | ANSI T1.403, ANSI T1.102, G.703, G.704, G.736 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.8 in |
| Depth | 4.8 in |
| Height | 1 in |
| Weight | 16 oz |
