Patch panel - wall mountable - CAT 6 - UTP - RJ-45 X 12
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TC-P12C6V - patch panel |
| Product Type | Patch panel - CAT 6 - RJ-45 X 12 |
| Placing / Mounting | Wall mountable |

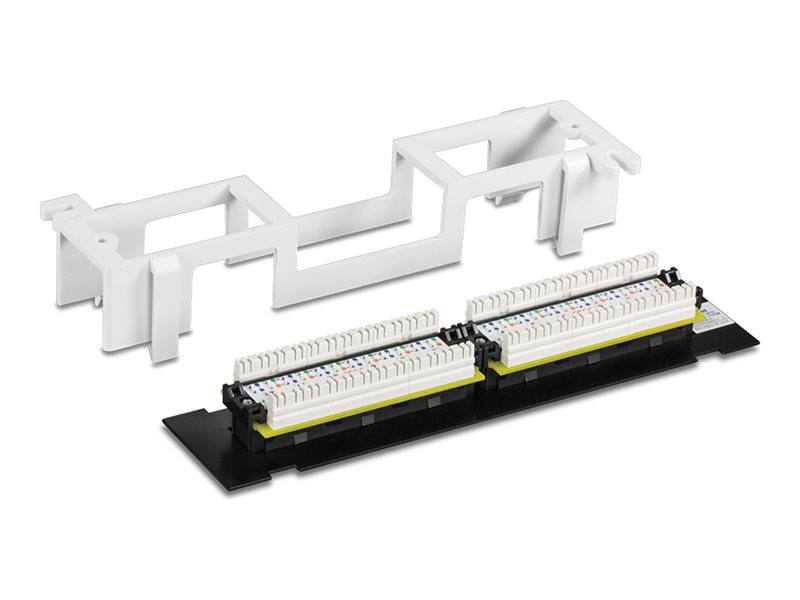

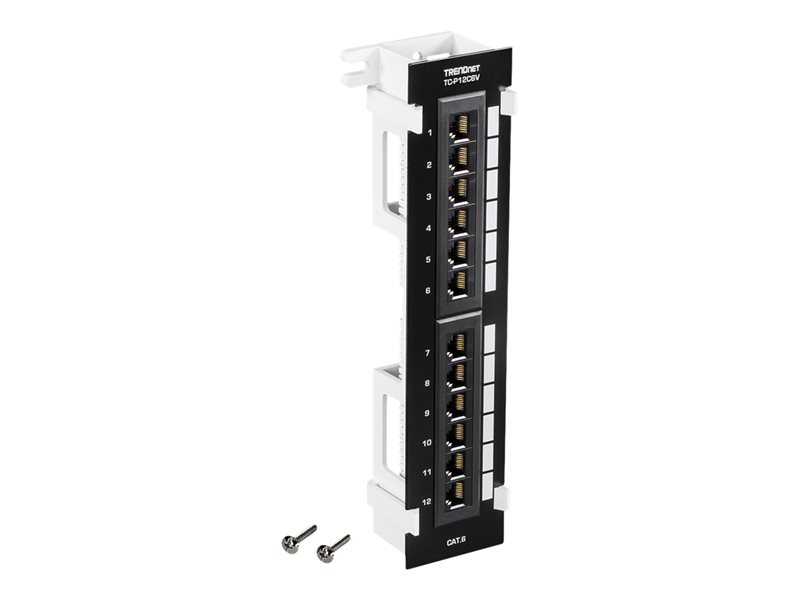

| Package Content | Screws, wall bracket |
| Dimensions (WxDxH) | 10 in x 2.2 in x 1.9 in |
| Weight | 10.3 oz |
| Product Material | SPCC steel |
| Port Qty | 12 ports |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Patch panel - CAT 6 |
| Placing / Mounting | Wall mountable |
| Package Content | Screws, wall bracket |
| Product Material | SPCC steel |
| Width | 10 in |
| Depth | 2.2 in |
| Height | 1.9 in |
| Weight | 10.3 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Vertical orientation, 90° angled, horizontal orientation |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Cabling & Wiring | |
| Port Qty | 12 ports |

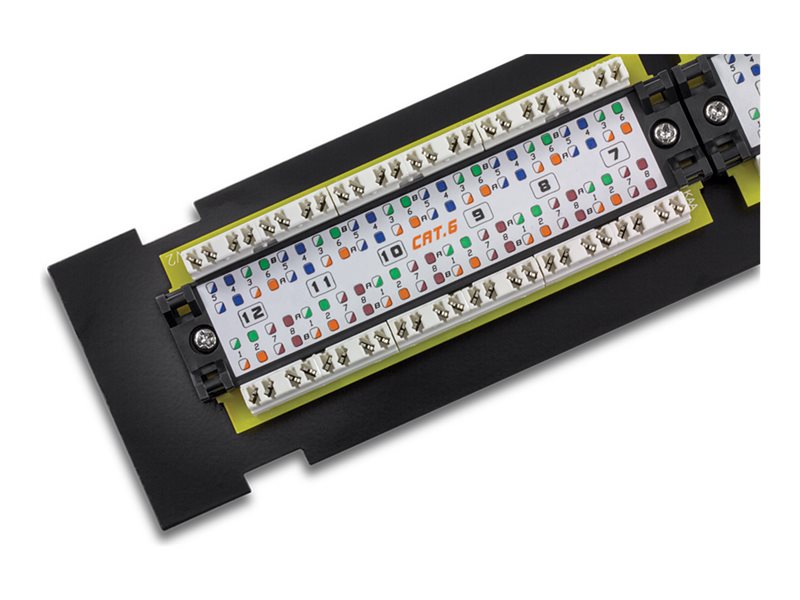

| Termination Type | 110 type termination, LSA (Krone), IDC |
| Technology | Unshielded twisted pair (UTP) |
| Features | Gold-plated connectors, color-coded, 22-26 AWG |
| Connector Provided | 12 x RJ-45 female |
