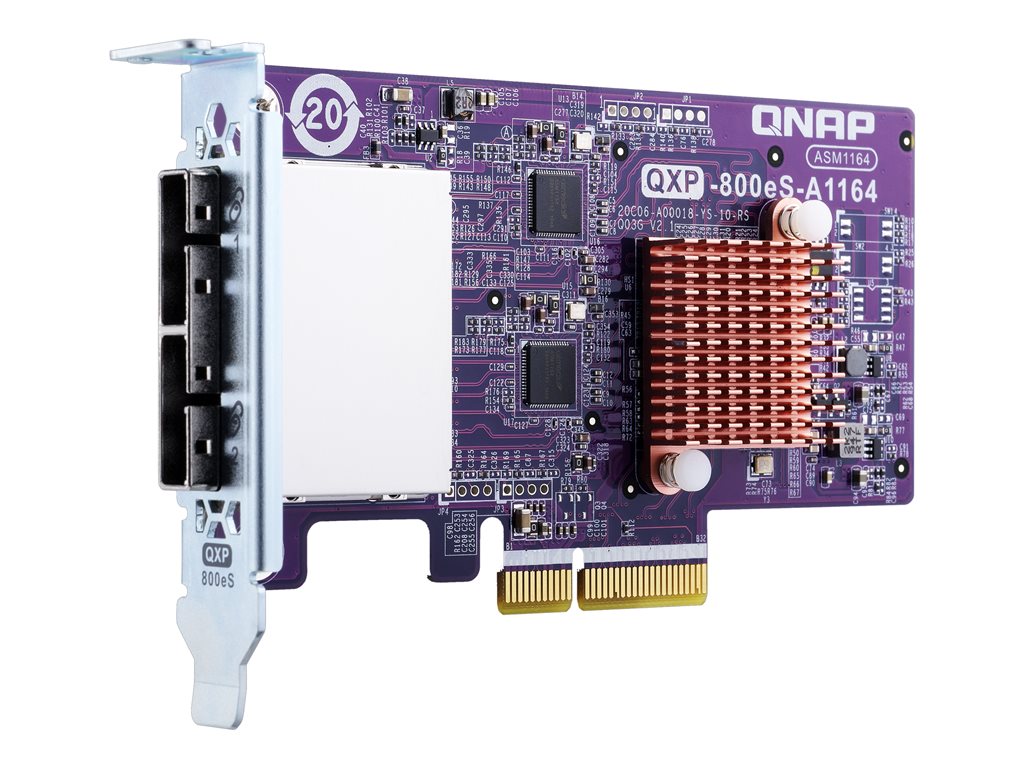

Storage controller - SATA 6Gb/s / SAS 6Gb/s - low profile - RAID JBOD - PCIe 3.0 x4
| Main Specifications | |
|---|---|
| Product Description | QNAP QXP SATA Expansion Card - storage controller - SATA 6Gb/s / SAS 6Gb/s - PCIe 3.0 x4 |
| Device Type | Storage controller - plug-in card - low profile |
| Bus Type | PCIe 3.0 x4 |
| Interface | SATA 6Gb/s / SAS 6Gb/s |
| Data Transfer Rate | 6 Gbit/s |
| Supported Devices | Solid state drive |
| Max Storage Devices Qty | 8 |
| RAID Level | JBOD |
| System Requirements | Windows 8 or later, Linux Kernel 3.10 or later, Microsoft Windows Server 2012 R2 or later |
| Dimensions (WxDxH) | 0.7 in x 4.7 in x 2.7 in |
| General | |
| Device Type | Storage controller - plug-in card - low profile |
| Host Bus | PCIe 3.0 x4 |
| Expansion / Connectivity | |
| Interfaces | 2 x SAS 6Gb/s - 26 pin 4x Mini SAS |
| Miscellaneous | |
| Cables Included | 1 x mini SAS cable - external - 3.3 ft |
| Software / System Requirements | |
| OS Required | Windows 8 or later, Linux Kernel 3.10 or later, Microsoft Windows Server 2012 R2 or later |
| Storage Controller | |
| Interface | SATA 6Gb/s / SAS 6Gb/s |
| Data Transfer Rate | 6 Gbit/s |
| Supported Devices | Solid state drive |
| Max Storage Devices Qty | 8 |
| RAID Level | JBOD |
| Processor | ASMedia ASM1164 |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 4.7 in |
| Height | 2.7 in |
