Photoelectric sensor - wired
| Main Specifications | |
|---|---|

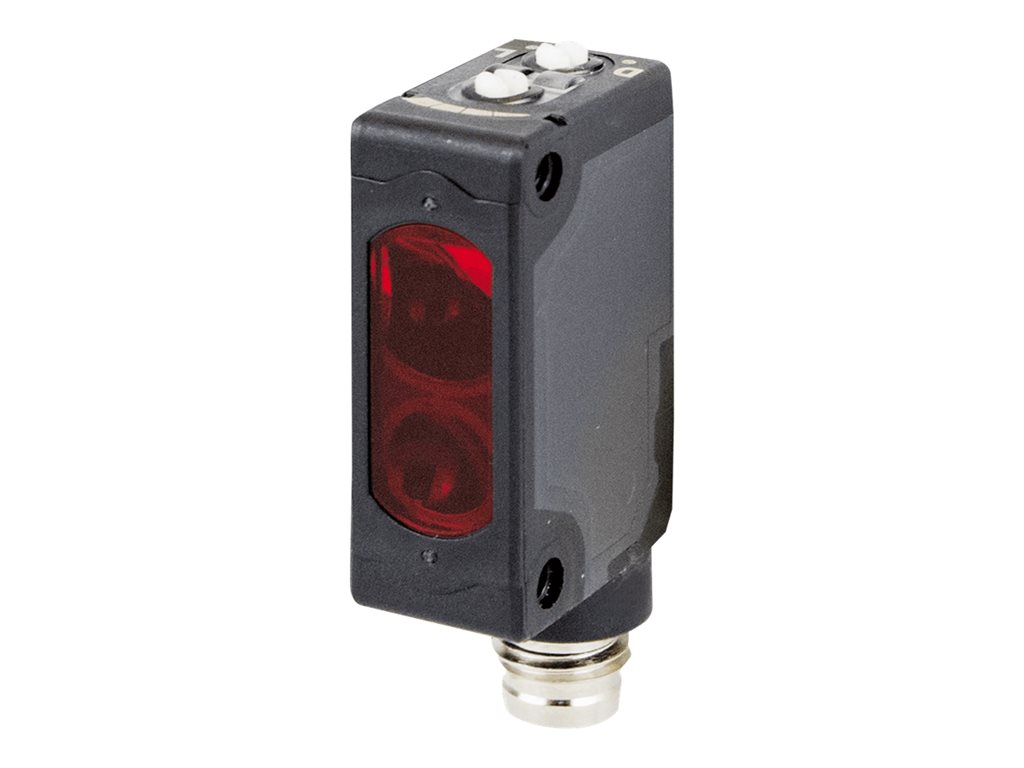

| Product Description | Datalogic S3Z Series S3Z-PR-5-B01-PD - photoelectric sensor |
| Product Type | Photoelectric sensor |
| Connectivity | Wired |
| Dimensions (WxDxH) | 0.4 in x 0.7 in x 1.2 in |
| General | |
| Product Type | Photoelectric sensor |
| Connectivity Technology | Wired |
| Interfaces Details | M8 (4-pole) |
| Features | Polarized retroreflective optic function, PNP output, 50-250 mm background suppression, 0-700 mm long distance diffuse proximity, 0.05-4 m polarized retroreflective, red LED 665 nm light emission, dark trimmer, 2 LEDs, short-circuit protection, response time 1 ms, switching frequency 500 Hz, shock-resistant, PC lens |
| Miscellaneous | |
| Product Material | Polybutylene terephthalate, polycarbonate |
| Voltage Required | DC 10 - 30 V |
| Compliant Standards | cULus, IP67, EN 60947-5-2, EN 60068-2-6, EN 60068-2-27 |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 131 °F |
| Dimensions & Weight | |
| Width | 0.4 in |
| Depth | 0.7 in |
| Height | 1.2 in |
| Weight | 0.35 oz |
