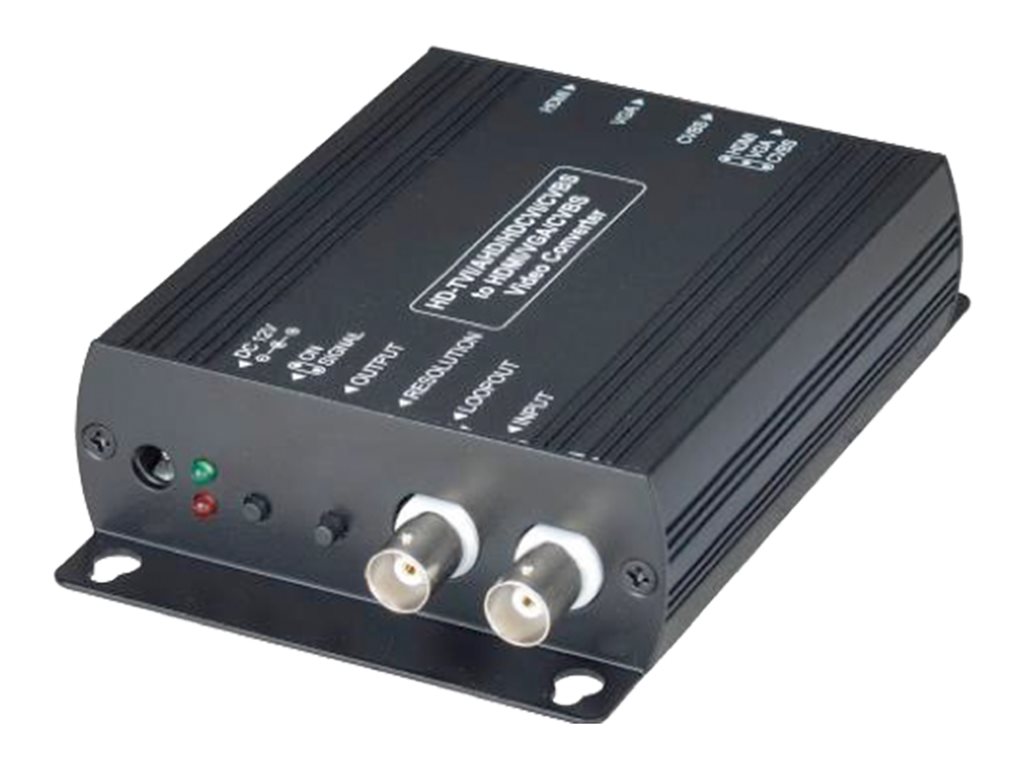

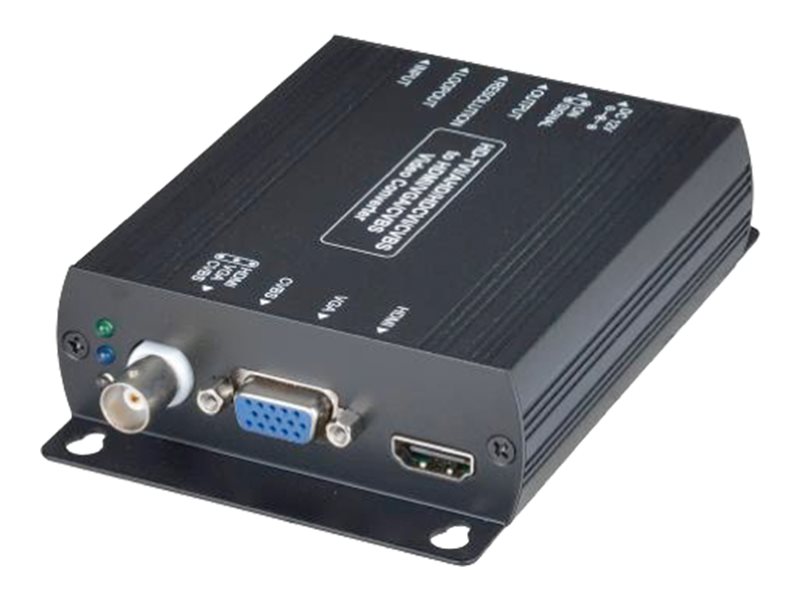

AHD/HD-CVI/HD-TVI to HDMI/VGA/composite video converter
| Main Specifications | |
|---|---|
| Product Description | Speco TVIHD AHD/HD-CVI/HD-TVI to HDMI/VGA/composite video converter |
| Type | AHD/HD-CVI/HD-TVI to HDMI/VGA/composite video converter |
| Supported Video Standards | PAL, NTSC |
| Dimensions (WxDxH) | 5.1 in - 3.5 in - 1.2 in |
| Weight | 9.59 oz |
| General | |
| Type | AHD/HD-CVI/HD-TVI to HDMI/VGA/composite video converter |
| Width | 5.1 in |
| Depth | 3.5 in |
| Height | 1.2 in |
| Weight | 9.59 oz |
| Power | |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 0 - 95% |
| Terminals | |
| Terminals | (1) x AHD/HD-CVI/HD-TVI input - BNC - with loop through ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x VGA output - 15 pin HD D-Sub (HD-15) ¦ (1) x composite video output - BNC |
| Studio & Production Equipment | |
| Supported Video Standards | PAL, NTSC |
| Features | 1080p support |
