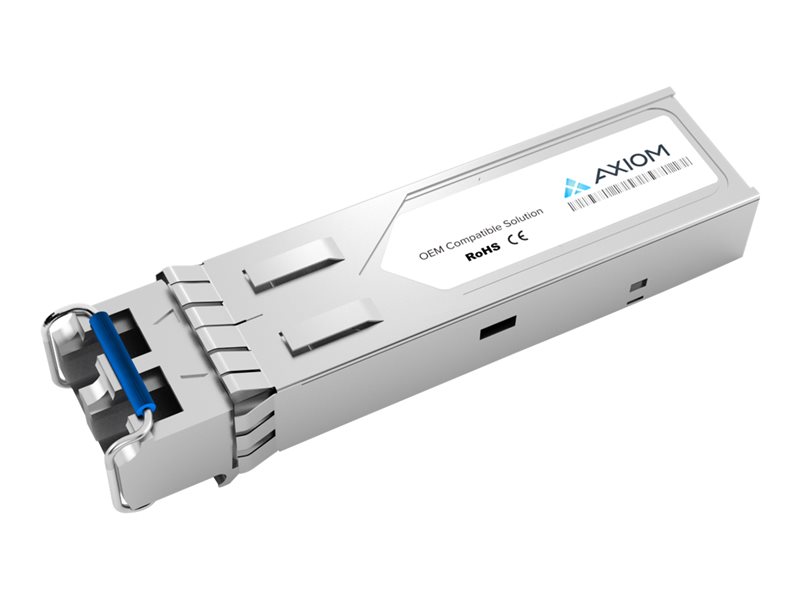

SFP (mini-GBIC) transceiver module (equivalent to: Dell 407-BBOR) - 1GbE - 1000Base-SX - LC multi-mode - up to 1640 ft - 850 nm - for Dell Networking N1148; PowerSwitch S4112, S5212, S5232, S5296; Dell EMC Networking X1052
| Main Specifications | |
|---|---|
| Product Description | Axiom Dell 407-BBOR Compatible - SFP (mini-GBIC) transceiver module - 1GbE |
| Device Type | SFP (mini-GBIC) transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-SX |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 1640 ft |
| OEM Manufacturer Equivalent Part Number | Dell 407-BBOR |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | Dell Force10; Networking C1048, C7004, C7008, C9010, N1148, N2024, N2048, N3024, N3048, N4032, N4064, S3048, S4810, S5000, S6000, S6010, X1008, X1018, X4012; PowerConnect 70XX; PowerEdge FX2, VRTX, VRTX M520; PowerSwitch S4112, S5212, S5232, S5296; Dell EMC Networking N3132, S4048, X1026, X1052 |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA |
| OEM Manufacturer Equivalent Part Number | Dell 407-BBOR |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1640 ft |
| Compliant Standards | IEEE 802.3z |
| Compatibility Information | |
| Designed For | Dell Force10 MXL blade, S4810 High-Performance, S4820T, S50 High Performance Data Center Switch, S55, S60, Z9000, Z9500 ¦ Dell Force10 ExaScale E-Series E1200i, E600i ¦ Dell Networking C1048P, C7004, C7008, C9010, N1148P-ON, N2024, N2024P, N2048, N2048P, N3024, N3024F, N3024P, N3048, N3048P, N4032, N4032F, N4064, N4064F, S3048-ON, S4810-ON, S5000, S6000, S6000-ON, S6010-ON, X1008, X1008P, X1018, X1018P, X4012 ¦ Dell PowerConnect 2824, 2848, 3524, 3524P, 3548, 3548P, 5524, 5524P, 5548, 5548P, 6224, 6224F, 6224P, 6248, 6248P, 7024, 7024F, 7024P, 7048, 7048P, 7048R, 7048RA, 8024F, M8024, M8024-k ¦ Dell PowerEdge FX2, VRTX, VRTX M520, VRTX M620 ¦ Dell PowerSwitch S4112T-ON, S5212F-ON, S5232F-ON, S5296F-ON ¦ Dell EMC Networking N3132PX-ON, S4048-ON, X1026, X1026P, X1052, X1052P |
