HDBaseT receiver / switcher / audio disembedder
| Main Specifications | |
|---|---|
| Product Description | WyreStorm SW-515-RX HDBaseT receiver / switcher / audio disembedder |
| Type | HDBaseT receiver / switcher / audio disembedder |
| Dimensions (WxDxH) | 8.7 in - 5.9 in - 1.7 in |
| Weight | 33.51 oz |
| General | |
| Type | HDBaseT receiver / switcher / audio disembedder |
| Width | 8.7 in |
| Depth | 5.9 in |
| Height | 1.7 in |
| Weight | 33.51 oz |
| Power | |
| Power Consumption | 16.25 Watt |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x power adapter ¦ (1) x IR transmitter ¦ (2) x rack mount brackets |
| Terminals | |

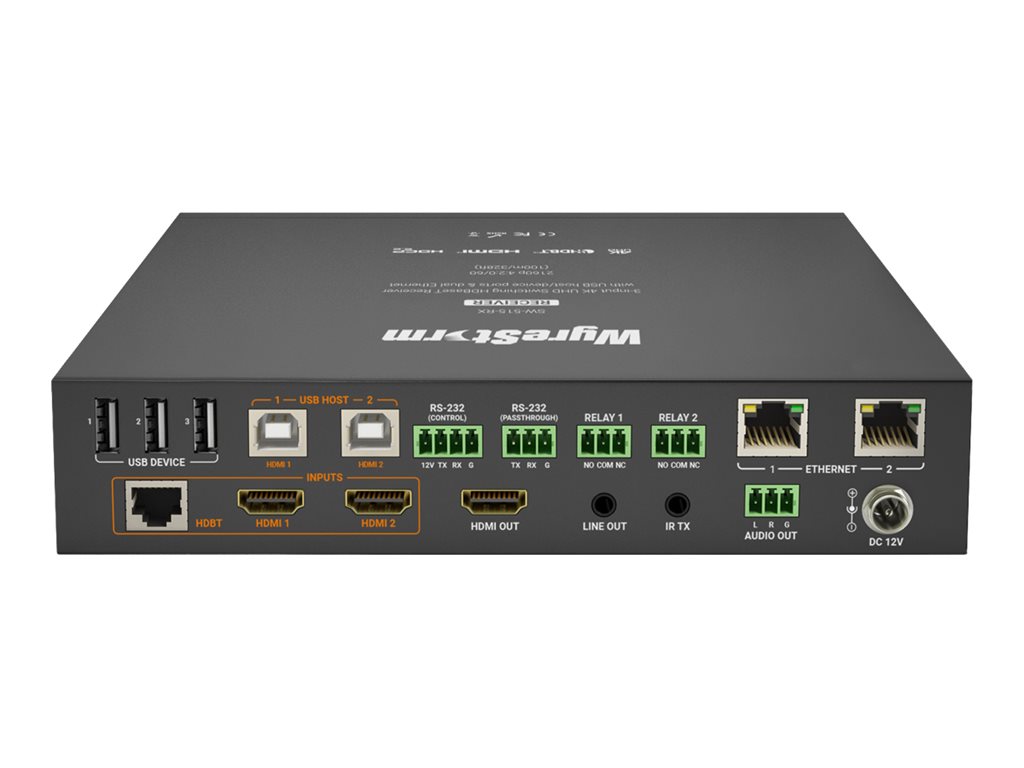

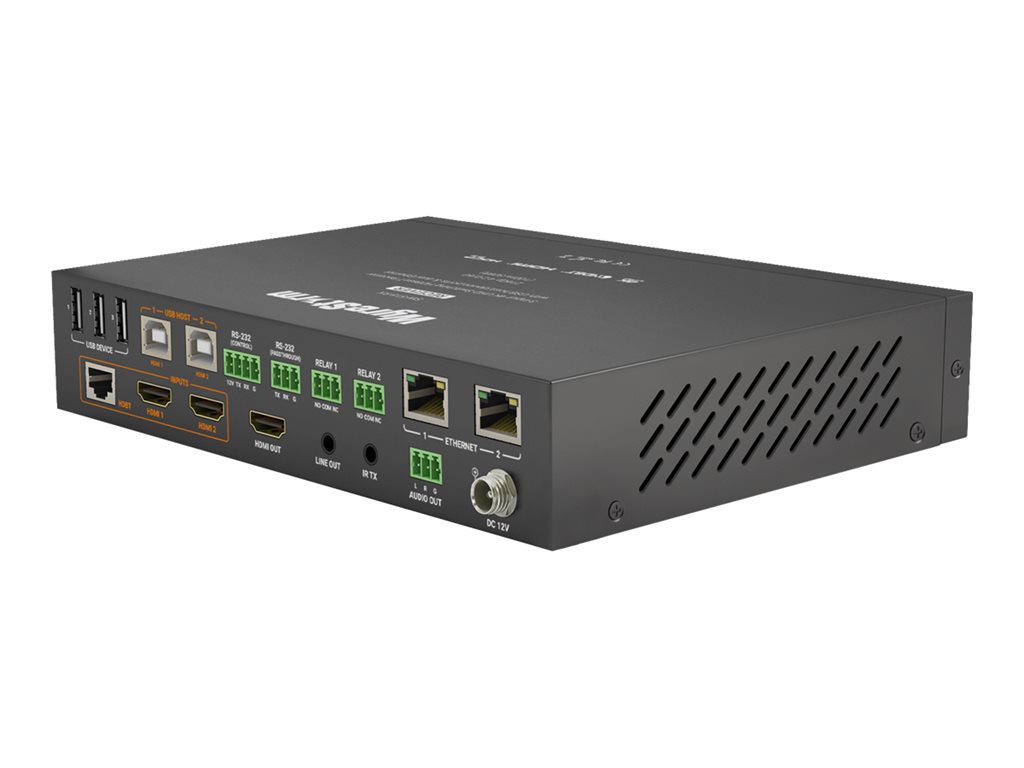

| Terminals | (1) x HDBaseT input - RJ-45 ¦ (1) x HDMI input - 19 pin HDMI Type A ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x audio line-out - mini-phone stereo 3.5 mm ¦ (1) x audio output - 3 pin Phoenix type ¦ (1) x infrared output - mini-phone 3.5 mm ¦ (2) x relay - 3 pin Phoenix type ¦ (2) x serial - 3 pin Phoenix type - RS-232 ¦ (2) x network - RJ-45 - Ethernet ¦ (2) x USB Host - 4 pin USB type B ¦ (3) x USB 2.0 - 4 pin USB type A |
| Studio & Production Equipment | |
| Features | EDID support, HDCP 2.2 compliant, 4K60 4:2:0 signal support, CEC triggering |
