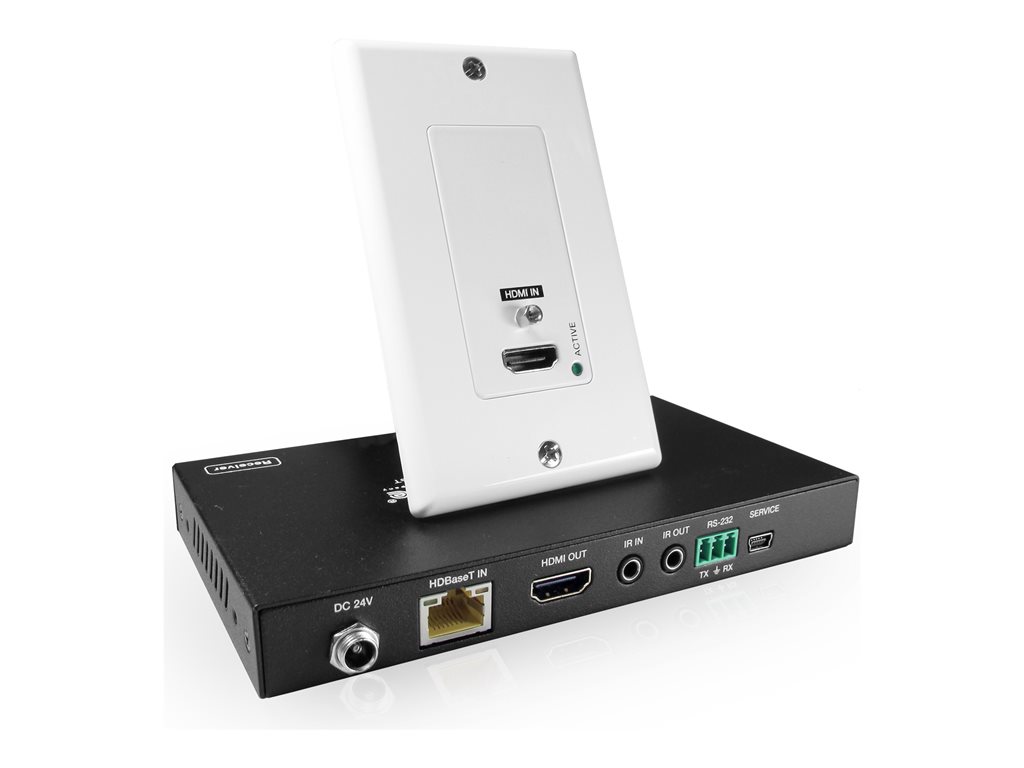

Extender Kit - video/audio/infrared/serial/network extender - RS-232, HDMI, HDBaseT - up to 230 ft
| Main Specifications | |
|---|---|
| Product Description | Comprehensive Pro AV/IT Integrator Series - Extender Kit - video/audio/infrared/serial/network extender - RS-232, HDMI, HDBaseT |
| Device Type | Video/audio/infrared/serial/network extender |
| Form Factor | External |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | RS-232, HDMI, HDBaseT |
| Max Transfer Distance | 230 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 8.7 in x 6.8 in x 1.5 in |
| Weight | 32 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial/network extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input (transmitter) - 19 pin HDMI Type A female ¦ 1 x IR (transmitter input) - 2 pin Phoenix ¦ 1 x RS-232 (transmitter input) - 3 pin Phoenix ¦ 1 x HDBaseT (receiver input) - RJ-45 ¦ 1 x IR (receiver) - mini jack ¦ 1 x RS-232 (receiver) - 3 pin Phoenix ¦ 1 x mini-USB (receiver) ¦ 1 x HDBaseT (transmitter output) - RJ-45 ¦ 1 x HDMI (receiver output) - 19 pin HDMI Type A ¦ 1 x IR (receiver output) - mini jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 2 screws, power adapter, single-gang faceplate, 2 x 3-pin Phoenix connector, 2 x 2-pin Phoenix connector |
| Cables Included | 1 x IR blaster cable ¦ 1 x IR extender cable |
| Compliant Standards | UL, FCC, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, HDMI, HDBaseT |
| Data Transfer Rate | 18 Gbps |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Features | Metal housing, 12-bit Deep Color support, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, bidirectional, DTS support, DTS-HD support, LPCM 5.1 support, Dolby Digital support, HDR 4K60 4:4:4 compatible, 10-bit Deep Color support, LPCM 2.0 support, CEC support |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 10 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 6.8 in |
| Height | 1.5 in |
| Weight | 32 oz |
