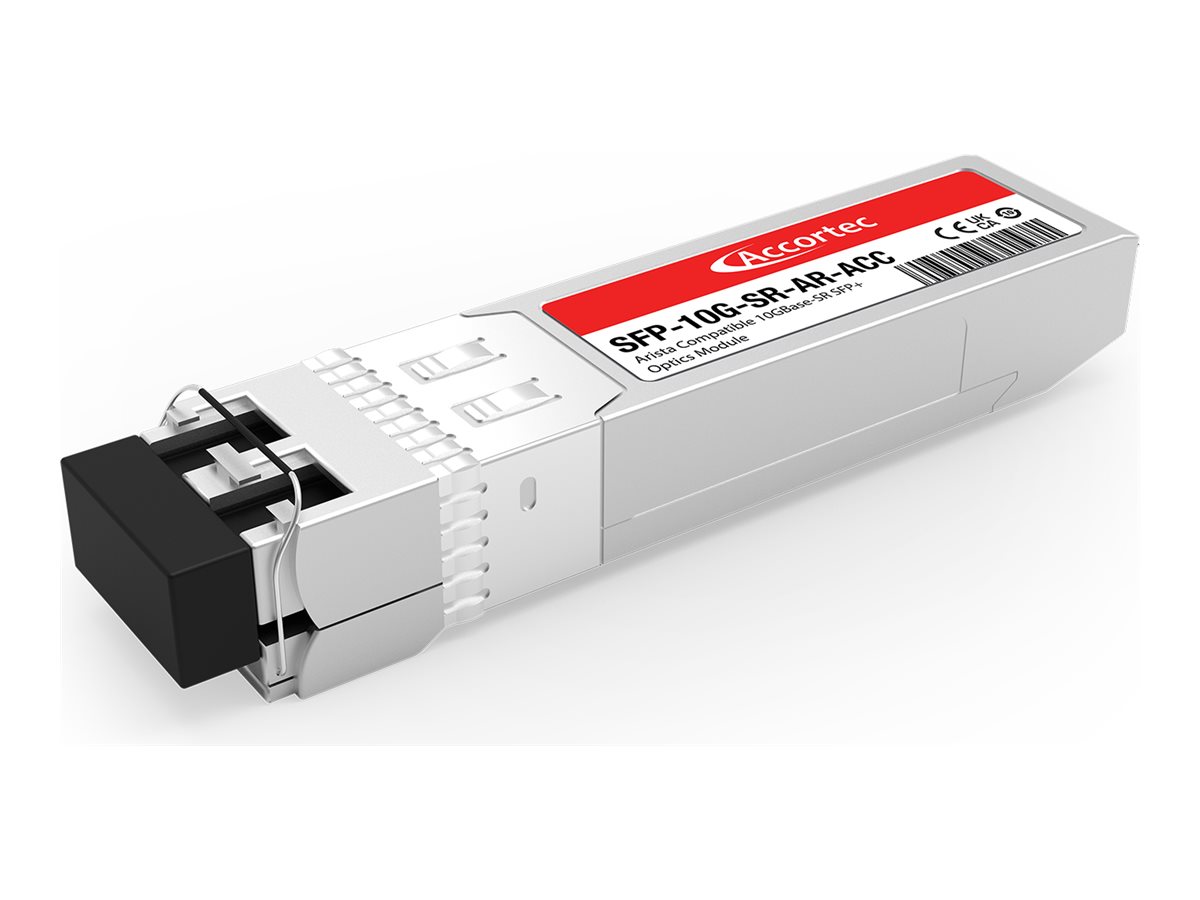

SFP+ transceiver module - 10GbE - 10GBase-SW, 10GBase-SR - LC multi-mode - up to 984 ft - 850 nm
| Main Specifications | |
|---|---|
| Product Description | Accortec - SFP+ transceiver module - 10GbE |
| Device Type | SFP+ transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-SW, 10GBase-SR |
| Data Transfer Rate | 10.7 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 984 ft |
| Dimensions (WxDxH) | 0.5 in x 2.3 in x 0.5 in |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-SW/10GBase-SR (duplex) - LC multi-mode x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | MSA SFF-8431, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-SW, 10GBase-SR |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10.7 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 984 ft |
| Features | Arista compatible, Vertical Cavity Surface Emitting Laser (VCSEL), Digital Diagnostic Function (DMI), Bi-Directional (BiDi) |
| Compliant Standards | IEEE 802.3ae |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.3 in |
| Height | 0.5 in |
