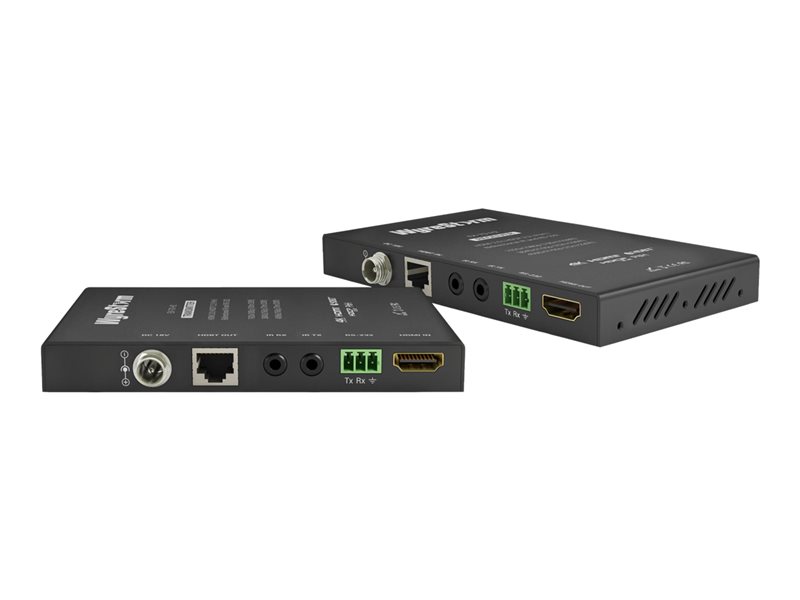

Video/audio/infrared/serial extender - HDBaseT - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | WyreStorm 4K UHD HDBaseT Extender Set with 2-way PoH and Bidirectional IR & RS-232 - video/audio/infrared/serial extender - HDBaseT |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Localization | United Kingdom, United States, Europe |
| Data Link Protocol | HDBaseT |
| Max Transfer Distance | 328 ft |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 5.5 in x 3.6 in x 0.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Localization | United Kingdom, United States, Europe |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI - 19 pin HDMI Type A ¦ 1 x RS-232 - terminal block ¦ 1 x IrDA (output) - mini jack ¦ 1 x IrDA (input) - mini jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 2 x IR receivers, 2 x IR transmitters |
| Mounting Kit | Included |
| Compliant Standards | RoHS, FCC, EDID compatible |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Transfer Distance | 328 ft |
| Features | HDCP compliant, 4K resolution support, HDBaseT technology, DTS:X support, Dolby Atmos support, 7.1 channel audio support, power over HDBaseT (PoH), 3D support, HDR 4K60 10-bit 4:2:0 compatible |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 26.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.5 in |
| Depth | 3.6 in |
| Height | 0.7 in |
