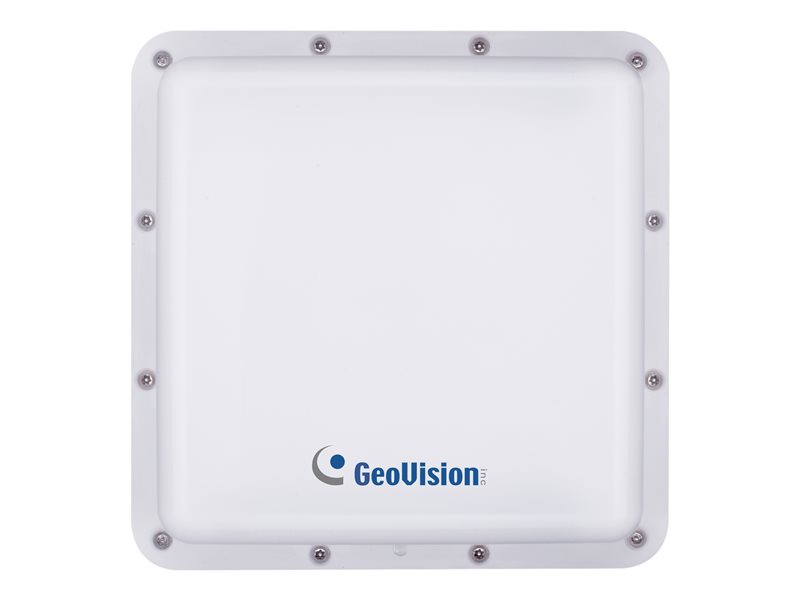

RFID reader - SIA 34-bit Wiegand - 902-928 MHz
| Main Specifications | |
|---|---|
| Product Description | GeoVision GV-RU9003 - RFID reader - SIA 34-bit Wiegand |
| Device Type | RFID reader - contactless |
| Interface Type | SIA 34-bit Wiegand |
| Frequency | 902-928 MHz |
| Dimensions (WxDxH) | 9 in x 2.1 in x 9 in |
| Weight | 18.69 oz |
| Included Input Adapter Accessories | Mounting kit |
| Power | DC 9 - 15 V |
| General | |
| Device Type | RFID reader - contactless |
| Interface Type | SIA 34-bit Wiegand |
| Frequency | 902-928 MHz |
| Width | 9 in |
| Depth | 2.1 in |
| Height | 9 in |
| Weight | 18.69 oz |
| Expansion / Connectivity | |
| Connections | 1 x SIA 64-bit Wiegand |
| Miscellaneous | |
| OK Notification | LED indicator |
| Included Accessories | Mounting kit |
| Compliant Standards | FCC, IP56 |
| Power | |
| Voltage Required | DC 9 - 15 V |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 90% |
| Magnetic Card Reader | |
| Recording Standard | ISO 18000-6C |
