Network panoramic camera - multi-sensor + pan / tilt / zoom - dome - ingress protection / vandal resistant - color (Day&Night) - 14 MP - 4000 x 3000 - audio - Ethernet 10Base-T/100Base-T - H.265, H.264, MJPEG - DC 24 V / AC 24 V / PoE++
| Main Specifications | |
|---|---|

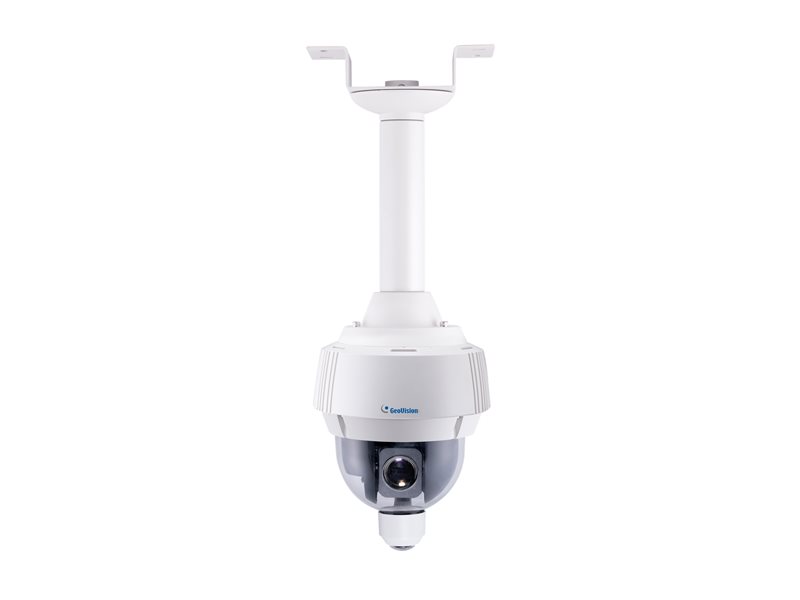

| Product Description | GeoVision GV-PPTZ14031 - network panoramic camera - dome |
| Device Type | Network panoramic camera - multi-sensor + pan / tilt / zoom - dome - ingress protection / vandal resistant |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 8.3 in x 8.3 in x 10.9 in |
| Weight | 7.28 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 30 x |
| Max Resolution | 4000 x 3000 |
| Frame Rate (max) | 50 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | 14 MP |
| Optical Sensor Type | PS CMOS - 1/1.7" - 12 MP ¦ PS CMOS - 1/3" - 2 MP |
| Lens System | Fixed focal - 1.505 mm - focus free adjustment - f/2.0 - fixed iris ¦ Motorized zoom - 4.3 mm - 129 nm - automatic adjustment - f/1.6 - auto and manual iris |
| Minimum Illumination | 0.1 lux - color ¦ 0.5 lux - color, PTZ ¦ 0.05 lux - B&W ¦ 0.1 lux - B&W, PTZ |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | -15 to +195 |
| Interfaces | Ethernet 10Base-T/100Base-T |
| Cables Included | 1 - data cable - external |
| Voltage | DC 24 V / AC 24 V / PoE++ |
| Features | Low lux, Wide Dynamic Range (WDR) Pro, fisheye lens, auto white balance, auto gain control, infrared-cut filter, dual video stream, Backlight Compensation (BLC), flickerless, metering control, ONVIF (Profile S) support, temperature detector, 255 preset positions, auto pan function, cruise function, privacy masking (up to 8 areas), mechanical flip, digital slow shutter (DSS), image flip, image freeze, 2D Noise Reduction Technology, heater, tampering alarm, Privacy Mask Function, Visual Automation, text overlay |
| Environmental Parameters (operating) | -40 °F - 122 °F; 10 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Network panoramic camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.711, AAC |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 8.3 in |
| Depth | 8.3 in |
| Height | 10.9 in |
| Weight | 7.28 lbs |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 ¦ Audio line in - RCA ¦ Audio line out - RCA |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC UHS-I Card |
| Miscellaneous | |
| Included Accessories | Pendant tube, hex key (3mm), hex key (4mm), hex key (5mm), rubber ring, torx wrench, RJ-45 connector, 2 desiccants |
| Cables Included | 1 x data cable - external |
| Compliant Standards | IP67, IK10, FCC, RCM, RoHS |
| Power | |
| Power Requirements | DC 24 V / AC 24 V / PoE++ - 3.75 A |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - multi-sensor + pan / tilt / zoom - ingress protection / vandal resistant |
| Digital Video Format | H.265, H.264, MJPEG |
| Max Digital Video Resolution | 4000 x 3000 |
| Motion Detection | Yes |
| Minimum Illumination | 0.1 lux - color ¦ 0.5 lux - color, PTZ ¦ 0.05 lux - B&W ¦ 0.1 lux - B&W, PTZ |
| Video Capture | 4000 x 3000 @ 15 fps ¦ 2896 x 2768 @ 25 fps ¦ 1920 x 1080, 60 Hz @ 30 fps ¦ 1920 x 1080, 50 Hz @ 50 fps |
| Features | Low lux, Wide Dynamic Range (WDR) Pro, fisheye lens, auto white balance, auto gain control, infrared-cut filter, dual video stream, Backlight Compensation (BLC), flickerless, metering control, ONVIF (Profile S) support, temperature detector, 255 preset positions, auto pan function, cruise function, privacy masking (up to 8 areas), mechanical flip, digital slow shutter (DSS), image flip, image freeze, 2D Noise Reduction Technology, heater, tampering alarm, Privacy Mask Function, Visual Automation, text overlay |
| Lens Construction | |
| Lens System | Fixed focal - 1.505 mm - focus free adjustment - f/2.0 - fixed iris - 180° (H) ¦ Motorized zoom - 4.3 mm - 129 nm - automatic adjustment - f/1.6 - auto and manual iris - 2.11-58.9° (H) |
| Optical Zoom | 30 x |
| Image Sensor | |
| Type | 14 MP |
| Type | 12 MP PS CMOS 1/1.7", 4000 x 3000 (total) ¦ 2 MP PS CMOS 1/3", 1920 x 1080 (total) |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-T |
| Network Protocols | DHCP, DNS, DDNS, FTP, HTTP, HTTPS, ICMP, IPv4, NTP, DSCP, RTCP, RTSP, SNMP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA |
| Alarm Inputs Qty | 4 |
| Alarm Outputs Qty | 1 |
| Panning | |
| Range (degree) | 360 |
| Tilting | |
| Range (degree) | -15 to +195 |
