NVR - 16 channels 2 TB - networked - rack-mountable
| Main Specifications | |
|---|---|

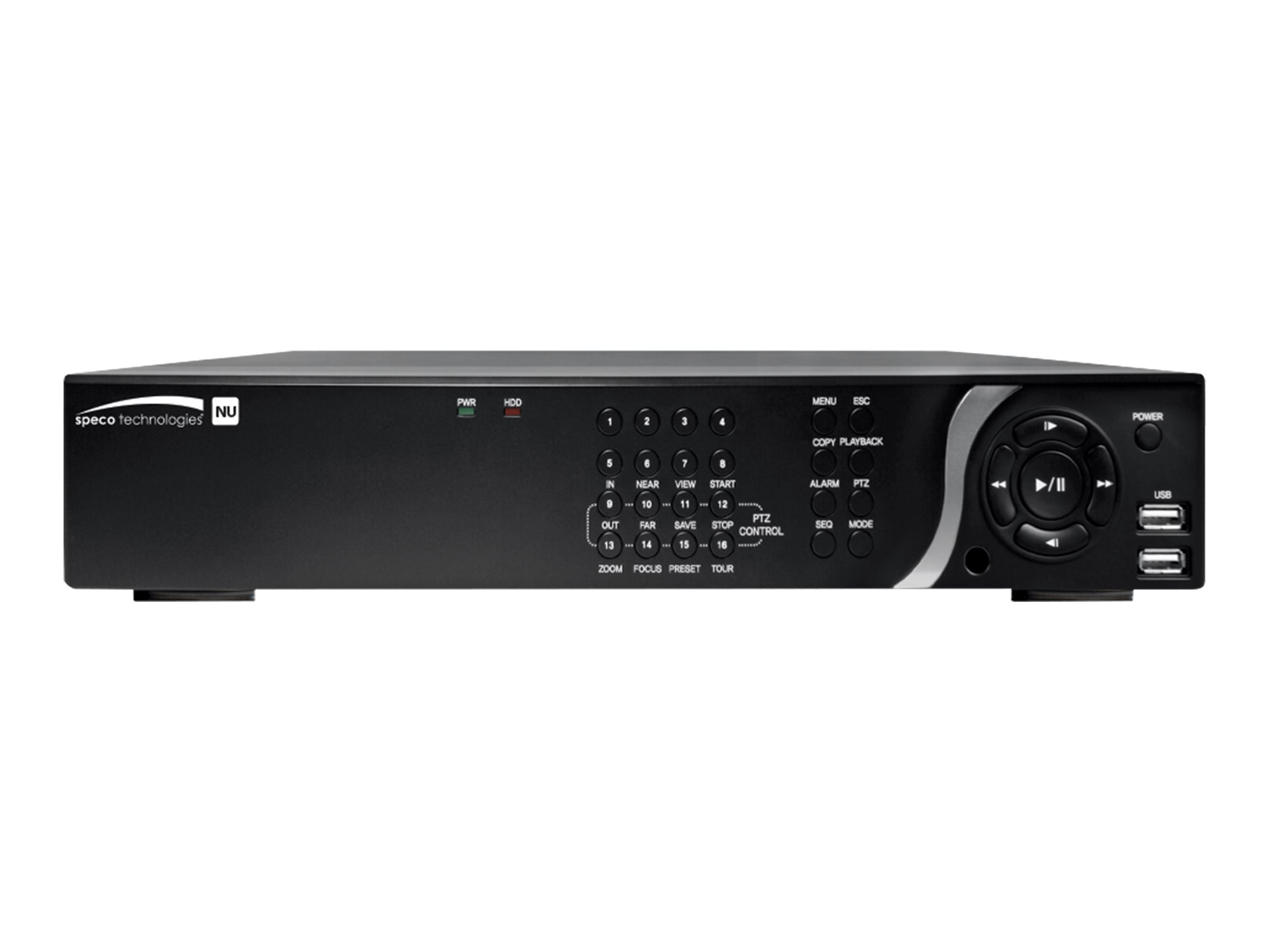

| Product Description | Speco N16NU - standalone NVR - 16 channels |
| Device Type | NVR - 16 channels - networked - rack-mountable |
| Frame Rate | 30 fps |
| Compression Format | G.711, H.264, H.265 |
| Image Resolution | 1920x1080, 3840x2160 |
| Hard Drive | 2 TB |
| Hard Drive(s) Supported | Quantity: 4 - total capacity: 40 TB |
| Voltage | 100 - 240 V |
| Dimensions (WxDxH) | 15 in x 13.4 in x 2.8 in |
| Manufacturer Warranty | 5 years |
| General | |
| Device Type | NVR - rack-mountable |
| Video Channels | 16 |
| Audio Channels | 16 |
| Image Resolution | 1920x1080, 3840x2160 |
| Compression Format | G.711, H.264, H.265 |
| Package Content | Remote control, mouse, NVR, rack ears |
| Software Included (Y) | Drivers & Utilities |
| Compliant Standards | Plug and Play, UL, NSF |
| Warranty | 5 years |
| Networking | |
| DDNS Support | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | DDNS, DHCP, NTP, HTTPS, SSL |
| Features | Power over Ethernet (PoE), ALERT notification, firmware upgradable, ONVIF support, mobile users support, event notification, Network Timing Protocol (NTP) |
| Power | |
| Voltage | 100 - 240 V |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Hard Drive | |
| Quantity Supported | 4 |
| Capacity | 2 TB |
| Interface | Serial ATA |
| Supported Max Total Capacity | 40 TB |
| Connections | |
| Video Output Ports | HDMI x 1, BNC x 1, VGA x 1 |
| Audio Input Ports | RCA x 16 |
| Audio Output Ports | RCA x 1 |
| Alarm Ports | Alarm output x 1, alarm input x 4 |
| Camera Control Interface (PTZ) | RS-485 |
| Network Port | 10/100/1000Base-T |
| Other Ports | eSATA x 1, USB x 3, RJ-45 x 16 (POE+) |
| Dimensions & Weight | |
| Width | 15 in |
| Depth | 13.4 in |
| Height | 2.8 in |
| Security DVR | |
| Frame Rate (Record) | 30 fps |
| Video Recording Resolution | 1920x1080, 3840x2160 |
| Playback Search | Date/time, smart, archive, log |
| Record Events | Motion detection, scheduled, manual, continuous |
| Networked | Yes |
| Features | RAID 5 support, RAID 10 support, RAID 1 support, Pan/Tilt/Zoom support, motion detection, smartphone support, Digital Deterrent, event notification |
